23 Series
Manufacturer: Murata Electronics
Beta
⌘K

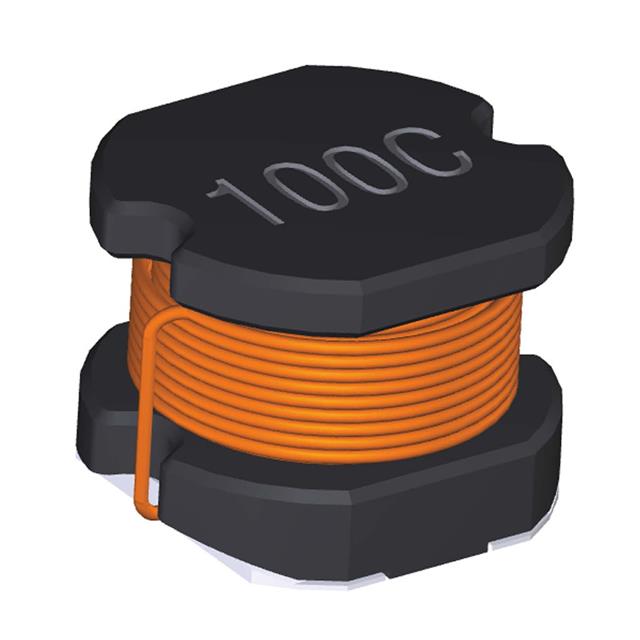

POWER INDUCTOR (SMD), 3.3 ΜH, 1.8 A, UNSHIELDED, 1.8 A, 2300 SERIES
| Part | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | DC Resistance (DCR) [Max] | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Inductance | Mounting Type | Inductance Frequency - Test | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 1.8 A | 0.126 in | 3.2 mm | 58 mOhm | Wirewound | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Unshielded | 85 °C | -40 C | Nonstandard | 3.3 µH | Surface Mount | 1 kHz | |
Murata Electronics | 1.48 A | 0.126 in | 3.2 mm | 68 mOhm | Wirewound | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Unshielded | 85 °C | -40 C | Nonstandard | 4.7 ÁH | Surface Mount | 1 kHz | |
 Murata Electronics | 1.22 A | 0.126 in | 3.2 mm | Wirewound | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Unshielded | 85 °C | -40 C | Nonstandard | 6.8 µH | Surface Mount | 1 kHz | 102 mOhm | |
Murata Electronics | 1.02 A | 0.126 in | 3.2 mm | 138 mOhm | Wirewound | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Unshielded | 85 °C | -40 C | Nonstandard | 10 µH | Surface Mount | 1 kHz | |
Murata Electronics | 0.86 A | 0.126 in | 3.2 mm | 210 mOhm | Wirewound | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Unshielded | 85 °C | -40 C | Nonstandard | 15 µH | Surface Mount | 1 kHz | |
Murata Electronics | 490 mA | 0.126 in | 3.2 mm | Wirewound | 0.157 " | 0.177 in | 4.5 mm | 4 mm | Unshielded | 85 °C | -40 C | Nonstandard | 68 µH | Surface Mount | 1 kHz | 1.051 Ohm |
