CBJR Series

Catalog

CONN TRB JACK R/A PCB

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Center Contact Plating	Body Material	Body Finish	Center Contact Material	Shield Termination	Number of Ports	Housing Color	Fastening Type	Connector Style	Frequency - Max [Max]	Contact Termination	Impedance	Mounting Type	Features	Connector Type	Dielectric Material	Impedance

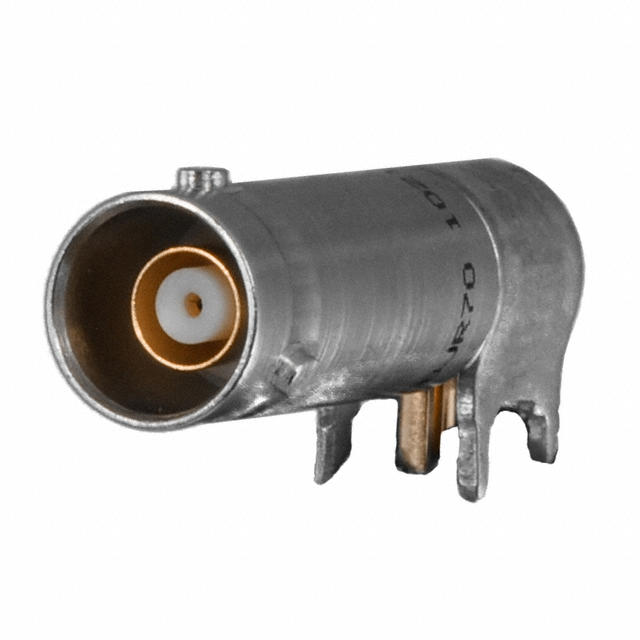

Cinch Connectivity Solutions Trompeter CBJR70	400 V	-65 ░C	165 °C	500	Gold	Brass	Nickel	Beryllium Copper	Solder	1	Silver	Bayonet Lock	TRB Twinaxial/Triaxial	500 MHz	Solder	Non-Constant	Right Angle Through Hole	Three Lug	Jack Female Socket (Concentric)

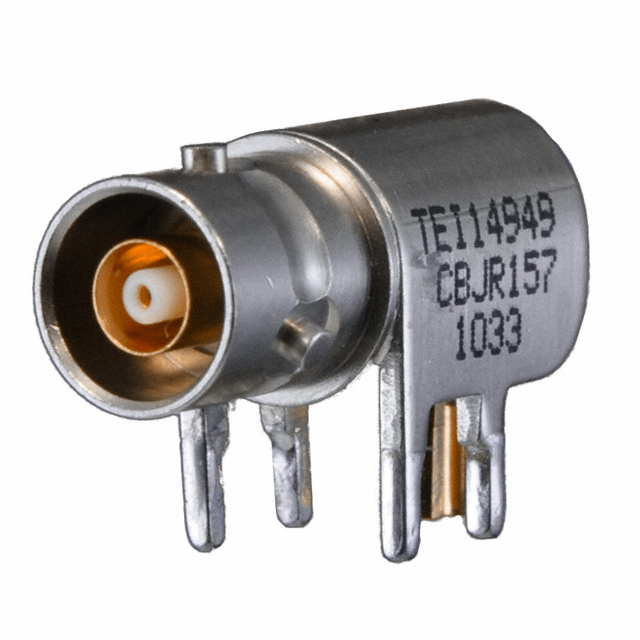

Cinch Connectivity Solutions Trompeter CBJR157	400 V	-65 ░C	200 °C	500	Gold	Brass	Nickel	Beryllium Copper	Solder	1	Silver	Bayonet Lock	TRS Twinaxial/Triaxial	500 MHz	Solder	Non-Constant	Right Angle Through Hole	Three Lug	Female Socket Jack
Cinch Connectivity Solutions Trompeter CBJR20A	500 V	-65 ░C	165 °C		Gold	Brass	Nickel		Solder	1	Silver	Bayonet Lock	BNC	4 GHz	Solder		Right Angle Through Hole		Female Socket Jack	Polytetrafluoroethylene (PTFE)	50 Ohms
Cinch Connectivity Solutions Trompeter CBJR20	500 V	-65 ░C	165 °C		Gold	Brass	Nickel		Solder	1	Silver	Bayonet Lock	BNC	4 GHz	Solder		Right Angle Through Hole	Board Guide	Female Socket Jack		50 Ohms

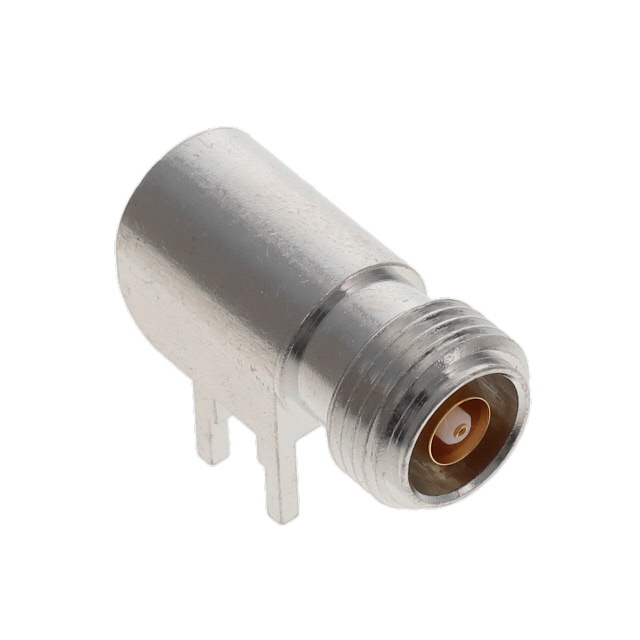

Cinch Connectivity Solutions Trompeter CBJR3157	400 V	-65 ░C	200 °C		Gold	Brass	Nickel	Beryllium Copper	Solder	1	Silver	Threaded	TTM Twinaxial/Triaxial	500 MHz	Solder	Non-Constant	Right Angle Through Hole		Jack Female Socket (Concentric)
