317-032 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 32POS 0.156

Part	Material - Insulation	Color	Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Gender	Read Out	Contact Type	Mounting Type	Number of Rows [custom]	Pitch	Pitch	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions	Features

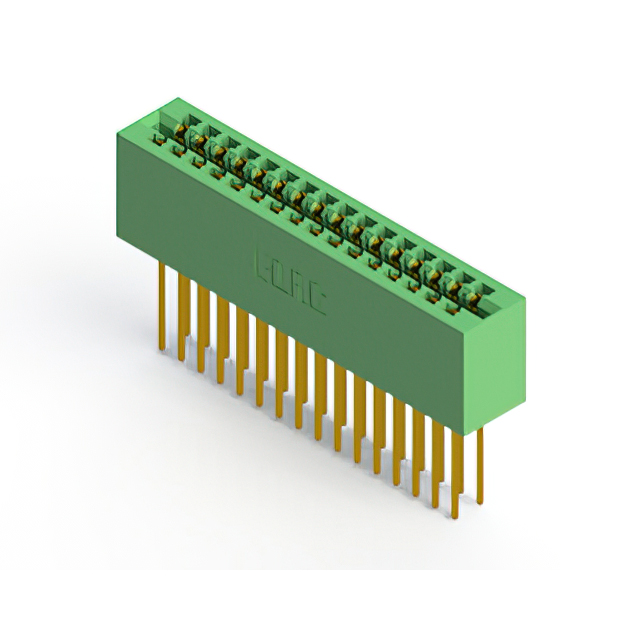

EDAC Inc. 317-032-542-801	Diallyl Phthalate (DAP)	Green	Wire Wrap	Gold	0.25 Ám	10 Áin	-65 ░C	125 °C	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Female	Dual	Cantilever	Through Hole	2	3.96 mm	0.156 in
EDAC Inc. 317-032-540-807	Diallyl Phthalate (DAP)	Green	Wire Wrap	Gold	0.25 Ám	10 Áin	-65 ░C	125 °C	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Female	Dual	Cantilever	Through Hole	2	3.96 mm	0.156 in	M3 Threaded Insert Top Mount Opening

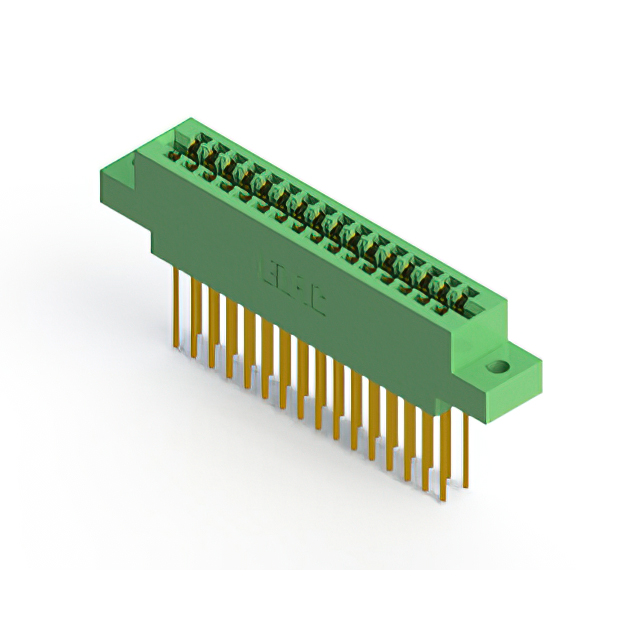

EDAC Inc. 317-032-540-804	Diallyl Phthalate (DAP)	Green	Wire Wrap	Gold	0.25 Ám	10 Áin	-65 ░C	125 °C	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Female	Dual	Cantilever	Through Hole	2	3.96 mm	0.156 in		0.156 "	3.96 mm
EDAC Inc. 317-032-541-604	Diallyl Phthalate (DAP)	Green	Wire Wrap	Gold	0.25 Ám	10 Áin	-65 ░C	125 °C	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	Female	Single	Cantilever	Through Hole	2	3.96 mm	0.156 in		0.156 "	3.96 mm	64
EDAC Inc. 317-032-542-802	Diallyl Phthalate (DAP)	Green	Wire Wrap	Gold	0.25 Ám	10 Áin	-65 ░C	125 °C	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Female	Dual	Cantilever	Through Hole	2	3.96 mm	0.156 in
EDAC Inc. 317-032-541-607	Diallyl Phthalate (DAP)	Green	Wire Wrap	Gold	0.25 Ám	10 Áin	-65 ░C	125 °C	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	Female	Single	Cantilever	Through Hole	2	3.96 mm	0.156 in	M3 Threaded Insert Top Mount Opening			64
EDAC Inc. 317-032-542-878	Diallyl Phthalate (DAP)	Green	Wire Wrap	Gold	0.25 Ám	10 Áin	-65 ░C	125 °C	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Female	Dual	Cantilever	Through Hole	2	3.96 mm	0.156 in	4-40 Threaded Insert Top Mount Opening				Card Guides

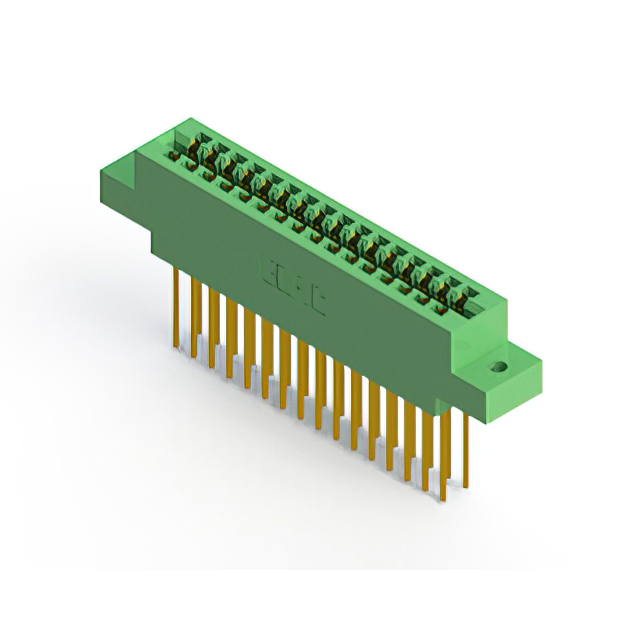

EDAC Inc. 317-032-540-802	Diallyl Phthalate (DAP)	Green	Wire Wrap	Gold	0.25 Ám	10 Áin	-65 ░C	125 °C	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Female	Dual	Cantilever	Through Hole	2	3.96 mm	0.156 in
EDAC Inc. 317-032-542-803	Diallyl Phthalate (DAP)	Green	Wire Wrap	Gold	0.25 Ám	10 Áin	-65 ░C	125 °C	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Female	Dual	Cantilever	Through Hole	2	3.96 mm	0.156 in	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 317-032-541-608	Diallyl Phthalate (DAP)	Green	Wire Wrap	Gold	0.25 Ám	10 Áin	-65 ░C	125 °C	Non Specified - Dual Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	32	Female	Single	Cantilever	Through Hole	2	3.96 mm	0.156 in	4-40 Threaded Insert Top Mount Opening			64
