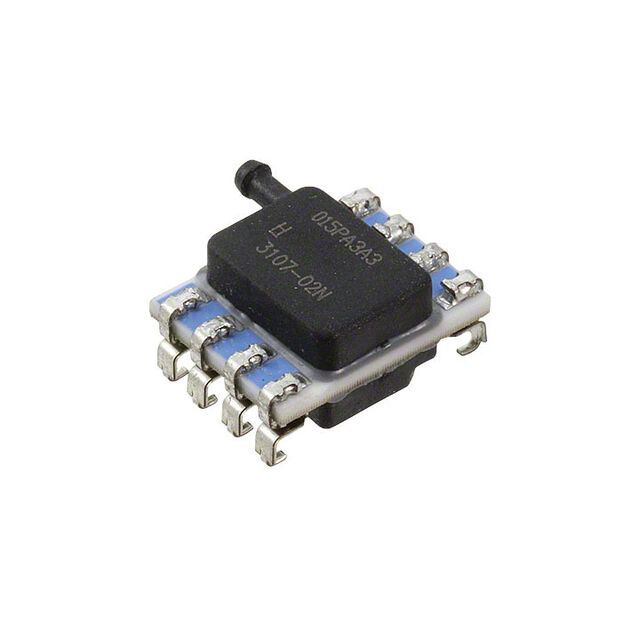

SSCMRNN Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
TRUSTABILITY PRESSURE SENSOR
| Part | Accuracy | Package / Case | Operating Pressure | Operating Pressure | Termination Style | Supplier Device Package | Port Style | Voltage - Supply [Max] | Voltage - Supply [Min] | Output [Max] | Output [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Port Size | Port Size | Port Size | Mounting Type | Maximum Pressure [Max] | Maximum Pressure [Max] | Applications | Features | Maximum Pressure | Maximum Pressure | Output | Pressure Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||||||
 Honeywell Sensing and Productivity Solutions | 0.25 % | 8-SMD J-Lead Side Port | 15 PSI | 103.42 kPa | SMD (SMT) Tab | 8-SMT | Barbed | 3.6 V | 3 V | 2.97 V | 0.33 V | 85 °C | -40 C | Analog Voltage | 1.93 mm | Male Tube | 0.08 " | Surface Mount | 206.84 kPa | 30 PSI | Board Mount | Amplified Output Temperature Compensated | ||||
 Honeywell Sensing and Productivity Solutions | 0.25 % | 8-SMD J-Lead Side Port | 14.5 PSI | 1 bar | SMD (SMT) Tab | 8-SMT | Barbed | 5.25 V | 4.75 V | 85 °C | -40 C | SPI | 1.93 mm | Male Tube | 0.08 " | Surface Mount | Board Mount | Amplified Output Temperature Compensated | 29.01 PSI | 200 kPa | 12 b | |||||
 Honeywell Sensing and Productivity Solutions | 0.25 % | 8-SMD J-Lead Side Port | 5 PSI | 34.47 kPa | SMD (SMT) Tab | 8-SMT | Barbed | 3.6 V | 3 V | 85 °C | -40 C | SPI | 1.93 mm | Male Tube | 0.08 " | Surface Mount | Board Mount | Amplified Output Temperature Compensated | 30 PSI | 206.84 kPa | 12 b | Differential | ||||
Honeywell Sensing and Productivity Solutions | 0.25 % | 8-SMD J-Lead Side Port | 15 PSI | 103.42 kPa | SMD (SMT) Tab | 8-SMT | Barbed | 3.6 V | 3 V | 85 °C | -40 C | I2C | 1.93 mm | Male Tube | 0.08 " | Surface Mount | 206.84 kPa | 30 PSI | Board Mount | Amplified Output Temperature Compensated | 12 b | |||||
Honeywell Sensing and Productivity Solutions | 0.25 % | 8-SMD J-Lead Side Port | 0.58 PSI 4 kPa | SMD (SMT) Tab | 8-SMT | Barbed | 3.33 V | 3.27 V | 85 °C | -40 C | I2C | 1.93 mm | Male Tube | 0.08 " | Surface Mount | Board Mount | Amplified Output Temperature Compensated | 12.33 PSI | 85 kPa | 12 b | Differential | |||||
Honeywell Sensing and Productivity Solutions | 0.25 % | 8-SMD J-Lead Side Port | 8.7 PSI | 60 kPa | SMD (SMT) Tab | 8-SMT | Barbed | 5.25 V | 4.75 V | 4.5 V | 0.5 V | 85 °C | -40 C | Analog Voltage | 1.93 mm | Male Tube | 0.08 " | Surface Mount | Board Mount | Amplified Output Temperature Compensated | 29.01 PSI | 200 kPa | Differential | |||
Honeywell Sensing and Productivity Solutions | 0.25 % | 8-SMD J-Lead Side Port | 100 PSI | 689.48 kPa | SMD (SMT) Tab | 8-SMT | Barbed | 5.25 V | 4.75 V | 85 °C | -40 C | I2C | 1.93 mm | Male Tube | 0.08 " | Surface Mount | Board Mount | Amplified Output Temperature Compensated | 250 PSI | 1723.69 kPa | 12 b | Vented Gauge | ||||
Honeywell Sensing and Productivity Solutions | 0.25 % | 8-SMD J-Lead Side Port | 5 PSI | 34.47 kPa | SMD (SMT) Tab | 8-SMT | Barbed | 5.25 V | 4.75 V | 85 °C | -40 C | I2C | 1.93 mm | Male Tube | 0.08 " | Surface Mount | 206.84 kPa | 30 PSI | Board Mount | Amplified Output Temperature Compensated | 12 b | Vented Gauge |
