146506 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

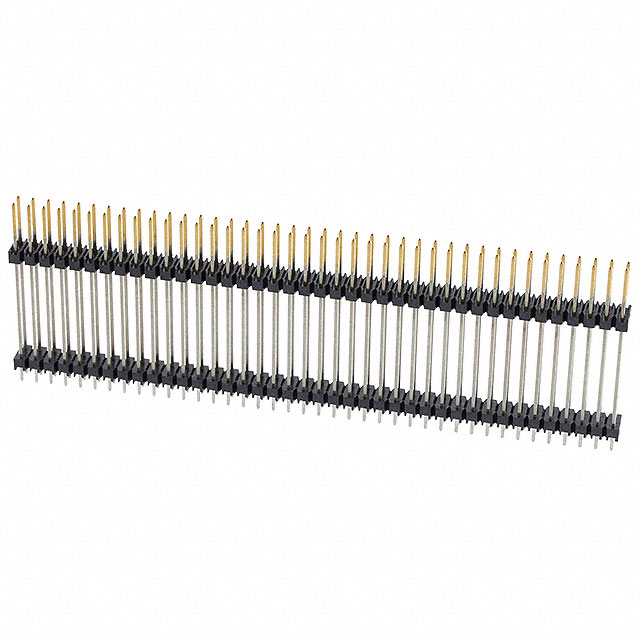

CONN HDR 80POS 0.1 STACK T/H
| Part | Length - Overall Pin [x] | Length - Overall Pin [x] | Contact Finish Thickness - Post (Mating) [custom] | Contact Finish Thickness - Post (Mating) [custom] | Number of Positions | Length - Post (Mating) [x] | Length - Post (Mating) [x] | Mounting Type | Color | Pitch | Pitch | Length - Stack Height [custom] | Length - Stack Height [custom] | Number of Rows [custom] | Row Spacing | Row Spacing | Length - Tail [x] | Length - Tail | Termination | Contact Finish - Post (Mating) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 33.782 mm | 1.33 in | 0.38 Ám | 15 Áin | 80 | 8.382 mm | 0.33 in | Through Hole | Black | 0.1 " | 2.54 mm | 0.9 in | 22.86 mm | 2 | 2.54 mm | 0.1 " | 0.1 in | 2.54 mm | Solder | Gold |
