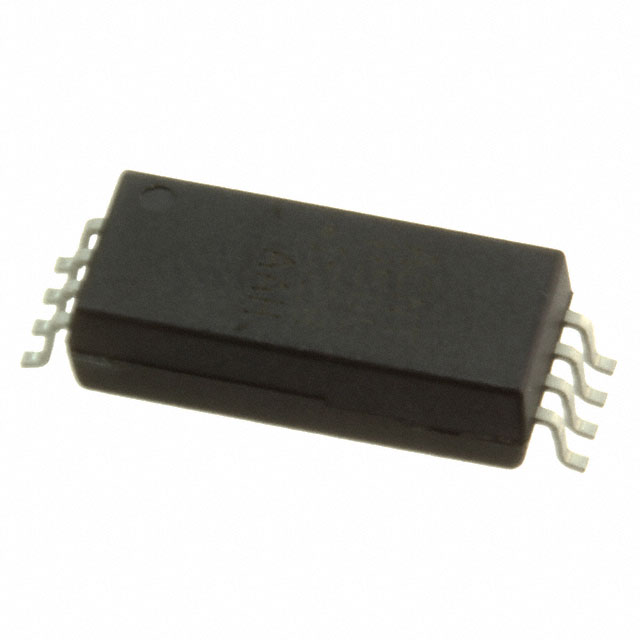

ACNT-H511 Series
Manufacturer: Broadcom Limited
Beta
⌘K
15MM OPTOCOUPLER (1MBD)
| Part | Current - DC Forward (If) (Max) [Max] | Package / Case | Current Transfer Ratio (Max) [Max] | Input Type | Voltage - Forward (Vf) (Typ) | Mounting Type | Supplier Device Package | Turn On / Turn Off Time (Typ) [custom] | Turn On / Turn Off Time (Typ) [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Voltage - Output (Max) [Max] | Current - Output / Channel | Number of Channels [custom] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 20 mA | 8-SOIC (0.535" 13.60mm Width) | 80 % | DC | 1.45 V | Surface Mount | 8-SO Stretched | 150 ns | 400 ns | -40 C | 105 ░C | 7500 Vrms | 24 V | 12 mA | 1 | Transistor |
Broadcom Limited | 20 mA | 8-SOIC (0.535" 13.60mm Width) | 80 % | DC | 1.45 V | Surface Mount | 8-SO Stretched | -40 C | 105 ░C | 7500 Vrms | 24 V | 12 mA | 1 | Transistor with Base | ||
Broadcom Limited | 20 mA | 8-SOIC (0.535" 13.60mm Width) | 80 % | DC | 1.45 V | Surface Mount | 8-SO Stretched | -40 C | 105 ░C | 7500 Vrms | 24 V | 12 mA | 1 | Transistor with Base |
