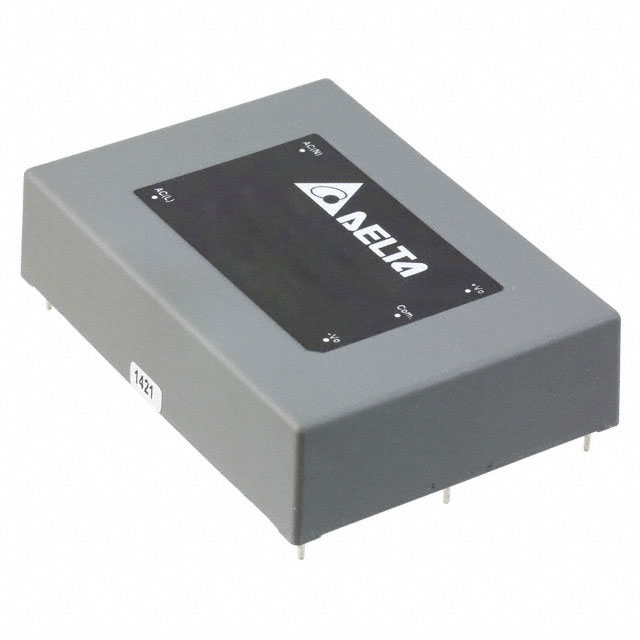

AA30D Series

Catalog

AC/DC CONVERTER +/-15V 30W

Part	Load Regulation	Weight	Weight	Line Regulation	Applications	Number of Outputs	Standard Number	Features	Current - Output (Max)	Package / Case	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Efficiency	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Line Regulation	Load Regulation
Delta Electronics AA30D1515A	2.5 %	176.9 g	0.39 lb	0.2 %	ITE (Commercial)	2	60950-1	Universal Input	1 A	7-DIP Module 5 Leads	Enclosed	Through Hole	89.9 mm	3.5 "	21.7 mm	63.5 mm	2.5 "	0.85 "	30 Watts	80 %	15 V	70 °C	-25 °C	CE cUL UL
Delta Electronics AA30D0512A	2.5 %	176.9 g	0.39 lb	0.2 %	ITE (Commercial)	2	60950-1	Universal Input	1.25 A 3 A	7-DIP Module	Enclosed	Through Hole	89.9 mm	3.5 "	21.7 mm	63.5 mm	2.5 "	0.85 "	30 Watts	76 %	5 V	70 °C	-25 °C	CE cUL UL
Delta Electronics AA30D1212A		176.9 g	0.39 lb		ITE (Commercial)	2	60950-1	Universal Input	1.3 A	7-DIP Module 5 Leads	Enclosed	Through Hole	89.9 mm	3.5 "	21.7 mm	63.5 mm	2.5 "	0.85 "	30 Watts	80 %	12 V	70 °C	-25 °C	CE cUL UL	Ý0.2%	Ý2.5%
