ECQ-V1394 Series

Catalog

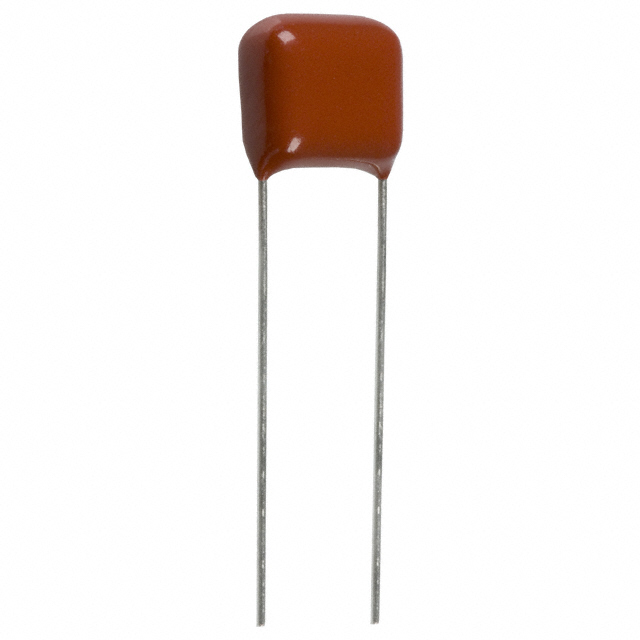

CAP FILM 0.39UF 5% 100VDC RADIAL

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Termination	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - DC	Applications	Package / Case	Dielectric Material	Tolerance	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ECQ-V1394JMW	15 mm	0.591 "	0.402 in	0.217 in	5.5 mm	10.2 mm	PC Pins	5 mm	0.197 in	-40 °C	105 ░C	Through Hole	100 V	General Purpose	Radial	Polyester Metallized - Stacked	5 %	0.39 µF
Panasonic Industrial Automation Sales ECQ-V1394JM9	15 mm	0.591 "	0.402 in	0.217 in	5.5 mm	10.2 mm	PC Pins	5 mm	0.197 in	-40 °C	105 ░C	Through Hole	100 V	General Purpose	Radial	Polyester Metallized - Stacked	5 %	0.39 µF
Panasonic Industrial Automation Sales ECQ-V1394JM3			0.402 in	0.217 in	5.5 mm	10.2 mm	PC Pins	5 mm	0.197 in	-40 °C	105 ░C	Through Hole	100 V	General Purpose	Radial	Polyester Metallized - Stacked	5 %	0.39 µF
Panasonic Industrial Automation Sales ECQ-V1394JM			0.402 in	0.217 in	5.5 mm	10.2 mm	PC Pins	7.5 mm	0.295 in	-40 °C	105 ░C	Through Hole	100 V	General Purpose	Radial	Polyester Metallized - Stacked	5 %	0.39 µF	11 mm	0.433 in
