R16460 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

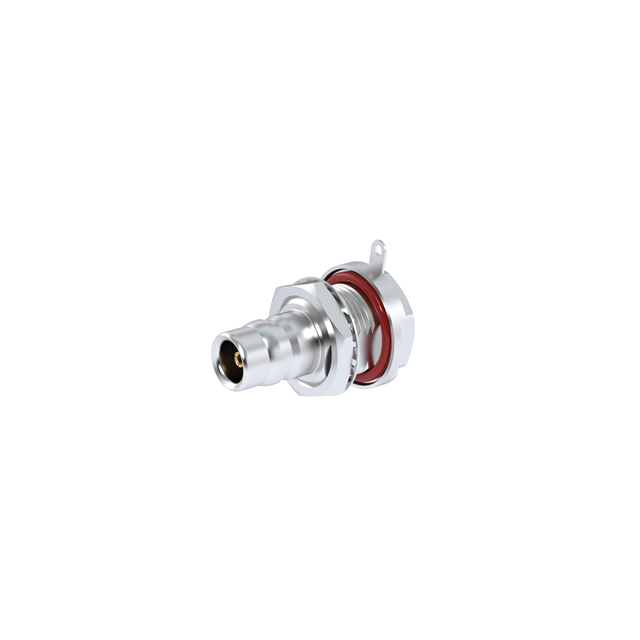

QN / STRAIGHT BULKHEAD RECEPTACL
| Part | Dielectric Material | Body Finish | Center Contact Plating | Mating Cycles | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Housing Color | Fastening Type | Connector Type | Center Contact Material | Ingress Protection | Shield Termination | Connector Style | Contact Termination | Number of Ports | Impedance | Frequency - Max [Max] | Mounting Feature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | White Bronze | Gold | 500 | 1000 VDC | -55 C | 125 °C | Brass | Silver | Snap-On | Receptacle Female Socket | Beryllium Copper | IP68 - Dust Tight Waterproof | Solder | QN | Solder Cup | 1 | 50 Ohms | 6000 MHz | Bulkhead - Front Side Nut | Panel Mount |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | White Bronze | Gold | 500 | 1000 VDC | -55 C | 125 °C | Brass | Silver | Snap-On | Receptacle Female Socket | Beryllium Copper | IP68 - Dust Tight Waterproof | Solder | QN | Solder Cup | 1 | 50 Ohms | 6000 MHz | Bulkhead - Front Side Nut | Panel Mount |
