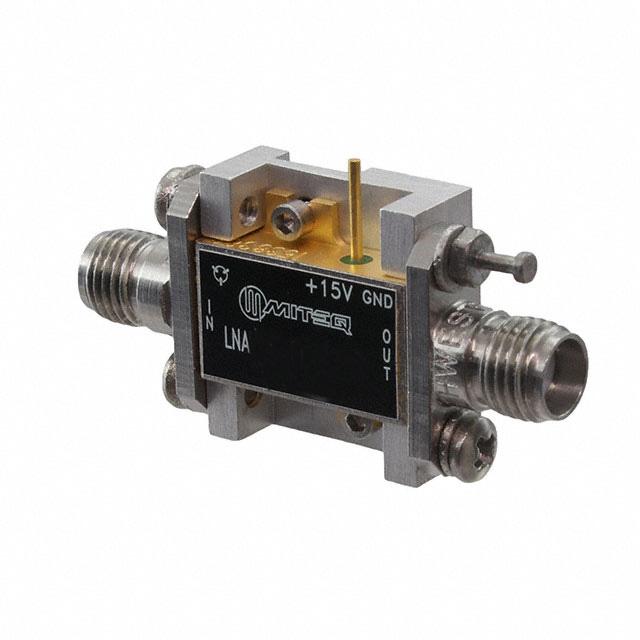

LNA-20 Series

Catalog

IC RF AMP VSAT 100MHZ-18GHZ MOD

Part	Supplier Device Package	Package / Case	P1dB	RF Type	Noise Figure	Voltage - Supply	Frequency [Min]	Frequency [Max]	Test Frequency [Max]	Test Frequency [Min]	Gain	Current - Supply
L3 Narda-MITEQ LNA-20-00101800-35-15P	Module	Module SMA Connectors	15 dBm	VSAT	3.5 dB	15 VDC	100 MHz	18 GHz	18 GHz	100 MHz	20 dBi	300 mA
L3 Narda-MITEQ LNA-20-12002600-38-20P	Module	Module SMA Connectors	20 dBm	VSAT	3.8 dBm	15 VDC	12 GHz	26 GHz	26 GHz	12 GHz	20 dBi	350 mA
L3 Narda-MITEQ LNA-20-02000800-43-25P	Module	Module SMA Connectors	25 dBm	VSAT	4.3 dB	15 VDC	2 GHz	8 GHz	8 GHz	2 GHz	20 dBi	450 mA
L3 Narda-MITEQ LNA-20-12002600-50-25P	Module	Module SMA Connectors	25 dBm	VSAT	5 dB	15 VDC	12 GHz	26 GHz	26 GHz	12 GHz	20 dBi	550 mA
L3 Narda-MITEQ LNA-20-02002600-37-15P	Module	Module SMA Connectors	15 dBm	VSAT	3.7 dB	15 VDC	2 GHz	26 GHz	26 GHz	2 GHz	20 dBi	400 mA
L3 Narda-MITEQ LNA-20-00100600-40-25P	Module	Module SMA Connectors	25 dBm	VSAT	4 dB	15 VDC	100 MHz	6 GHz	6 GHz	100 MHz	20 dBi	400 mA
L3 Narda-MITEQ LNA-20-00100800-20-15P	Module	Module SMA Connectors	15 dBm	VSAT	2 dB	15 VDC	100 MHz	8 GHz	8 GHz	100 MHz	20 dBi	250 mA
L3 Narda-MITEQ LNA-20-04000800-07-10P	Module	Module SMA Connectors	10 dBm	VSAT	0.7 dB	15 VDC	4 GHz	8 GHz	8 GHz	4 GHz	20 dBi	150 mA
L3 Narda-MITEQ LNA-20-02000600-10-10P	Module	Module SMA Connectors	10 dBm	VSAT	1 dB	15 VDC	2 GHz	6 GHz	6 GHz	2 GHz	20 dBi	150 mA
L3 Narda-MITEQ LNA-20-02000600-15-15P	Module	Module SMA Connectors	15 dBm	VSAT	1.5 dB	15 VDC	2 GHz	6 GHz	6 GHz	2 GHz	20 dBi	250 mA
