9W2TS48 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

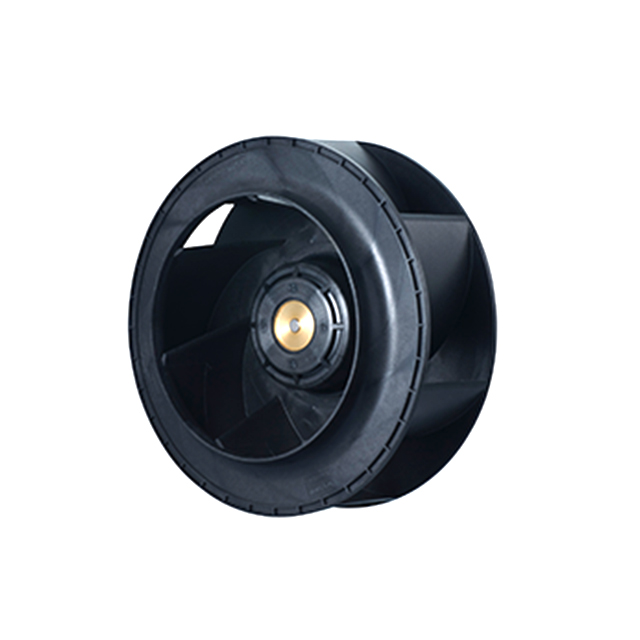

BLOWERS & CENTRIFUGAL FANS CENTRIFUGAL FAN, 225X99MM ROUND, 48VDC, SPLASH PROOF, RIBLESS, TACH/PWM, IP56
| Part | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Lifetime @ Temp. | Material - Blade | Ingress Protection | Size / Dimension [diameter] | Approval Agency | Termination | Weight [custom] | Weight [custom] | Static Pressure | Static Pressure | RPM | Voltage - Rated | Air Flow | Air Flow | Fan Type | Features | Width [y] | Noise | Bearing Type | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 2.45 A | 72 VDC | 36 VDC | Aluminum | 40000 Hrs | Plastic | IP56 - Dust Protected Water Resistant | 225 mm | cURus TUV | 4 Wire Leads | 3.3 lbs | 1.5 kg | 635.2 Pa | 2.55 in H2O | 3000 RPM | 48 VDC | 830 CFM | 23.24 m³/min | Motorized Impellers | PWM Control Speed Sensor (Tach) | 99 mm | 72 dB(A) | Ball | 117.6 W | 70 °C | -25 °C |
