D15P24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

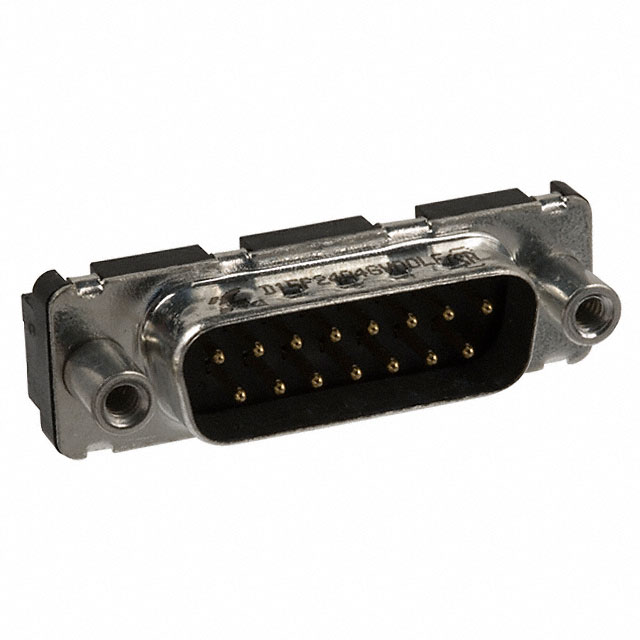

CONN D-SUB PLUG 15POS VERT SLDR
| Part | Contact Finish | Connector Type | Flange Feature | Features | Color | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Rows | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Material | Connector Style | Material Flammability Rating | Dielectric Material | Voltage Rating | Shell Size, Connector Layout | Shell Material, Finish | Operating Temperature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Gold | Male Pins Plug | Female Screwlock (4-40) Mating Side | Board Lock Grounding Indents | Black | Solder | Through Hole | 0.76 Ám | 30 Áin | Signal | 2 | 5 A | -55 °C | 125 °C | 15 | Phosphor Bronze | D-Sub | UL94 V-0 | Polybutylene Terephthalate (PBT) | 300 VDC | 2 | |||
Amphenol ICC (FCI) | Gold | Male Pins Plug | Housing/Shell (4-40) | Grounding Indents | Black | Solder | Through Hole | 0.76 Ám | 30 Áin | Signal | 2 | 5 A | -55 °C | 125 °C | 15 | Phosphor Bronze | D-Sub | UL94 V-0 | Polybutylene Terephthalate (PBT) | 300 VDC | 2 | Steel Tin-Nickel Plated | ||
Amphenol ICC (FCI) | Gold | Male Pins Plug | Female Screwlock (4-40) Mating Side | Board Guide Grounding Indents Pick and Place Cap | Black | Solder Paste | Through Hole | Signal | 2 | 5 A | 15 | Copper Alloy | D-Sub | UL94 V-0 | Liquid Crystal Polymer (LCP) Glass Filled | 300 VDC | 2 | Nickel Plated Steel | -55 °C | |||||
Amphenol ICC (FCI) | Gold | Male Pins Plug | Female Screwlock (M3) Mating Side | Board Lock Grounding Indents | Black | Solder | Through Hole | Signal | 2 | 5 A | -55 °C | 125 °C | 15 | Phosphor Bronze | D-Sub | UL94 V-0 | Polybutylene Terephthalate (PBT) | 300 VDC | 2 | Flash | ||||
Amphenol ICC (FCI) | Gold | Male Pins Plug | Housing/Shell (4-40) | Board Guide Grounding Indents Pick and Place Cap | Black | Solder Paste | Through Hole | Signal | 2 | 5 A | 15 | Copper Alloy | D-Sub | UL94 V-0 | Liquid Crystal Polymer (LCP) Glass Filled | 300 VDC | 2 | Nickel Plated Steel | -55 °C | |||||
Amphenol ICC (FCI) | Gold | Male Pins Plug | Housing/Shell (M3) | Board Lock Grounding Indents | Black | Solder | Through Hole | Signal | 2 | 5 A | -55 °C | 125 °C | 15 | Phosphor Bronze | D-Sub | UL94 V-0 | Polybutylene Terephthalate (PBT) | 300 VDC | 2 | Steel Tin-Nickel Plated | Flash | |||
 Amphenol ICC (FCI) | Gold | Male Pins Plug | Female Screwlock (4-40) Mating Side | Board Lock Grounding Indents | Black | Solder | Through Hole | Signal | 2 | 5 A | -55 °C | 125 °C | 15 | Phosphor Bronze | D-Sub | UL94 V-0 | Polybutylene Terephthalate (PBT) | 300 VDC | 2 | Steel Tin-Nickel Plated | Flash | |||
Amphenol ICC (FCI) | Gold | Male Pins Plug | Housing/Shell (Unthreaded) | Grounding Indents | Black | Solder | Through Hole | Signal | 2 | 5 A | -55 °C | 125 °C | 15 | Phosphor Bronze | D-Sub | UL94 V-0 | Polybutylene Terephthalate (PBT) | 300 VDC | 2 | Steel Tin-Nickel Plated | Flash | |||
Amphenol ICC (FCI) | Gold | Male Pins Plug | Female Screwlock (4-40) Mating Side | Board Guide Grounding Indents | Black | Solder | Through Hole | 0.76 Ám | 30 Áin | Signal | 2 | 5 A | -55 °C | 125 °C | 15 | Brass | D-Sub | UL94 V-0 | Polybutylene Terephthalate (PBT) | 300 VDC | 2 | Nickel Plated Steel | ||
Amphenol ICC (FCI) | Gold | Male Pins Plug | Housing/Shell (M3) | Board Guide Grounding Indents | Black | Solder Paste | Through Hole | Signal | 2 | 5 A | 15 | Copper Alloy | D-Sub | UL94 V-0 | Liquid Crystal Polymer (LCP) Glass Filled | 300 VDC | 2 | Nickel Plated Steel | -55 °C |
