SDR0805 Series
Manufacturer: Bourns Inc.
Beta
⌘K

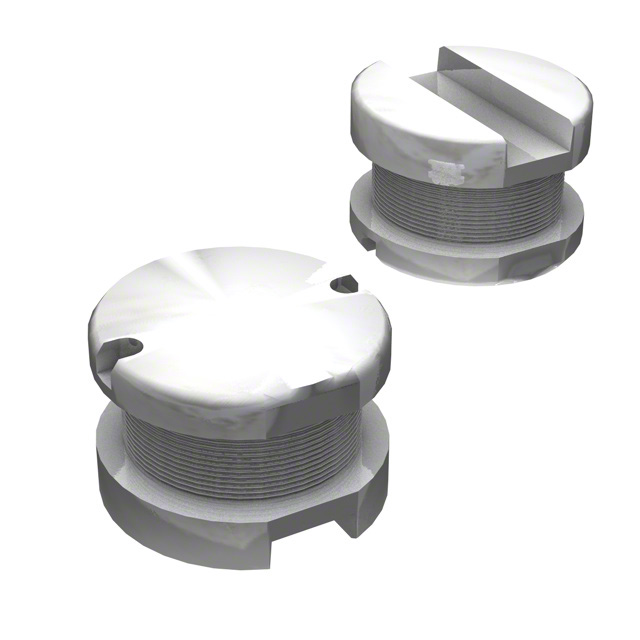

SURFACE MOUNT POWER INDUCTOR, SDR0805 SERIES, 470 H, 10%, UNSHIELDED, 1.96 OHM, 340 MA ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Shielding | DC Resistance (DCR) [Max] | Tolerance | Type | Current - Saturation (Isat) | Frequency - Self Resonant | Current Rating (Amps) | Inductance | Package / Case | Q @ Freq | Inductance Frequency - Test | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Material - Core | Q @ Freq [custom] | Q @ Freq [custom] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 125 °C | -40 C | Surface Mount | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | Unshielded | 1.96 Ohm | 10 % | Drum Core Wirewound | 500 mA | 4 MHz | 0.34 A | 470 µH | Nonstandard | 12 796 kHz | 1 kHz | 0.209 " | 5.3 mm | Ferrite | |||
 Bourns Inc. | 125 °C | -40 C | Surface Mount | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | Unshielded | 90 mOhm | 20 % | Drum Core Wirewound | 2.7 A | 16 MHz | 1.8 A | 15 µH | Nonstandard | 2.52 MHz 25 | 1 kHz | 0.209 " | 5.3 mm | Ferrite | |||
 Bourns Inc. | 125 °C | -40 C | Surface Mount | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | Unshielded | 2.8 Ohm | 10 % | Drum Core Wirewound | 420 mA | 3 MHz | 0.28 A | 680 µH | Nonstandard | 29 796 kHz | 1 kHz | 0.209 " | 5.3 mm | Ferrite | |||
Bourns Inc. | 125 °C | -40 C | Surface Mount | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | Unshielded | 8 Ohm | 10 % | Drum Core Wirewound | 260 mA | 2 MHz | 150 mA | 1.5 mH | Nonstandard | 1 kHz | 0.209 " | 5.3 mm | Ferrite | 252 kHz | 27 | ||
 Bourns Inc. | 125 °C | -40 C | Surface Mount | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | Unshielded | 1.77 Ohm | 10 % | Drum Core Wirewound | 550 mA | 4 MHz | 360 mA | 390 µH | Nonstandard | 12 796 kHz | 1 kHz | 0.209 " | 5.3 mm | Ferrite | |||
 Bourns Inc. | 125 °C | -40 C | Surface Mount | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | Unshielded | 160 mOhm | 10 % | Drum Core Wirewound | 1.7 A | 10 MHz | 1.1 A | 39 µH | Nonstandard | 2.52 MHz 15 | 1 kHz | 0.209 " | 5.3 mm | Ferrite | |||
Bourns Inc. | 125 °C | -40 C | Surface Mount | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | Unshielded | 480 mOhm | 10 % | Drum Core Wirewound | 1 A | 6 MHz | 660 mA | Nonstandard | 12 796 kHz | 1 kHz | 0.209 " | 5.3 mm | Ferrite | ||||
Bourns Inc. | 125 °C | -40 C | Surface Mount | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | Unshielded | 10 % | Drum Core Wirewound | 800 mA | 5 MHz | 0.51 A | 180 µH | Nonstandard | 12 796 kHz | 1 kHz | 0.209 " | 5.3 mm | Ferrite | 770 mOhm | |||
Bourns Inc. | 125 °C | -40 C | Surface Mount | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | Unshielded | 10 % | Drum Core Wirewound | 2 MHz | 140 mA | 1.8 mH | Nonstandard | 30 252 kHz | 1 kHz | 0.209 " | 5.3 mm | Ferrite | 9.2 Ohm | ||||
Bourns Inc. | 125 °C | -40 C | Surface Mount | 7.8 mm | 0.307 " | 0.307 " | 7.8 mm | Unshielded | 20 mOhm | 20 % | Drum Core Wirewound | 7.2 A | 5 A | 2.5 µH | Nonstandard | 32 | 1 kHz | 0.209 " | 5.3 mm | Ferrite |
