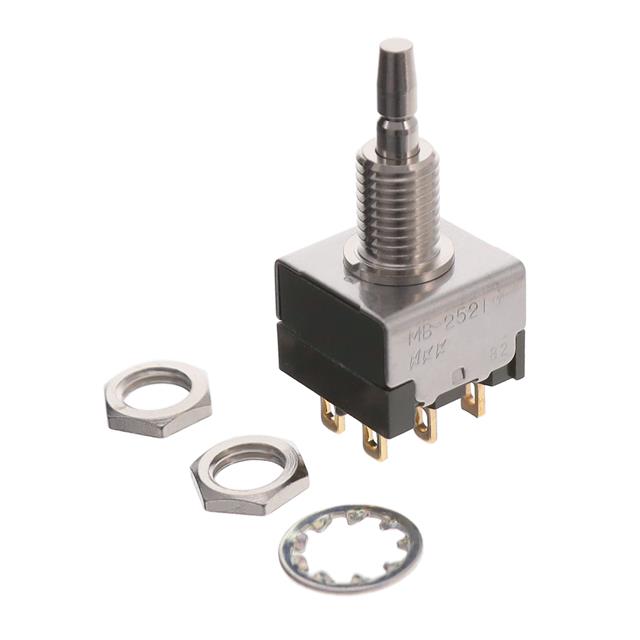

MB2521S Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON DPDT 0.4VA 28V
| Part | Mechanical Life | Electrical Life | Switch Function | Termination Style | Features | Circuit | Voltage Rating - AC | Current Rating (Amps) | Voltage Rating - DC | Type | Actuator Marking | Mounting Type | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 200000 Cycles | 100000 Cycles | On-Mom | Solder Lug | Epoxy Sealed Terminals | DPDT | 28 V | 0.4 VA | 28 V | Standard | No Marking | Panel Mount Rear | 6.5 mm | 85 °C | -30 ░C | Plunger for Cap | |
 NKK Switches | 200000 Cycles | 25000 Steps | On-Mom | Solder Lug | Epoxy Sealed Terminals | DPDT | 125 V | 3 A | Standard | No Marking | Panel Mount Rear | 6.5 mm | 85 °C | -30 ░C | Button Round | Red | |
 NKK Switches | 200000 Cycles | 25000 Steps | On-Mom | PC Pin | Epoxy Sealed Terminals | DPDT | 125 V | 3 A | Standard | No Marking | Right Angle Through Hole Vertical | 85 °C | -30 ░C | Plunger for Cap |
