25SH-E Series
Manufacturer: Adam Tech
Beta
⌘K

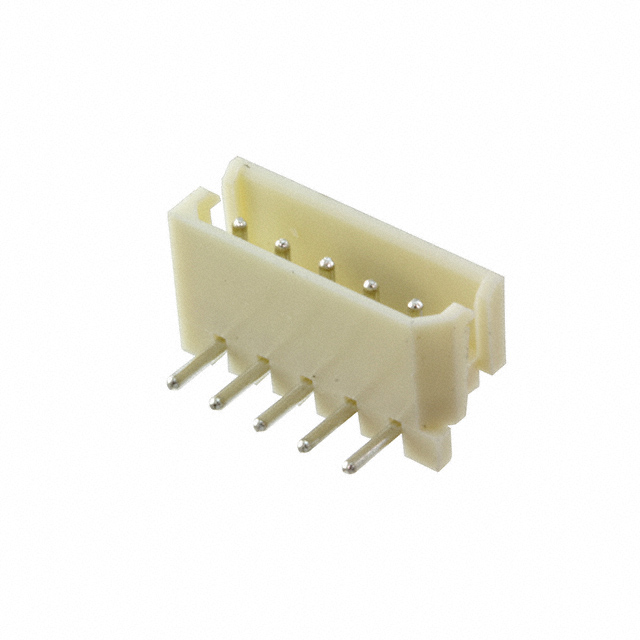

CONN HEADER R/A 5POS 2.5MM
| Part | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Termination | Number of Positions | Contact Length - Post | Contact Length - Post | Mounting Type | Number of Rows | Insulation Height | Insulation Height | Number of Positions Loaded | Shrouding | Fastening Type | Material Flammability Rating | Voltage Rating | Insulation Color | Connector Type | Current Rating (Amps) | Style | Contact Shape | Contact Material | Contact Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 2.5 mm | 0.098 in | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Solder | 5 | 0.138 in | 3.5 mm | Right Angle Through Hole | 1 | 4.9 mm | 0.193 " | All | Shrouded - 4 Wall | Friction Lock | UL94 V-0 | 250 VAC | Beige | Header | 3 A | Board to Cable/Wire | Circular | Brass | Male Pin | Tin |

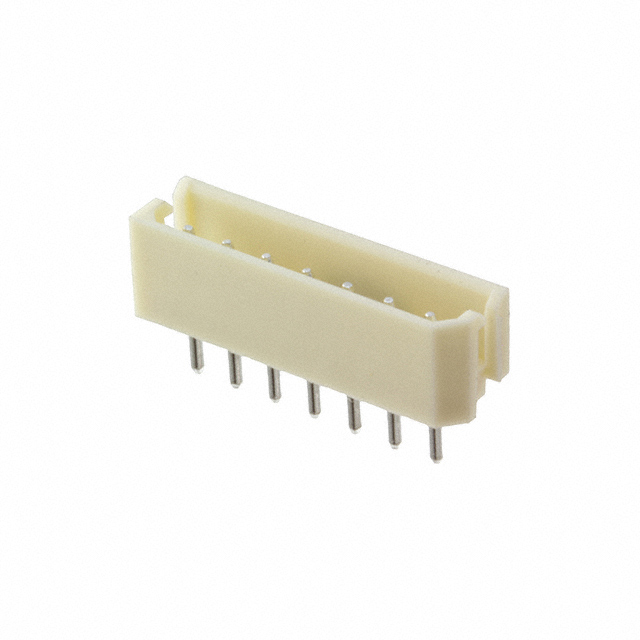

 Adam Tech | 2.5 mm | 0.098 in | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Solder | 7 | 0.138 in | 3.5 mm | Through Hole | 1 | 5.9 mm | 0.232 in | All | Shrouded - 4 Wall | Friction Lock | UL94 V-0 | 250 VAC | Beige | Header | 3 A | Board to Cable/Wire | Circular | Brass | Male Pin | Tin |
 Adam Tech | 2.5 mm | 0.098 in | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Solder | 0.138 in | 3.5 mm | Through Hole | 1 | 5.9 mm | 0.232 in | All | Shrouded - 4 Wall | Friction Lock | UL94 V-0 | 250 VAC | Beige | Header | 3 A | Board to Cable/Wire | Circular | Brass | Male Pin | Tin | |
 Adam Tech | 2.5 mm | 0.098 in | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Solder | 0.138 in | 3.5 mm | Right Angle Through Hole | 1 | 4.9 mm | 0.193 " | All | Shrouded - 4 Wall | Friction Lock | UL94 V-0 | 250 VAC | Beige | Header | 3 A | Board to Cable/Wire | Circular | Brass | Male Pin | Tin | |
 Adam Tech | 2.5 mm | 0.098 in | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Solder | 10 | 0.138 in | 3.5 mm | Through Hole | 1 | 5.9 mm | 0.232 in | All | Shrouded - 4 Wall | Friction Lock | UL94 V-0 | 250 VAC | Beige | Header | 3 A | Board to Cable/Wire | Circular | Brass | Male Pin | Tin |

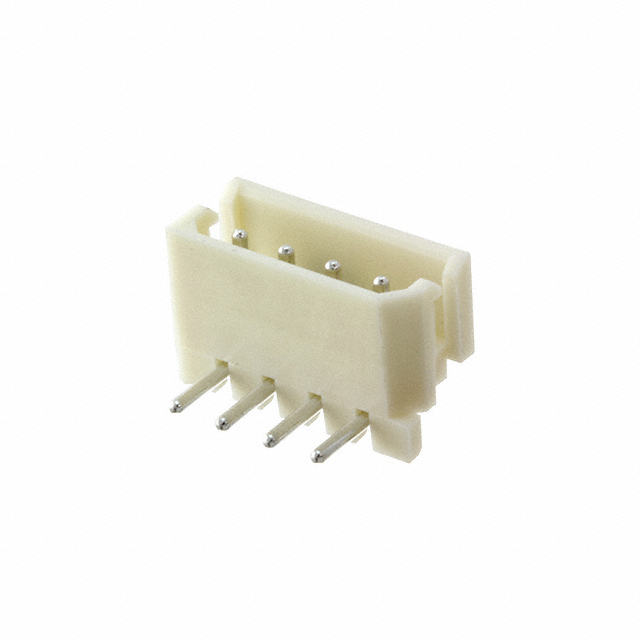

 Adam Tech | 2.5 mm | 0.098 in | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Solder | 4 | 0.138 in | 3.5 mm | Right Angle Through Hole | 1 | 4.9 mm | 0.193 " | All | Shrouded - 4 Wall | Friction Lock | UL94 V-0 | 250 VAC | Beige | Header | 3 A | Board to Cable/Wire | Circular | Brass | Male Pin | Tin |
 Adam Tech | 2.5 mm | 0.098 in | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Solder | 8 | 0.138 in | 3.5 mm | Right Angle Through Hole | 1 | 4.9 mm | 0.193 " | All | Shrouded - 4 Wall | Friction Lock | UL94 V-0 | 250 VAC | Beige | Header | 3 A | Board to Cable/Wire | Circular | Brass | Male Pin | Tin |

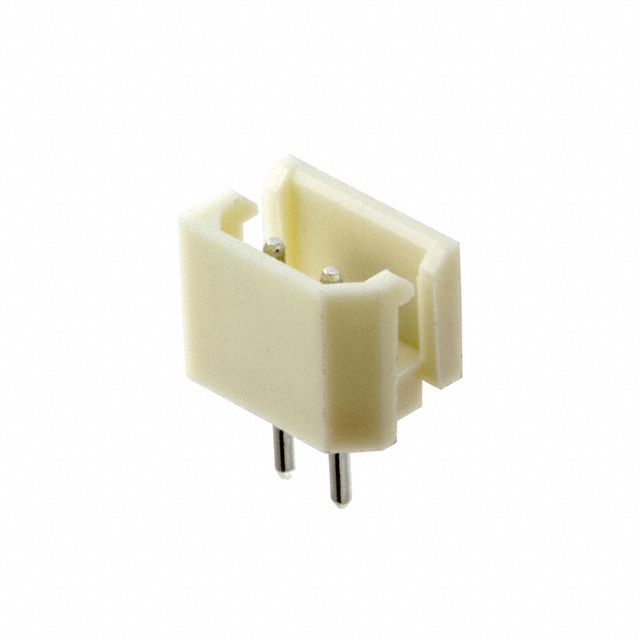

 Adam Tech | 2.5 mm | 0.098 in | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Solder | 2 | 0.138 in | 3.5 mm | Through Hole | 1 | 5.9 mm | 0.232 in | All | Shrouded - 4 Wall | Friction Lock | UL94 V-0 | 250 VAC | Beige | Header | 3 A | Board to Cable/Wire | Circular | Brass | Male Pin | Tin |

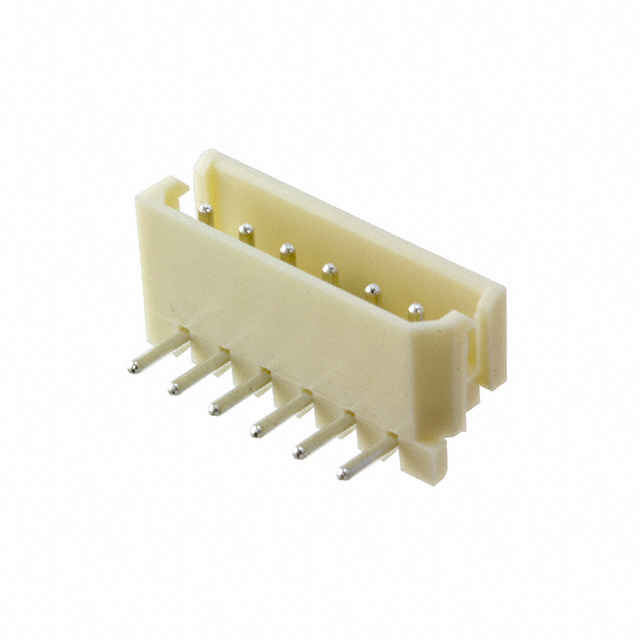

 Adam Tech | 2.5 mm | 0.098 in | -40 C | 105 ░C | Nylon 6/6 Polyamide (PA66) | Solder | 6 | 0.138 in | 3.5 mm | Right Angle Through Hole | 1 | 4.9 mm | 0.193 " | All | Shrouded - 4 Wall | Friction Lock | UL94 V-0 | 250 VAC | Beige | Header | 3 A | Board to Cable/Wire | Circular | Brass | Male Pin | Tin |
