MAX22702 Series

Catalog

DGTL ISO 3KV 1CH GATE DVR 8SOIC

Part	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Voltage - Isolation	Number of Channels	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Mounting Type	Pulse Width Distortion (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Package / Case	Package / Case [y]	Package / Case [x]	Technology	Common Mode Transient Immunity (Min) [Min]	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)	Supplier Device Package	Supplied Contents	Function	Contents	Utilized IC / Part	Type
Analog Devices Inc./Maxim Integrated MAX22702EASA+	6 V	36 V	3000 VAC	1	2.35 A	3.7 A	36 ns	36 ns	Surface Mount	2 ns	125 °C	-40 °C	CSA cUL UL	8-SOIC	3.9 mm	0.154 in	Capacitive Coupling	300 kV/µs	1.8 ns	3.6 ns	8-SOIC
Analog Devices Inc./Maxim Integrated MAX22702EASA+T			3000 VAC	1	2.35 A	3.7 A	36 ns	36 ns	Surface Mount	2 ns	125 °C	-40 °C	CSA cUL UL	8-SOIC	3.9 mm	0.154 in	Capacitive Coupling	300 kV/µs	1.8 ns	3.6 ns	8-SOIC

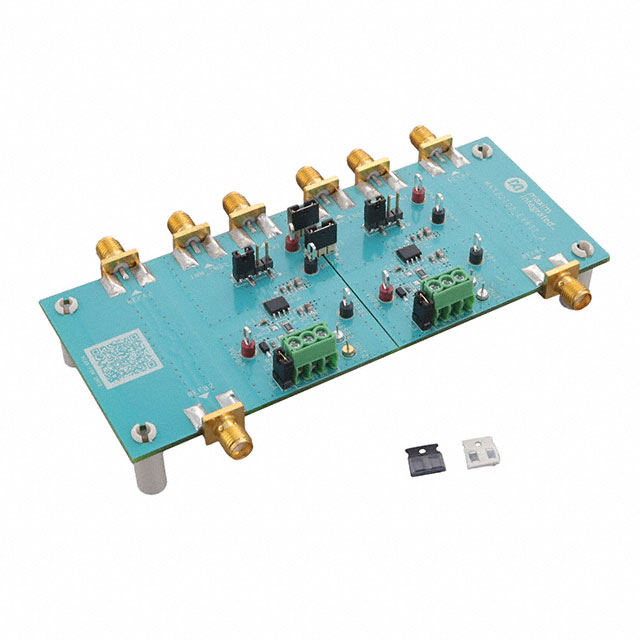

Analog Devices Inc./Maxim Integrated MAX22702EVKIT#																						Board(s)	Gate Driver	Board(s)	MAX22702	Power Management
