L77TWC8 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

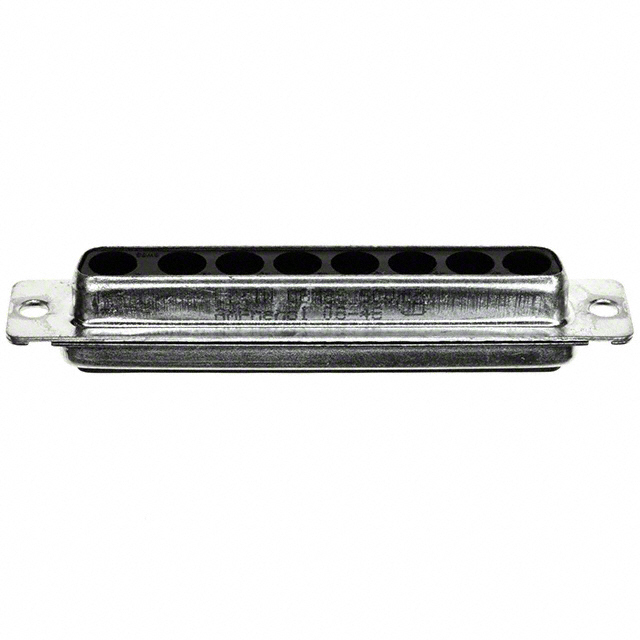

CONN D-SUB PLUG 8POS R/A SLDR
| Part | Color | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Voltage Rating | Contact Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [x] | Shell Size, Connector Layout | Flange Feature | Number of Rows | Backset Spacing | Backset Spacing | Connector Type | Termination | Connector Style | Mounting Type | Contact Finish | Mating Cycles | Note | Shell Finish Thickness | Shell Finish Thickness | Features | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | Thermoplastic | 155 C | -55 C | Brass | 300 VDC | Coax | 8 | 16 µin | 0.41 µm | 4 | 8W8 C DC | Housing/Shell (Unthreaded) | 1 | 10.3 mm | 0.406 in | Plug Male Pins | Solder | Combo D-Sub | Panel Mount Right Angle Through Hole | Gold | ||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | 155 C | -55 C | Bronze | 300 VDC | Power | 8 | 16 µin | 0.41 µm | 4 | 8W8 C DC | Cable Side (4-40) | 1 | Receptacle Female Sockets | Combo D-Sub | Panel Mount | Gold | |||||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | 155 C | -55 C | Bronze | 300 VDC | Power | 8 | 16 µin | 0.41 µm | 4 | 8W8 C DC | Board Side (4-40) | 1 | 21.46 mm | 0.845 in | Receptacle Female Sockets | Solder | Combo D-Sub | Panel Mount Right Angle Through Hole | Gold | ||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | 155 C | -55 C | Bronze | 300 VDC | Power | 8 | 16 µin | 0.41 µm | 4 | 8W8 C DC | Housing/Shell (Unthreaded) | 1 | Receptacle Female Sockets | Solder | Combo D-Sub | Panel Mount Through Hole | Gold | ||||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | 155 C | -55 C | Bronze | 300 VDC | Power | 8 | 16 µin | 0.41 µm | 4 | 8W8 C DC | Housing/Shell (Unthreaded) | 1 | Receptacle Female Sockets | Solder | Combo D-Sub | Panel Mount Through Hole | Gold | ||||||||
 Amphenol ICC (Commercial Products) | Black | Thermoplastic Glass Filled | 155 C | -55 C | Power | 8 | 4 | 8W8 C DC | Housing/Shell (Unthreaded) | 1 | Receptacle for Female Contacts | Combo D-Sub | Free Hanging (In-Line) | 200 | Contacts Not Included | 2.54 µm | 100 µin | ||||||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | 155 C | -55 C | Bronze | 150 VDC | Coax | 8 | 16 µin | 0.41 µm | 4 | 8W8 C DC | Board Side (M3) | 1 | Receptacle Female Sockets | Solder | Combo D-Sub | Panel Mount Through Hole | Gold | Board Lock Shielded | 0.5 A | ||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | 155 C | -55 C | Bronze | 300 VDC | Coax | 8 | 16 µin | 0.41 µm | 4 | 8W8 C DC | 4-40 Mating Side Female Screwlock | 1 | 10.3 mm | 0.406 in | Receptacle Female Sockets | Solder | Combo D-Sub | Panel Mount Right Angle Through Hole | Gold | Board Lock Mounting Brackets | |||||
 Amphenol ICC (Commercial Products) | Black | Thermoplastic | 155 C | -55 C | Bronze | 300 VDC | Power | 8 | 16 µin | 0.41 µm | 4 | 8W8 C DC | Housing/Shell (Unthreaded) | 1 | 21.46 mm | 0.845 in | Receptacle Female Sockets | Solder | Combo D-Sub | Panel Mount Right Angle Through Hole | Gold | ||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | 155 C | -55 C | Bronze | 300 VDC | Power | 8 | 16 µin | 0.41 µm | 4 | 8W8 C DC | Board Side (4-40) | 1 | 9.52 mm | 0.375 in | Receptacle Female Sockets | Solder | Combo D-Sub | Panel Mount Right Angle Through Hole | Gold | Board Lock Mounting Brackets |
