TPS61391 Series

85-VOUT Boost converter with current mirror

Catalog

85-VOUT Boost converter with current mirror

Part	Output Type	Topology	Voltage - Input (Min) [Min]	Output Configuration	Voltage - Output (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Switching	Mounting Type	Number of Outputs	Supplier Device Package	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Function	Outputs and Type	Outputs and Type	Main Purpose	Board Type	Supplied Contents	Regulator Topology	Utilized IC / Part	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input [Min]	Voltage - Input [Max]
Texas Instruments TPS61391RTER	Adjustable	Boost	2.5 V	Positive	85 V	16-WFQFN Exposed Pad	-40 °C	125 ¯C	700 kHz	Surface Mount	1	16-WQFN (3x3)	20 V	5.5 V	Step-Up

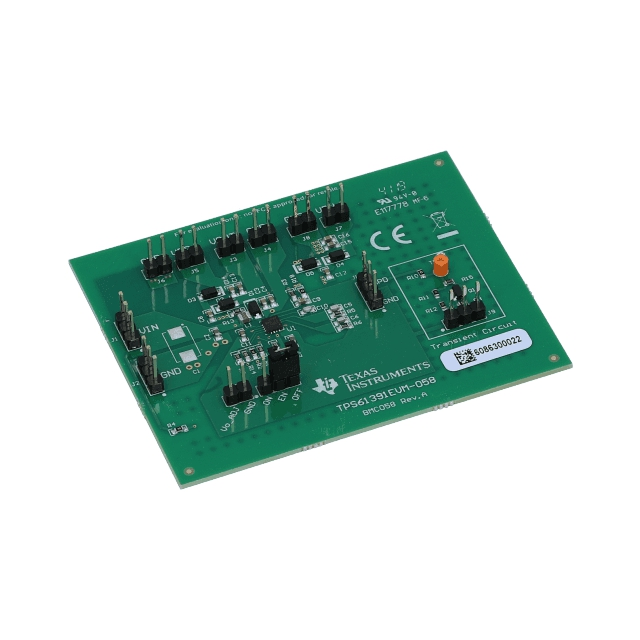

Texas Instruments TPS61391EVM-058									700 kHz							Non-Isolated	1	DC/DC Step Up	Fully Populated	Board(s)	Boost	TPS61391	85 V	20 V	2.5 V	5.5 V
Texas Instruments TPS61391RTET	Adjustable	Boost	2.5 V	Positive	85 V	16-WFQFN Exposed Pad	-40 °C	125 ¯C	700 kHz	Surface Mount	1	16-WQFN (3x3)	20 V	5.5 V	Step-Up

Catalog

85-VOUT Boost converter with current mirror

Key Features

• Input voltage range: 2.5 V to 5.5 VOutput voltage range: up to 85 VR(DS)onof switching FET: 0.9 ΩSwitch current limit: 1000 mAHigh optical power protection with 0.5-µs response timeSwitching frequency: 700 kHzQuiescent current: 110 µA from VIN, 340 µA from VOUT, 140 µA from AVCCSoft-start time: 4.8 msPackage: 3 mm × 3 mm × 0.75 mm QFNInput voltage range: 2.5 V to 5.5 VOutput voltage range: up to 85 VR(DS)onof switching FET: 0.9 ΩSwitch current limit: 1000 mAHigh optical power protection with 0.5-µs response timeSwitching frequency: 700 kHzQuiescent current: 110 µA from VIN, 340 µA from VOUT, 140 µA from AVCCSoft-start time: 4.8 msPackage: 3 mm × 3 mm × 0.75 mm QFN

Description

The TPS61391 is a 700-kHz pulse-width modulating (PWM) step-up converter with an 85-V switch FET with an input ranging from 2.5 V to 5.5 V. The switching peak current is up to 1000 mA. The TPS61391 includes accurate current mirror with two gain options selectable (1 : 5 or 4 : 5). The TPS61391 also provides high optical-power protection with an additional FET in series with the APD power path with the typical response time of 0.5 µs . It can recover automatically once the high optical releasing. The TPS61391 is available in 3 mm × 3 mm QFN package with exposed pad underneath. The TPS61391 is a 700-kHz pulse-width modulating (PWM) step-up converter with an 85-V switch FET with an input ranging from 2.5 V to 5.5 V. The switching peak current is up to 1000 mA. The TPS61391 includes accurate current mirror with two gain options selectable (1 : 5 or 4 : 5). The TPS61391 also provides high optical-power protection with an additional FET in series with the APD power path with the typical response time of 0.5 µs . It can recover automatically once the high optical releasing. The TPS61391 is available in 3 mm × 3 mm QFN package with exposed pad underneath.
