LM3103 Series
Manufacturer: Texas Instruments
Beta
⌘K
SYNCHRONOUS 1MHZ 0.75A STEP-DOWN VOLTAGE REGULATOR
| Part | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Mounting Type | Current - Output | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Voltage - Output (Max) [Max] | Package / Case | Package / Case | Frequency - Switching [Max] | Voltage - Output (Min/Fixed) | Supplier Device Package | Topology | Function | Number of Outputs | Synchronous Rectifier | Output Type | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Regulator Topology | Board Type | Outputs and Type | Outputs and Type | Main Purpose | Frequency - Switching | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 4.5 V | 42 V | Surface Mount | 750 mA | -40 °C | 125 ¯C | Positive | 7 V | 16-PowerTSSOP | 0.173 in 4.4 mm Width | 1 MHz | 0.6 V | 16-HTSSOP | Buck | Step-Down | 1 | Adjustable | ||||||||||||

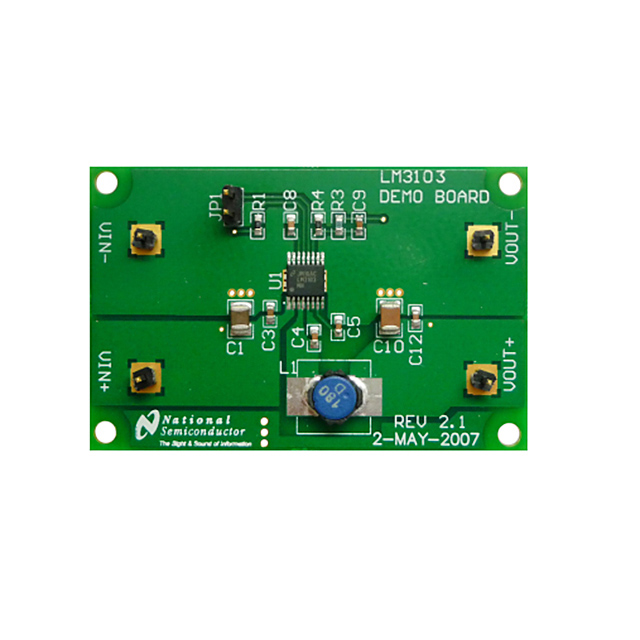

 Texas Instruments | 750 mA | LM3103 | 8 V | 42 V | 3.3 V | Buck | Fully Populated | Non-Isolated | 1 | DC/DC Step Down | 500 kHz | Board(s) |
