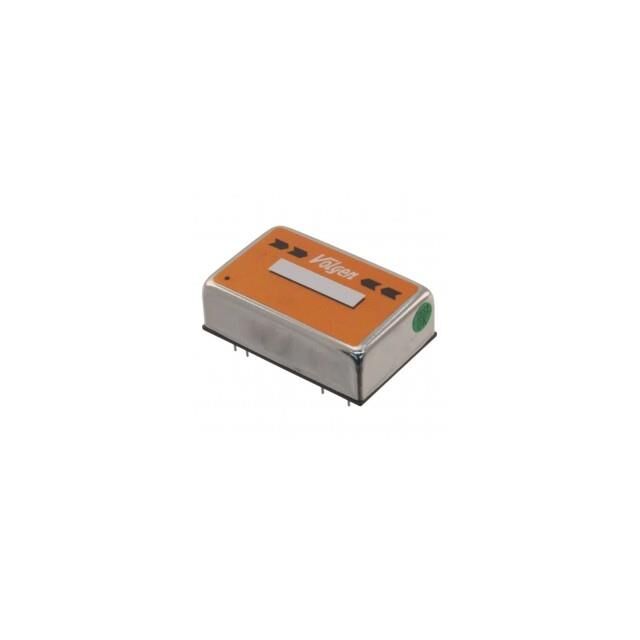

MT12A Series

Catalog

DC DC CONVERTER 12V 12W

Part	Voltage - Isolation	Mounting Type	Package / Case	Applications	Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Control Features	Features	Power (Watts)	Current - Output (Max) [Max]	Current - Output (Max)	Voltage - Output 2
Volgen + Furuno MT12A-4812SI	1.6 kV	Through Hole	24-DIP Module 9 Leads	ITE (Commercial)	Isolated Module	12 V	85 °C	-40 C	75 V	36 V	87 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Active High Enable	OCP OVP Remote On/Off SCP	12 W	1 A
Volgen + Furuno MT12A-2425SI	1.6 kV	Through Hole	24-DIP Module 9 Leads	ITE (Commercial)	Isolated Module	2.5 V	85 °C	-40 C	36 V	18 V	83 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Active High Enable	OCP OVP Remote On/Off SCP	12 W	3.5 A
Volgen + Furuno MT12A-4825SI	1.6 kV	Through Hole	24-DIP Module 9 Leads	ITE (Commercial)	Isolated Module	2.5 V	85 °C	-40 C	75 V	36 V	83 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Active High Enable	OCP OVP Remote On/Off SCP	12 W	3.5 A
Volgen + Furuno MT12A-2405SI	1.6 kV	Through Hole	24-DIP Module 9 Leads	ITE (Commercial)	Isolated Module	5.1 V	85 °C	-40 C	36 V	18 V	87 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Active High Enable	OCP OVP Remote On/Off SCP	12 W	2.4 A
Volgen + Furuno MT12A-1212WI	1.6 kV	Through Hole	24-DIP Module 9 Leads	ITE (Commercial)	Isolated Module	12 V	85 °C	-40 C	18 V	9 V	87 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	Active High Enable	OCP OVP Remote On/Off SCP	12 W		500 mA	-12 V
Volgen + Furuno MT12A-4833SI	1.6 kV	Through Hole	24-DIP Module 9 Leads	ITE (Commercial)	Isolated Module	3.3 V	85 °C	-40 C	75 V	36 V	85 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Active High Enable	OCP OVP Remote On/Off SCP	12 W	3.5 A
Volgen + Furuno MT12A-1212SI	1.6 kV	Through Hole	24-DIP Module 9 Leads	ITE (Commercial)	Isolated Module	12 V	85 °C	-40 C	18 V	9 V	86 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Active High Enable	OCP OVP Remote On/Off SCP	12 W	1 A
Volgen + Furuno MT12A-2412WI	1.6 kV	Through Hole	24-DIP Module 9 Leads	ITE (Commercial)	Isolated Module	12 V	85 °C	-40 C	36 V	18 V	88 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	Active High Enable	OCP OVP Remote On/Off SCP	12 W		500 mA	-12 V
Volgen + Furuno MT12A-2433SI	1.6 kV	Through Hole	24-DIP Module 9 Leads	ITE (Commercial)	Isolated Module	3.3 V	85 °C	-40 C	36 V	18 V	85 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	Active High Enable	OCP OVP Remote On/Off SCP	12 W	3.5 A
Volgen + Furuno MT12A-1215WI	1.6 kV	Through Hole	24-DIP Module 9 Leads	ITE (Commercial)	Isolated Module	15 V	85 °C	-40 C	18 V	9 V	87 %	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	Active High Enable	OCP OVP Remote On/Off SCP	12 W		400 mA	-15 V
