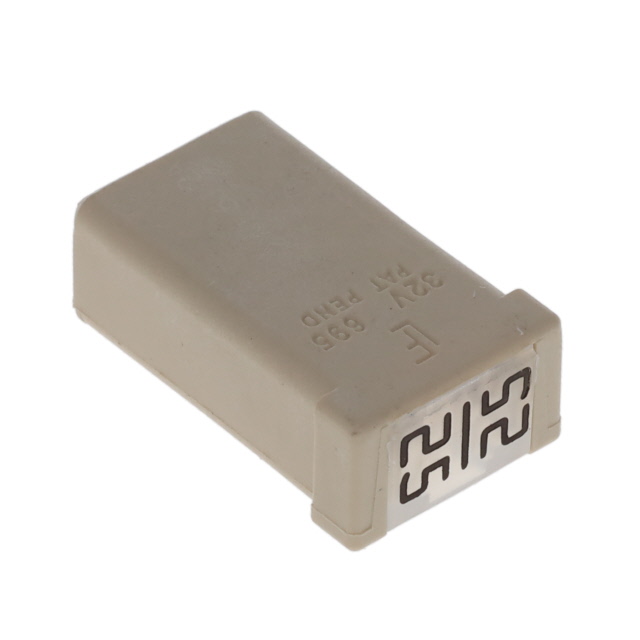

MCAS025.XP Series

Fuse - MCase 32VDC 25A 1-pc Card

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Fuse - MCase 32VDC 25A 1-pc Card

Part	Response Time	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage Rating - DC	Current Rating (Amps)	Fuse Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Package / Case	Breaking Capacity @ Rated Voltage
Littelfuse/Commercial Vehicle Products MCAS025.XP	Slow Blow	10.7 mm	17.5 mm	6.2 mm	0.244 "	0.421 "	0.689 "	32 V	25 A	Automotive	Requires Holder	125 °C	-40 °C	Clear	Auto Link	1 kA

Catalog

Fuse - MCase 32VDC 25A 1-pc Card

Description

The MCASE™ is a cartridge style fuse with female terminals for 2.8 mm male terminals. It has a miniaturized footprint for optimal usage of space. It is a time delayed fuse and can handle inrush currents. MCASE™ is designed and patented by Littelfuse.
