9CRLA0612 Series

Catalog

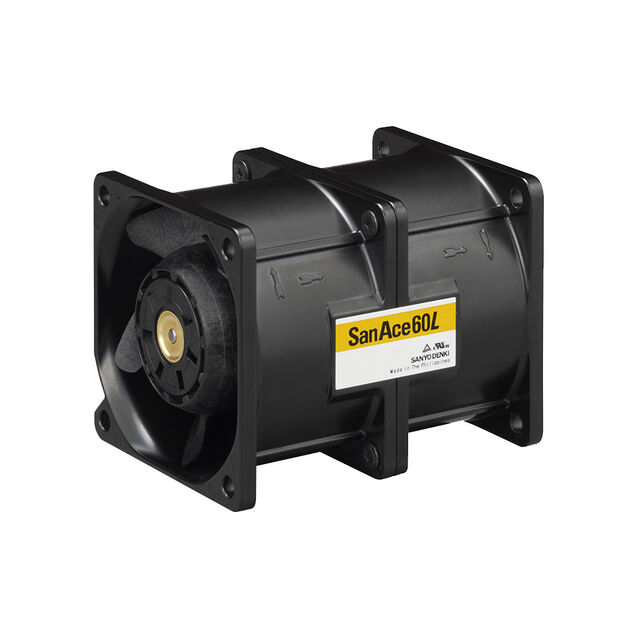

FAN AXIAL DUAL 60X76MM 12VDC

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Current Rating (Amps)	Material - Blade	Bearing Type	Width [x]	Features	Air Flow	Air Flow	RPM [custom]	RPM [custom]	Approval Agency	Power (Watts)	Fan Type	Termination	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Noise
Sanyo Denki America Inc. 9CRLA0612P0G003	100000 Hrs	10.8 VDC	13.2 VDC	Aluminum	3 A	Plastic	Ball	76 mm	Counter-Rotating Locked Rotor Protection PWM Control Speed Sensor (Tach)	2.07 mł/min	74.1 CFM	16500 RPM	17800 RPM	cURus TUV	36 W	Tubeaxial (Dual)	4	310.26 g	0.684 lb	-20 ░C	70 °C	5.62 in H2O	1400 Pa	60 mm	60 mm	12 VDC	70 dB(A)
Sanyo Denki America Inc. 9CRLA0612P0G001	100000 Hrs	10.8 VDC	13.2 VDC	Aluminum	3 A	Plastic	Ball	76 mm	Counter-Rotating Locked Rotor Protection PWM Control Speed Sensor (Tach)	2.07 mł/min	74.1 CFM	16500 RPM	17800 RPM	cURus TUV	36 W	Tubeaxial (Dual)	4	310.26 g	0.684 lb	-20 ░C	70 °C	5.62 in H2O	1400 Pa	60 mm	60 mm	12 VDC	70 dB(A)
