12TS1 Series

Catalog

SWITCH TOGGLE DPDT 20A 125V

Part	Actuator Material	Circuit	Panel Cutout Dimensions [diameter]	Bushing Thread	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Actuator Type	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Mounting Type	Termination Style

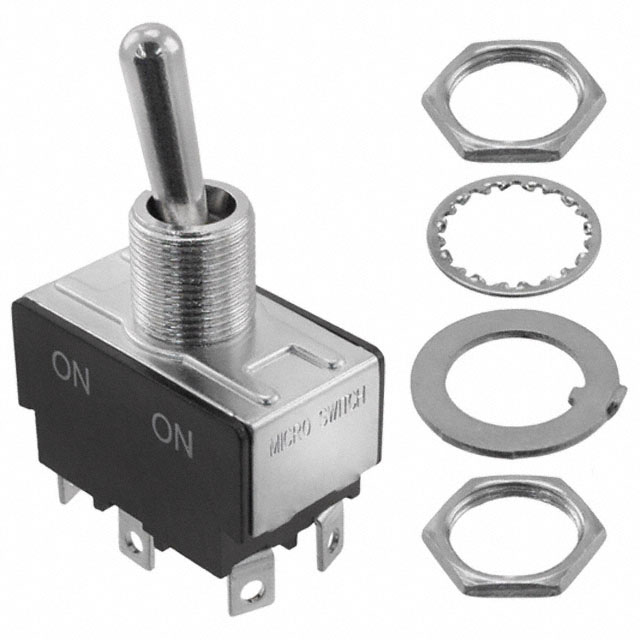

Honeywell Sensing and Productivity Solutions 12TS115-3	Nickel Plated	DPDT	12.4 mm	15/32-32	20 A	On-On	125 V	Standard Round	Non-Illuminated	71 °C	-54 °C	16.51 mm	Panel Mount	Solder Lug

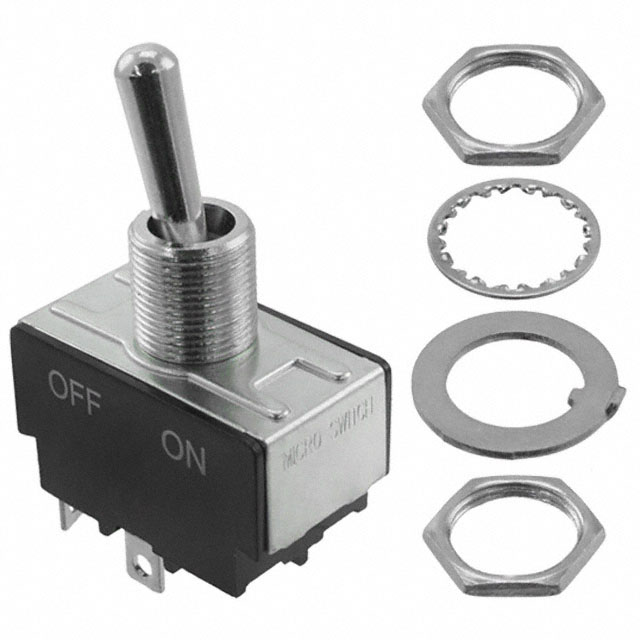

Honeywell Sensing and Productivity Solutions 12TS115-2	Nickel Plated	DPST	12.4 mm	15/32-32	20 A	On-Off	125 V	Standard Round	Non-Illuminated	71 °C	-54 °C	16.51 mm	Panel Mount	Solder Lug

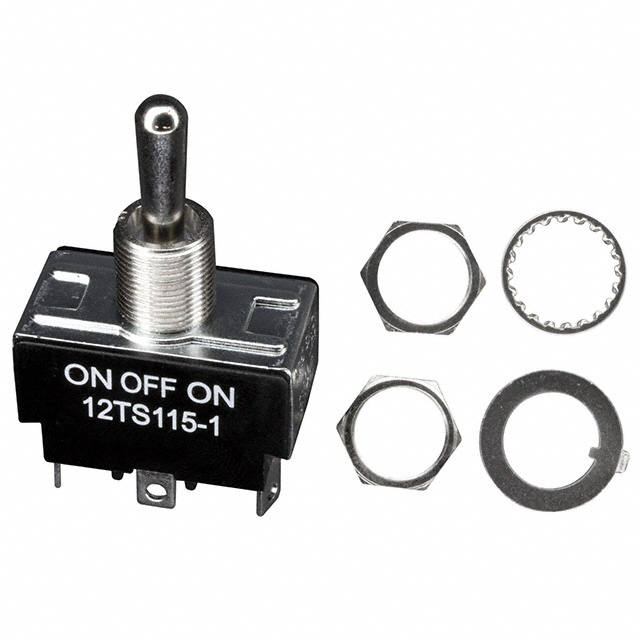

Honeywell Sensing and Productivity Solutions 12TS115-1	Nickel Plated	DPDT	12.4 mm	15/32-32	20 A	On-Off-On	125 V	Standard Round	Non-Illuminated	71 °C	-54 °C	16.51 mm	Panel Mount	Solder Lug

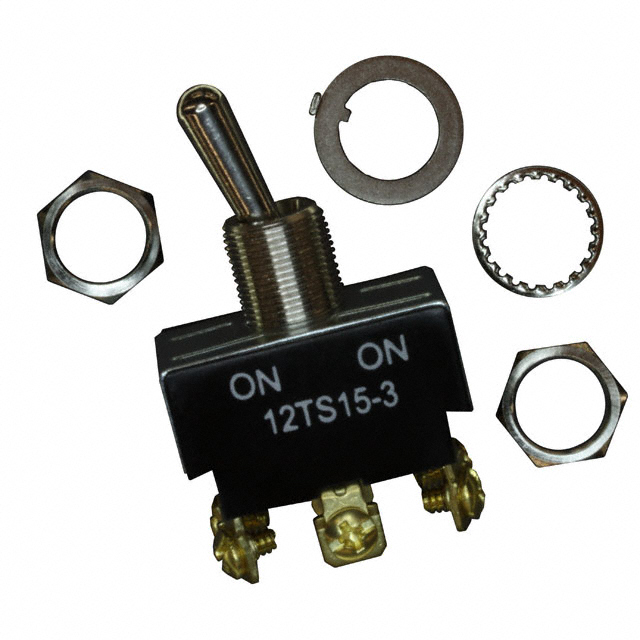

Honeywell Sensing and Productivity Solutions 12TS15-3	Nickel Plated	DPDT	12.4 mm	15/32-32	20 A	On-On	125 V	Standard Round	Non-Illuminated	71 °C	-54 °C	16.51 mm	Panel Mount	Screw Terminal

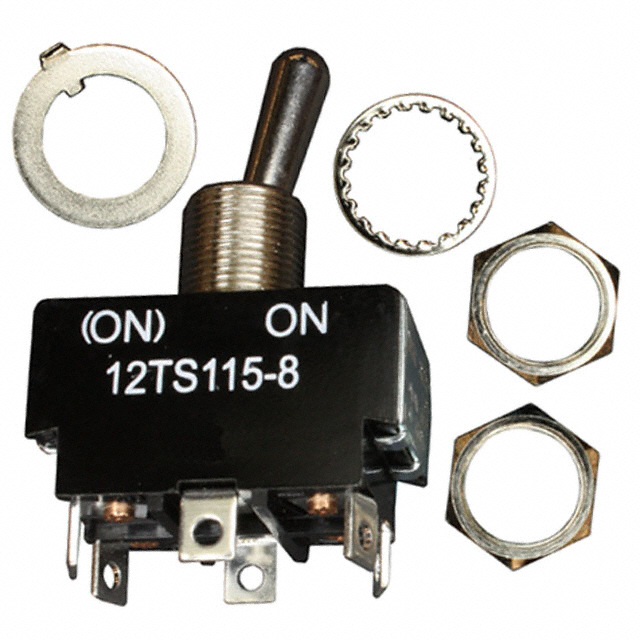

Honeywell Sensing and Productivity Solutions 12TS115-8	Nickel Plated	DPDT	12.4 mm	15/32-32	20 A	On-Mom	125 V	Standard Round	Non-Illuminated	71 °C	-54 °C	16.51 mm	Panel Mount	Solder Lug

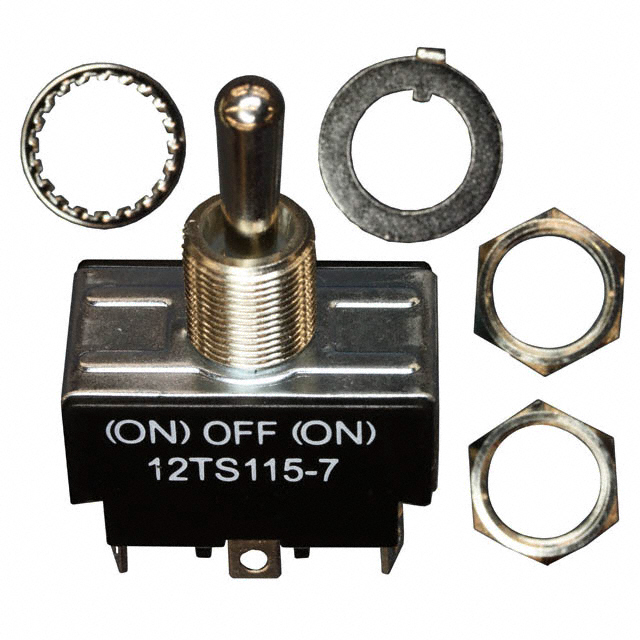

Honeywell Sensing and Productivity Solutions 12TS115-7	Nickel Plated	DPDT	12.4 mm	15/32-32	20 A	Mom-Off-Mom	125 V	Standard Round	Non-Illuminated	71 °C	-54 °C	16.51 mm	Panel Mount	Solder Lug

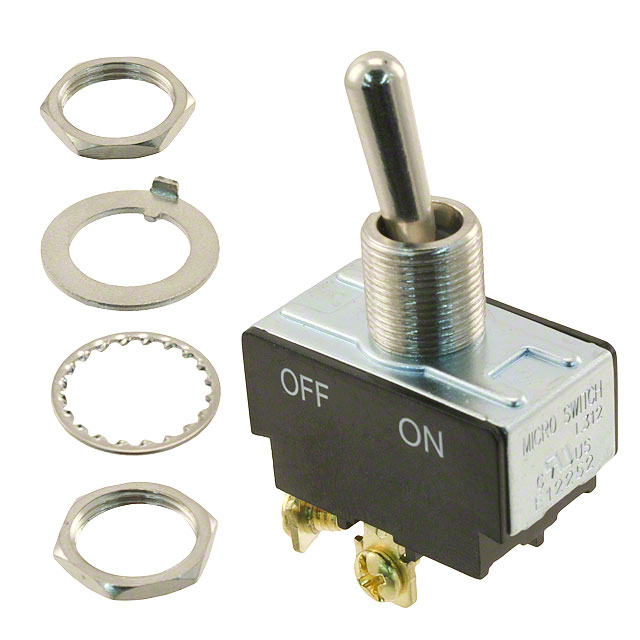

Honeywell Sensing and Productivity Solutions 12TS15-2	Nickel Plated	DPST	12.4 mm	15/32-32	20 A	On-Off	125 V	Standard Round	Non-Illuminated	71 °C	-54 °C	16.51 mm	Panel Mount	Screw Terminal
