9WS0824 Series

Catalog

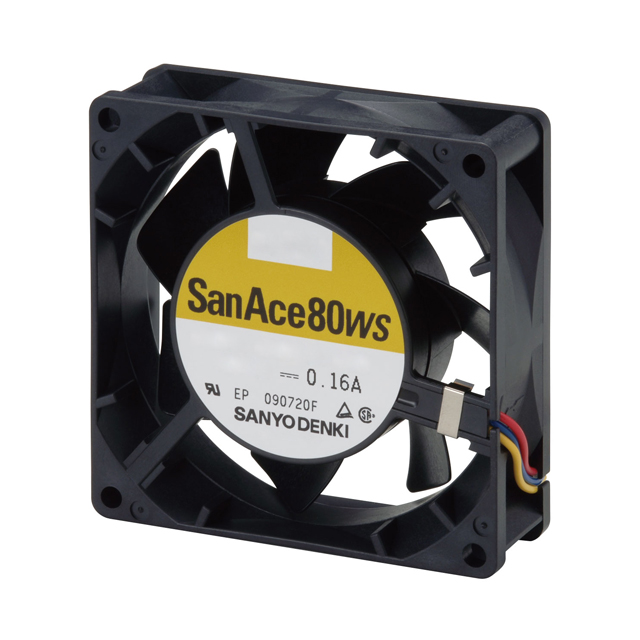

FAN AXIAL 80X25MM 24VDC WIRE

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Material - Frame	Power (Watts)	Termination	Ingress Protection	Static Pressure	Static Pressure	Voltage - Rated	Noise	Weight [custom]	Weight [custom]	Features	RPM	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Bearing Type	Air Flow	Air Flow
Sanyo Denki America Inc. 9WS0824H4D01	0.09 A	40000 Hrs	Plastic	Plastic	2.16 W	3 Wire Leads	IP54 - Dust Protected Water Resistant	0.181 in H2O	45.1 Pa	24 VDC	32 dB	0.265 lb	120.2 g	Locked Rotor Sensor	3100 RPM	25 mm	80 mm	80 mm	CSA TUV UL	-20 ░C	70 °C	Tubeaxial	Ball	33.2 CFM	0.93 mł/min
Sanyo Denki America Inc. 9WS0824M4D01	50 mA	40000 Hrs	Plastic	Plastic	1.2 W	3 Wire Leads	IP54 - Dust Protected Water Resistant	0.094 in H2O	23.4 Pa	24 VDC	23 dB(A)	0.265 lb	120.2 g	Locked Rotor Sensor	2200 RPM	25 mm	80 mm	80 mm	CSA TUV UL	-20 ░C	70 °C	Tubeaxial	Ball	23 CFM	0.644 m³/min
Sanyo Denki America Inc. 9WS0824F401	70 mA	40000 Hrs	Plastic	Plastic	1.68 W	3 Wire Leads	IP54 - Dust Protected Water Resistant	0.138 in H2O	34.3 Pa	24 VDC	28 dB	0.265 lb	120.2 g	Speed Sensor (Tach)	2700 RPM	25 mm	80 mm	80 mm	CSA TUV UL	-20 ░C	70 °C	Tubeaxial	Ball	29.3 CFM	0.82 m³/min
Sanyo Denki America Inc. 9WS0824F402	70 mA	40000 Hrs	Plastic	Plastic	1.68 W	2 Wire Leads	IP54 - Dust Protected Water Resistant	0.138 in H2O	34.3 Pa	24 VDC	28 dB	0.265 lb	120.2 g		2700 RPM	25 mm	80 mm	80 mm	CSA TUV UL	-20 ░C	70 °C	Tubeaxial	Ball	29.3 CFM	0.82 m³/min
Sanyo Denki America Inc. 9WS0824M401	50 mA	40000 Hrs	Plastic	Plastic	1.2 W	3 Wire Leads	IP54 - Dust Protected Water Resistant	0.094 in H2O	23.5 Pa	24 VDC	23 dB(A)	0.265 lb	120.2 g	Speed Sensor (Tach)	2200 RPM	25 mm	80 mm	80 mm	CSA TUV UL	-20 ░C	70 °C	Tubeaxial	Ball	23 CFM	0.644 m³/min
Sanyo Denki America Inc. 9WS0824F4021	70 mA	40000 Hrs	Plastic	Plastic	1.68 W	2 Wire Leads	IP54 - Dust Protected Water Resistant	0.138 in H2O	34.3 Pa	24 VDC	28 dB	0.265 lb	120.2 g		2700 RPM	25 mm	80 mm	80 mm	CSA TUV UL	-20 ░C	70 °C	Tubeaxial	Ball	29.3 CFM	0.82 m³/min
Sanyo Denki America Inc. 9WS0824H4021	0.09 A	40000 Hrs	Plastic	Plastic	2.16 W	2 Wire Leads	IP54 - Dust Protected Water Resistant	0.181 in H2O	45.1 Pa	24 VDC	32 dB	0.265 lb	120.2 g		3100 RPM	25 mm	80 mm	80 mm	CSA TUV UL	-20 ░C	70 °C	Tubeaxial	Ball	33.2 CFM	0.93 mł/min
