503772 Series

Manufacturer: Molex

Catalog

CONN BOARD TO BOARD RCP 10 POS 0.4MM SOLDER ST TOP ENTRY SMD SLIMSTACK T/R

Part	Height Above Board [z]	Height Above Board [z]	Contact Finish	Features	Connector Type	Number of Rows [custom]	Mated Stacking Heights	Mounting Type	Number of Positions	Pitch	Pitch	Number of Positions [custom]
Molex 5037721020	0.65 mm	0.026 "	Gold	Pick and Place Solder Retention	Receptacle Outer Shroud Contacts	2	0.8 mm	Surface Mount	10	0.4 mm	0.016 in
Molex 5037723420	0.65 mm	0.026 "	Gold	Pick and Place Solder Retention	Receptacle Outer Shroud Contacts	2	0.8 mm	Surface Mount		0.4 mm	0.016 in	34
Molex 5037722020	0.65 mm	0.026 "	Gold	Pick and Place Solder Retention	Receptacle Outer Shroud Contacts	2	0.8 mm	Surface Mount	20	0.4 mm	0.016 in
Molex 5037725020	0.65 mm	0.026 "	Gold	Pick and Place Solder Retention	Receptacle Outer Shroud Contacts	2	0.8 mm	Surface Mount	50	0.4 mm	0.016 in

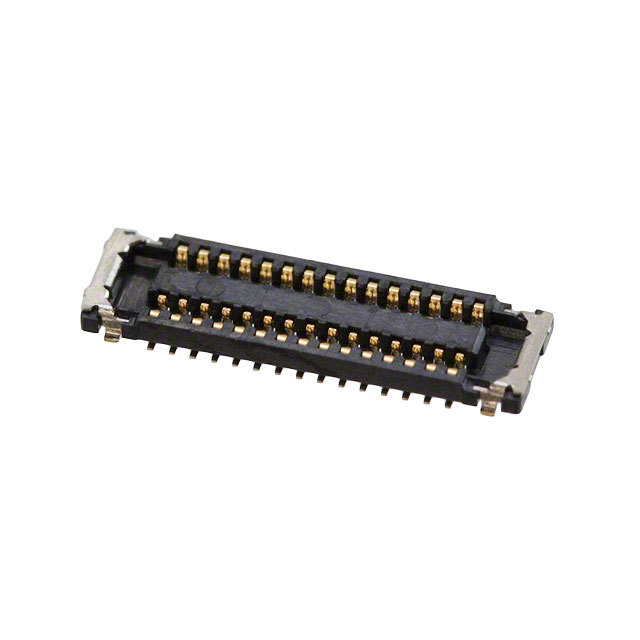

Molex 5037723010	0.65 mm	0.026 "	Gold	Solder Retention	Receptacle Outer Shroud Contacts	2	0.8 mm	Surface Mount	30	0.4 mm	0.016 in
Molex 5037723020	0.65 mm	0.026 "	Gold	Pick and Place Solder Retention	Receptacle Outer Shroud Contacts	2	0.8 mm	Surface Mount	30	0.4 mm	0.016 in

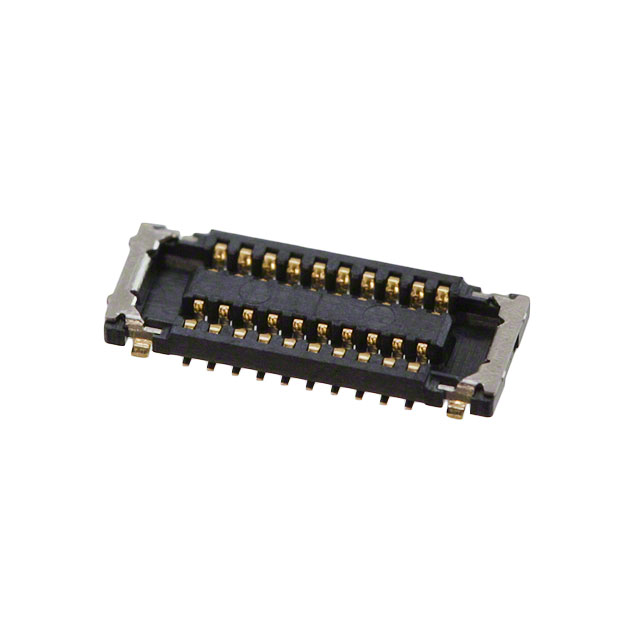

Molex 5037722010	0.65 mm	0.026 "	Gold	Solder Retention	Receptacle Outer Shroud Contacts	2	0.8 mm	Surface Mount	20	0.4 mm	0.016 in

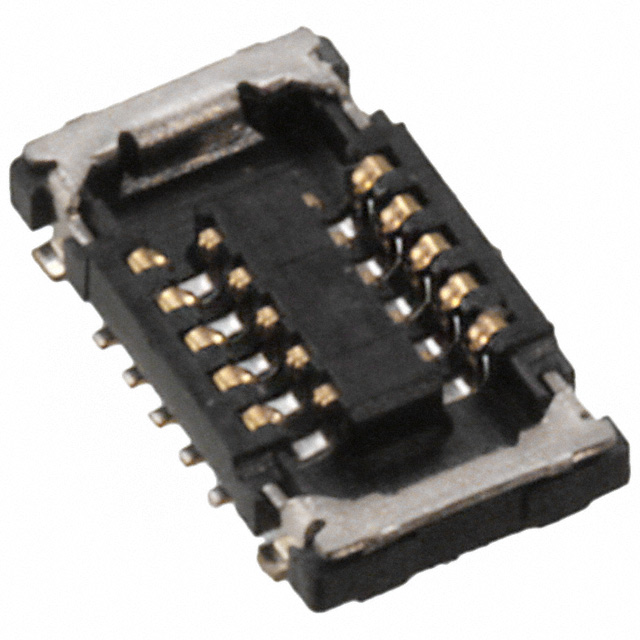

Molex 5037721010	0.65 mm	0.026 "	Gold	Solder Retention	Receptacle Outer Shroud Contacts	2	0.8 mm	Surface Mount	10	0.4 mm	0.016 in
Molex 5037723011

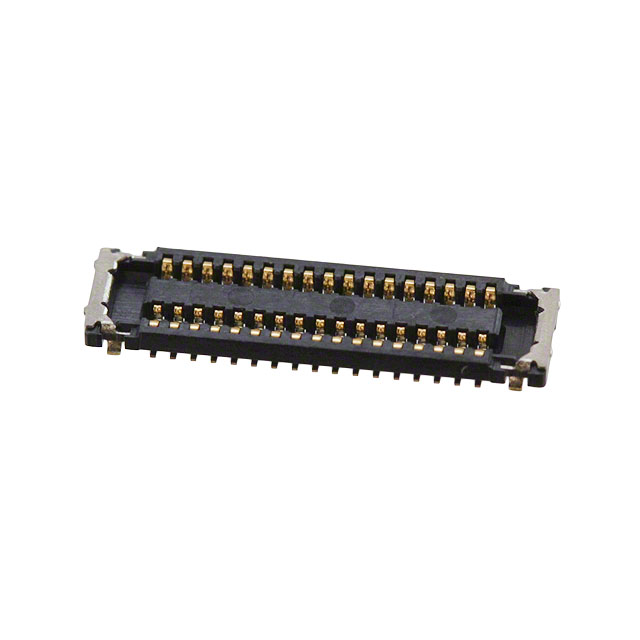

Molex 5037723410	0.65 mm	0.026 "	Gold	Solder Retention	Receptacle Outer Shroud Contacts	2	0.8 mm	Surface Mount		0.4 mm	0.016 in	34
