HSDWBRPPCB Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

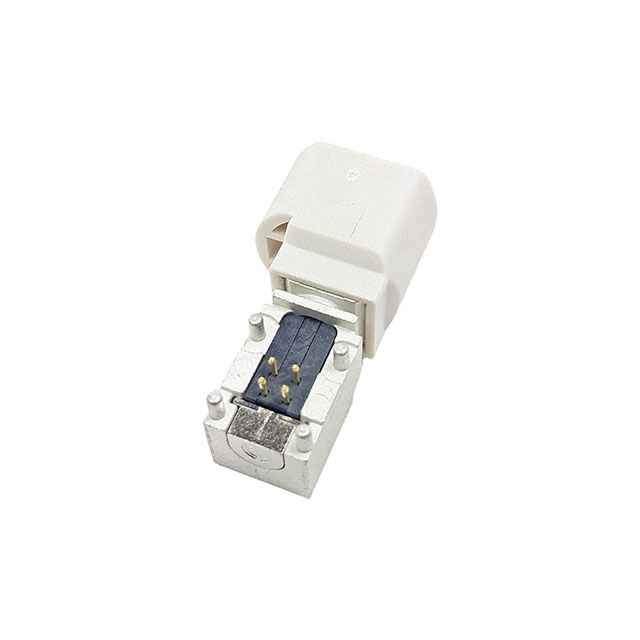

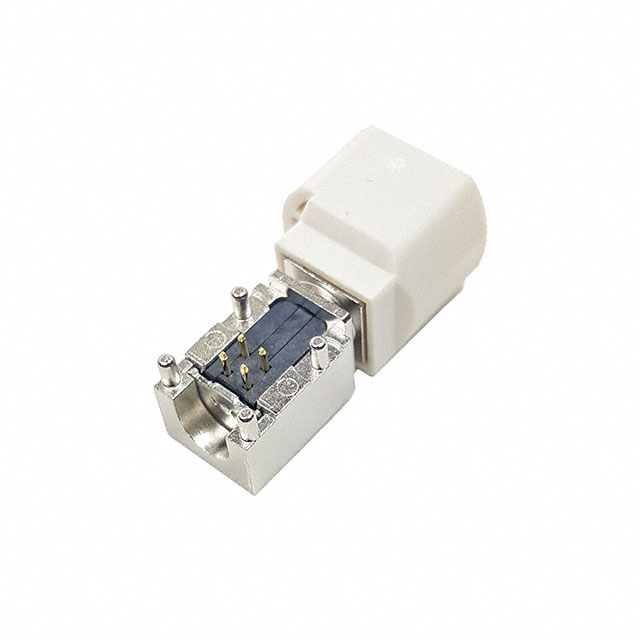

CONN HSD+0 R/A PLUG B CODE
| Part | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Body Material | Center Contact Material | Features | Mounting Type | Contact Termination | Fastening Type | Housing Color | Number of Ports | Connector Style | Connector Type | Shield Termination | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Nickel | Thermoplastic | -40 C | 105 ░C | 25 | Gold | Zinc Alloy | Copper Alloy | Code B | Right Angle Through Hole | Solder | Latch Lock | White | 1 | Fakra HSD® Quadraxial | Plug Male Pin | Solder | 100 Ohms |
 Amphenol ICC (Commercial Products) | Tin | Thermoplastic | -40 C | 105 ░C | 25 | Gold | Zinc Alloy | Copper Alloy | Code B | Right Angle Through Hole | Solder | Latch Lock | White | 1 | Fakra HSD® Quadraxial | Plug Male Pin | Solder | 100 Ohms |
 Amphenol ICC (Commercial Products) | Tin | Thermoplastic | -40 C | 105 ░C | 25 | Gold | Zinc Alloy | Copper Alloy | Code B | Right Angle Through Hole | Solder | Latch Lock | White | 1 | Fakra HSD® Quadraxial | Plug Male Pin | Solder | 100 Ohms |
