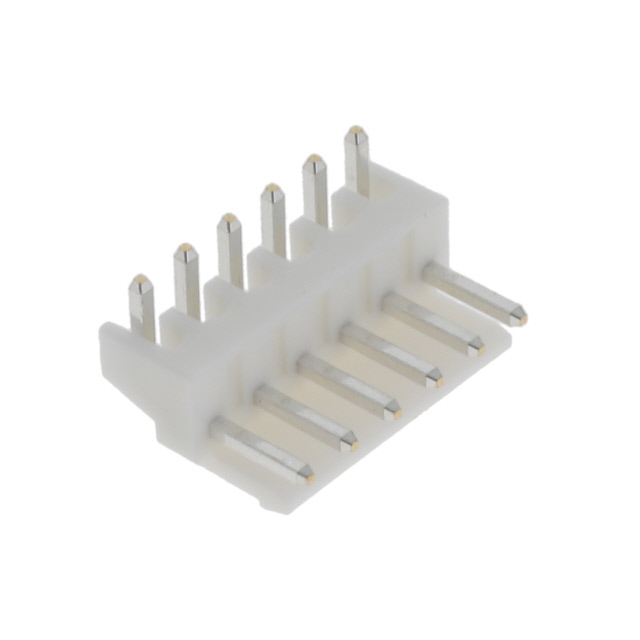

S6P-VH(L Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 6POS 3.96MM
| Part | Insulation Material | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Contact Material | Fastening Type | Mounting Type | Voltage Rating | Connector Type | Number of Positions | Number of Rows | Contact Finish - Post | Shrouding | Insulation Color | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Termination | Style | Contact Type | Contact Length - Post | Contact Length - Post | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Nylon 6/6 Polyamide (PA66) | 0.335 " | 8.51 mm | 0.303 in | 7.7 mm | 10 A | Brass | Locking Ramp | Right Angle Through Hole | 250 V | Header | 6 | 1 | Tin | Shrouded - 1 Wall | Natural | All | 85 °C | -25 °C | UL94 V-0 | 3.96 mm | 0.156 in | Solder | Board to Cable/Wire | Male Pin | 0.142 in | 3.6 mm | Square |
