WR95E1000 Series

Catalog

AC/DC WALL MOUNT ADAPTER 12V 12W

Part	Region Utilized	Applications	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Cord Length	Cord Length	Efficiency	No Load Power Consumption	Voltage - Output	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector	Output Connector [x]	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Input Type	Form	Input Connector

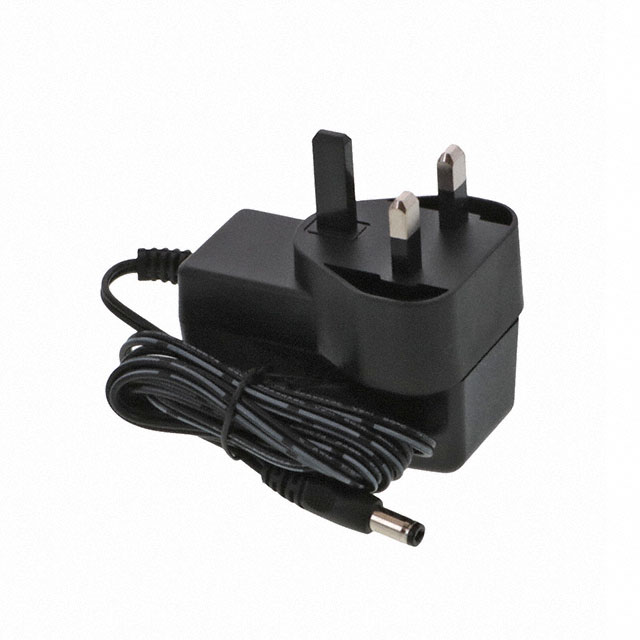

GlobTek, Inc. WR95E1000LCP-F(R6B)	United Kingdom	ITE (Commercial)	Positive Center	50 °C	0 °C	CB CE EAC LPS UkrSEPRO	60.2 in	1.53 m	Level VI	75 mW	12 V	49 mm	1.93 in	49 mm	1.93 in	2.72 in	69 mm	1 A	2.5 mm 5.5 mm	Barrel Plug	11 mm	12 W	264 VAC	90 VAC	60950-1	Fixed Blade	Wall Mount	BS 1363
GlobTek, Inc. WR95E1000CCP-F(R6B)	United Kingdom	ITE (Commercial)	Positive Center	50 °C	0 °C	CB CE EAC LPS UkrSEPRO	59 in	1.5 m	Level VI	75 mW	12 V	49 mm	1.93 in	49 mm	1.93 in	2.72 in	69 mm	1 A	2.1 mm 5.5 mm	Barrel Plug	11 mm	12 W	264 VAC	90 VAC	60950-1	Fixed Blade	Wall Mount	BS 1363
