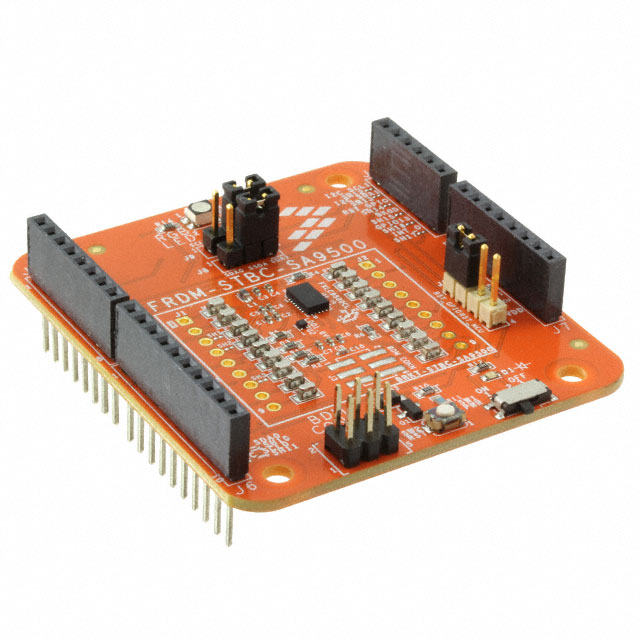

FRDM-STBC Series
Manufacturer: NXP USA Inc.
Beta
⌘K
FXOS8700 DIGITAL SENSOR AND FXAS21002 DIGITAL GYROSCOPE FREEDOM SHIELD BOARD
| Part | Supplied Contents | Utilized IC / Part | Sensor Type | Contents | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Sensing Range - Acceleration | Embedded Bit Width | Embedded | Axis Count | Sensitivity (Count per g) - Setting 2 | Sensitivity (Count per g) - Setting 1 | Sensitivity (Count per g) - Setting 3 | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | Board(s) | FXAS21002 FXOS8700 | Accelerometer Gyroscope Magnetometer | Board | ||||||||||
 NXP USA Inc. | Board(s) | FXLC95000CL | 3 Axis Accelerometer | Board | 1.89 V | 1.71 V | ±2g 4g 8g | 32 bit | MCU Yes | 3 Axis | 0.122 mg/LSB | 0.061 mg/LSB | 0.244 mg/LSB | I2C Serial SPI |
