RFN-1009 Series
Manufacturer: RF Industries
Beta
⌘K

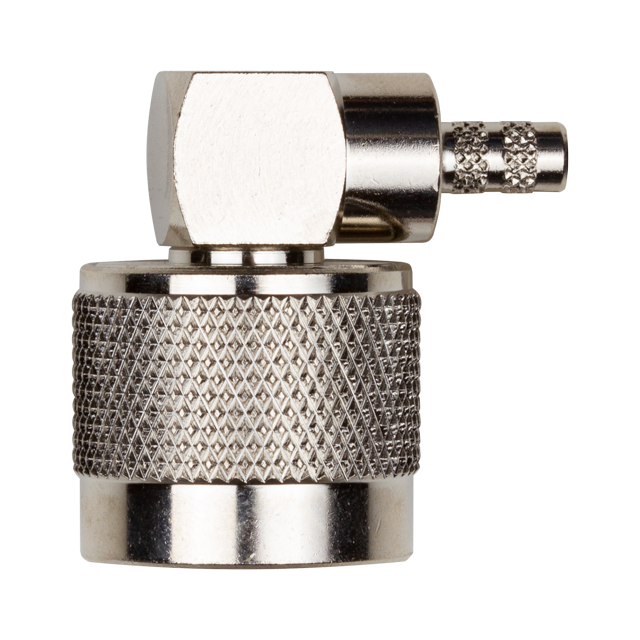

N MALE R/A CRIMP; 50 OHMS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Body Material | Voltage Rating | Dielectric Material | Impedance | Fastening Type | Number of Ports | Connector Type | Center Contact Material | Housing Color | Contact Termination | Frequency - Max [Max] | Connector Style | Shield Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | -65 ░C | 85 °C | Nickel | Gold | Brass | 1000 VDC | Polytetrafluoroethylene (PTFE) | 50 Ohms | Threaded | 1 | Plug Male Pin | Brass | Silver | Crimp | 11 GHz | N Type | Crimp | Free Hanging (In-Line) Right Angle |
