M2028TY Series

Catalog

SWITCH ROCKER DPDT 6A 125V

Part	Mechanical Life	Electrical Life	Circuit	Switch Function	Mounting Type	Features	Actuator Type	Voltage Rating - AC	Color - Actuator/Cap	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Approval Agency	Termination Style	Current Rating (Amps)	Voltage Rating - DC	Illumination Type, Color

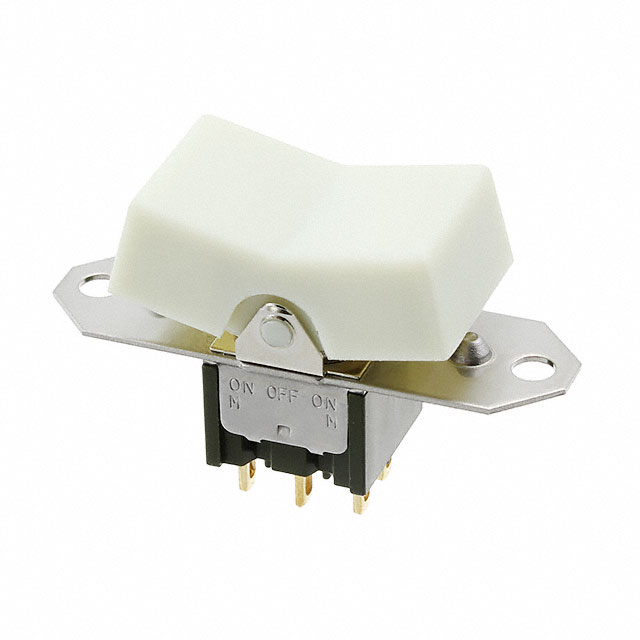

NKK Switches M2028TYA01-JB	50000 Cycles	50000 Cycles	DPDT	Mom-Off-Mom	Flange Panel Mount	Epoxy Sealed Terminals	Concave	125 V	White	16 mm	28.5 mm	85 °C	-30 ░C	No Marking	CSA UL	Solder Lug	3 A 6 A	30 V
NKK Switches M2028TYW01-JG	50000 Cycles	25000 Steps	DPDT	Mom-Off-Mom	Flange Panel Mount	Epoxy Sealed Terminals	Concave	125 V	Blue	16 mm	28.5 mm	85 °C	-30 ░C	No Marking	CSA UL	Solder Lug	3 A 6 A	30 V
NKK Switches M2028TYW01	50000 Cycles	25000 Steps	DPDT	Mom-Off-Mom	Flange Panel Mount	Epoxy Sealed Terminals	Actuator Arm Cap Required	125 V		16 mm	28.5 mm	85 °C	-30 ░C	Varies by Cap	CSA UL	Solder Lug	3 A 6 A	30 V

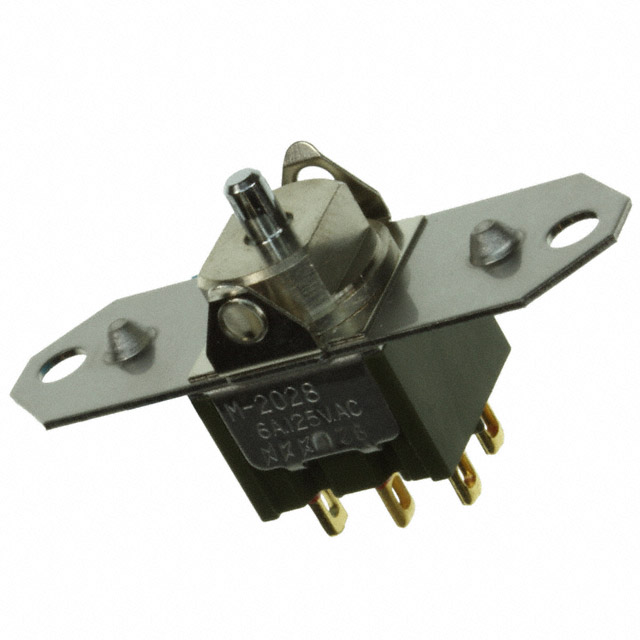

NKK Switches M2028TYA01	50000 Cycles	50000 Cycles	DPDT	Mom-Off-Mom	Flange Panel Mount	Epoxy Sealed Terminals	Actuator Arm Cap Required	125 V		16 mm	28.5 mm	85 °C	-30 ░C	Varies by Cap	CSA UL	Solder Lug	3 A 6 A	30 V
NKK Switches M2028TYW01-JC	50000 Cycles	25000 Steps	DPDT	Mom-Off-Mom	Panel Mount Snap-In		Concave (Curved) - Illuminated	125 V	Black	16 mm	28.5 mm	85 °C	-30 ░C	No Marking	CSA UL	Solder Lug	3 A 6 A	30 V	LED Red
NKK Switches M2028TYW01-HC	50000 Cycles	25000 Steps	DPDT	Mom-Off-Mom	Flange Panel Mount	Epoxy Sealed Terminals	Paddle	125 V	Red	16 mm	28.5 mm	85 °C	-30 ░C	No Marking	CSA UL	Solder Lug	3 A 6 A	30 V
NKK Switches M2028TYW01-JE	50000 Cycles	25000 Steps	DPDT	Mom-Off-Mom	Flange Panel Mount	Epoxy Sealed Terminals	Concave	125 V	Yellow	16 mm	28.5 mm	85 °C	-30 ░C	No Marking	CSA UL	Solder Lug	3 A 6 A	30 V
NKK Switches M2028TYW01-JB	50000 Cycles	25000 Steps	DPDT	Mom-Off-Mom	Flange Panel Mount	Epoxy Sealed Terminals	Concave	125 V	White	16 mm	28.5 mm	85 °C	-30 ░C	No Marking	CSA UL	Solder Lug	3 A 6 A	30 V
NKK Switches M2028TYW01-HG	50000 Cycles	25000 Steps	DPDT	Mom-Off-Mom	Flange Panel Mount	Epoxy Sealed Terminals	Paddle	125 V	Blue	16 mm	28.5 mm	85 °C	-30 ░C	No Marking	CSA UL	Solder Lug	3 A 6 A	30 V
