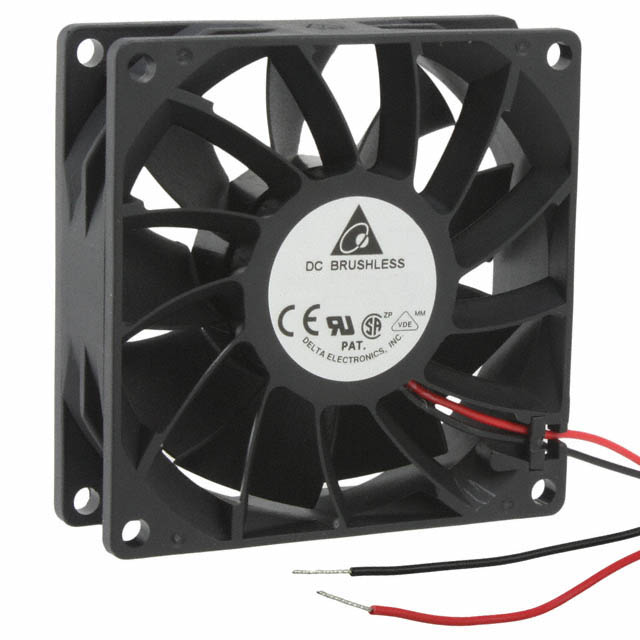

FFB0812 Series

Catalog

FAN AXIAL 80X25.4MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Lifetime @ Temp.	Fan Type	Noise	Bearing Type	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Width [y]	RPM	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Air Flow	Air Flow	Approval Agency	Features	Ingress Protection	Static Pressure

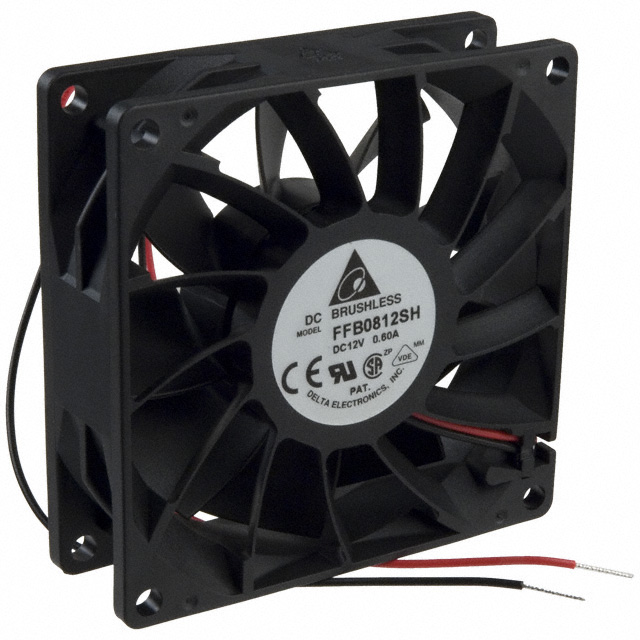

Delta Electronics FFB0812SH	0.5 A	Plastic	13.2 VDC	4 VDC	Plastic	70000 Hrs	Tubeaxial	48.6 dB(A)	Ball	97.6 Pa	0.392 in H2O	0.253 lb	114.76 g	25.4 mm	4500 RPM	80 mm	80 mm	12 VDC	2 Wire Leads	-10 °C	60 °C	6 W	67 CFM	1.88 m³/min	CE CSA UL VDE

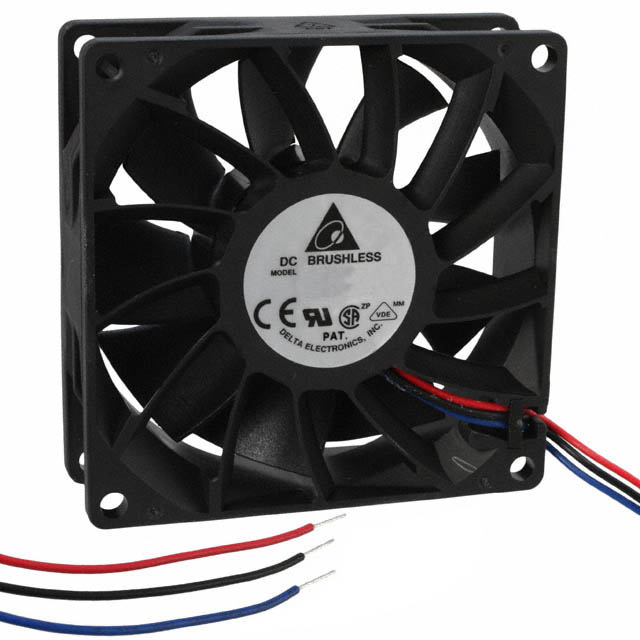

Delta Electronics FFB0812SH-RR0		Plastic			Plastic		Tubeaxial		Ball			0.253 lb	114.76 g	25.4 mm		80 mm	80 mm	12 VDC	3 Wire Leads			6 W				Locked Rotor Sensor

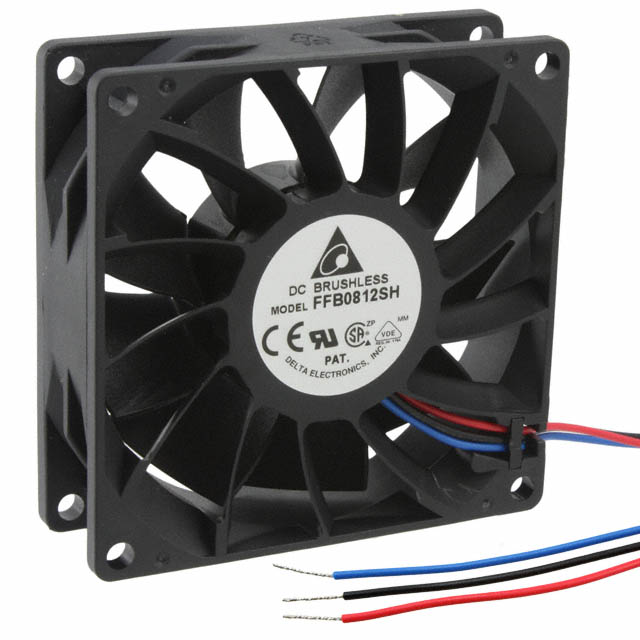

Delta Electronics FFB0812SH-F00	0.5 A	Plastic	13.2 VDC	4 VDC	Plastic	70000 Hrs	Tubeaxial	48.6 dB(A)	Ball	97.6 Pa	0.392 in H2O	0.253 lb	114.76 g	25.4 mm	4500 RPM	80 mm	80 mm	12 VDC	3 Wire Leads	-10 °C	60 °C	6 W	67 CFM	1.88 m³/min	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics FFB0812SHE	580 mA	Plastic	13.8 VDC	7 V	Plastic	70000 Hrs	Tubeaxial	48.5 dB(A)	Ball	147.2 Pa	0.591 in H2O	0.375 lb	170.1 g	38 mm	4900 RPM	80 mm	80 mm	12 VDC	2 Wire Leads	-10 °C	70 °C	6.96 W	68.5 CFM	1.92 m³/min	CE CSA UL VDE

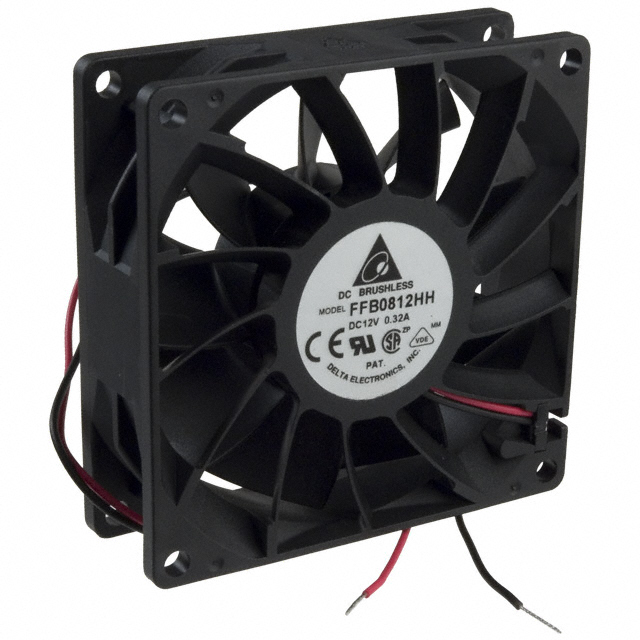

Delta Electronics FFB0812HH	0.26 A	Plastic	13.2 VDC	7 V	Plastic	70000 Hrs	Tubeaxial	41.7 dB(A)	Ball	57 Pa	0.229 in H2O	0.253 lb	114.76 g	25.4 mm	3500 RPM	80 mm	80 mm	12 VDC	2 Wire Leads	-10 °C	60 °C	3.12 W	47.2 CFM	1.32 m³/min	CE CSA UL VDE

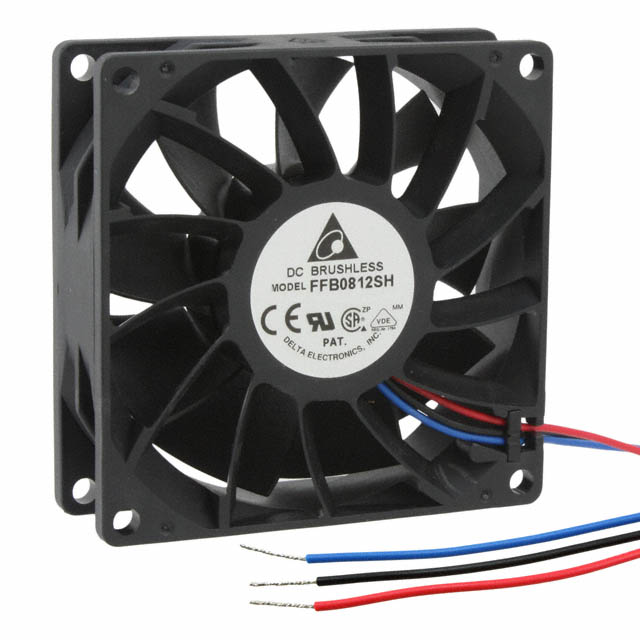

Delta Electronics FFB0812SH-R00	0.5 A	Plastic	13.2 VDC	4 VDC	Plastic	70000 Hrs	Tubeaxial	48.6 dB(A)	Ball	97.6 Pa	0.392 in H2O	0.253 lb	114.76 g	25.4 mm	4500 RPM	80 mm	80 mm	12 VDC	3 Wire Leads	-10 °C	60 °C	6 W	67 CFM	1.88 m³/min	CE CSA UL VDE	Locked Rotor Sensor

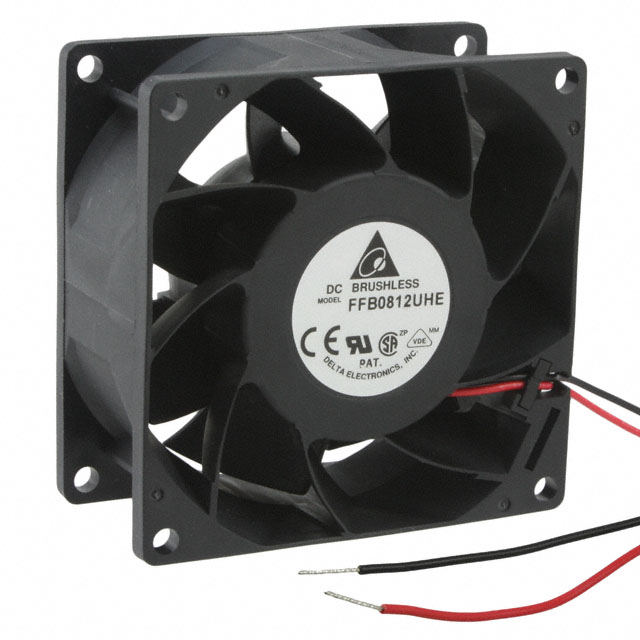

Delta Electronics FFB0812UHE	1.5 A	Plastic	13.8 VDC	7 V	Plastic	40 °C 50000 Hrs	Tubeaxial	62.2 dB(A)	Ball	307.1 Pa	1.233 in H2O	0.375 lb	170.1 g	38 mm	7500 RPM	80 mm	80 mm	12 VDC	2 Wire Leads	-10 °C	70 °C	18 W	102 CFM	2.86 m³/min	CE CSA UL VDE

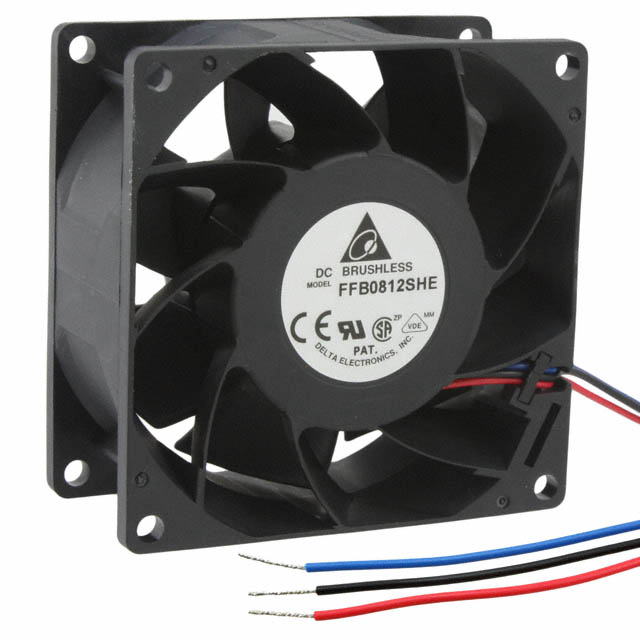

Delta Electronics FFB0812SHE-F00	580 mA	Plastic	13.8 VDC	7 V	Plastic	70000 Hrs	Tubeaxial	48.5 dB(A)	Ball	147.2 Pa	0.591 in H2O	0.375 lb	170.1 g	38 mm	4900 RPM	80 mm	80 mm	12 VDC	3 Wire Leads	-10 °C	70 °C	6.96 W	68.5 CFM	1.92 m³/min	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics FFB0812VH-T500	0.34 A	Plastic	13.2 VDC	4 VDC	Plastic	70000 Hrs	Tubeaxial	45.4 dB(A)	Ball	72.5 Pa	0.291 in H2O	0.254 lb	115.21 g	25.4 mm	4000 RPM	80 mm	80 mm	12 VDC	2 Wire Leads	-10 °C	60 °C		54.6 CFM	1.53 mł/min	CE CSA UL VDE		IP55 - Dust Protected Water Resistant

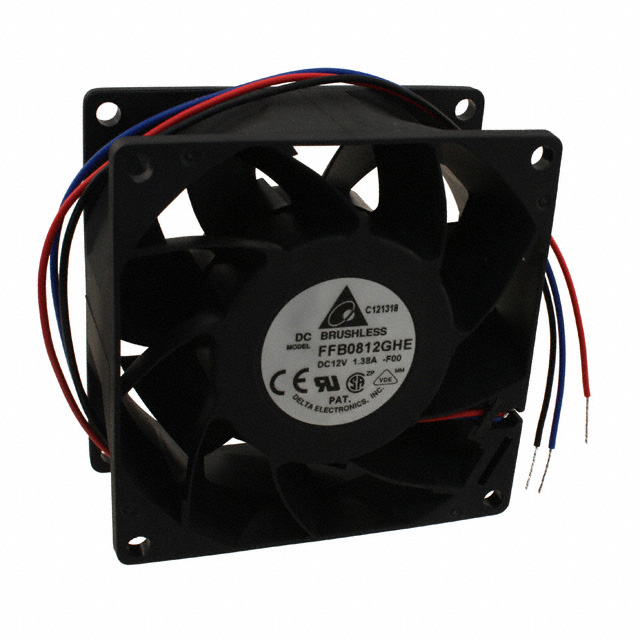

Delta Electronics FFB0812GHE-F00	1.15 A	Plastic	13.2 VDC	7 V	Plastic	40 °C 50000 Hrs	Tubeaxial	59.8 dB(A)	Ball	229.7 Pa		0.375 lb	170.1 g	38 mm	6600 RPM	80 mm	80 mm	12 VDC	3 Wire Leads	-10 °C	70 °C	13.8 W	89.9 CFM	2.52 m³/min	CE CSA UL VDE	Locked Rotor Protection Speed Sensor (Tach)		0.922 in H2O
