SK34 Series
Manufacturer: Surge
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DIODE SCHOTTKY 40V 3A DO214AA
| Part | Mounting Type | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Voltage - DC Reverse (Vr) (Max) | Voltage - Forward (Vf) (Max) | Capacitance | Current - Reverse Leakage | Package / Case | Technology | Package Name | Current - Average Rectified (Io) | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

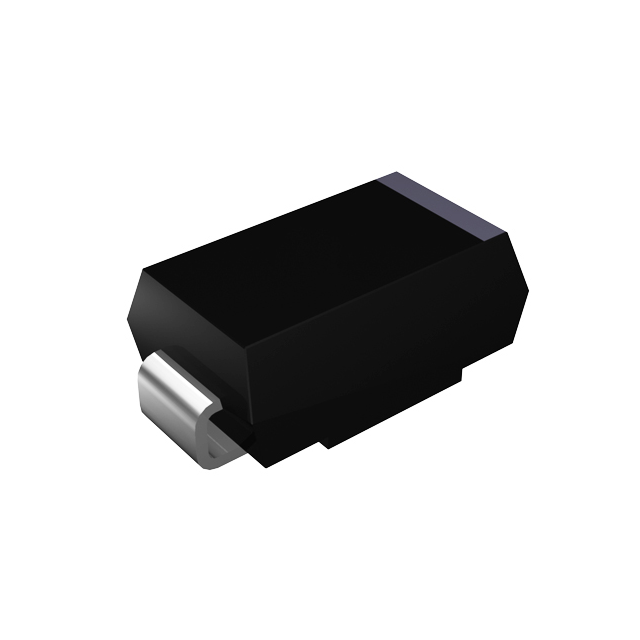

 Surge | Surface Mount | 150 °C | -55 °C | 500 ns | 200 mA | 40 V | 500 mV | 250 pF | 200 µA | DO-214AA SMB | Schottky | DO-214AA (SMB) | 3 A | ||

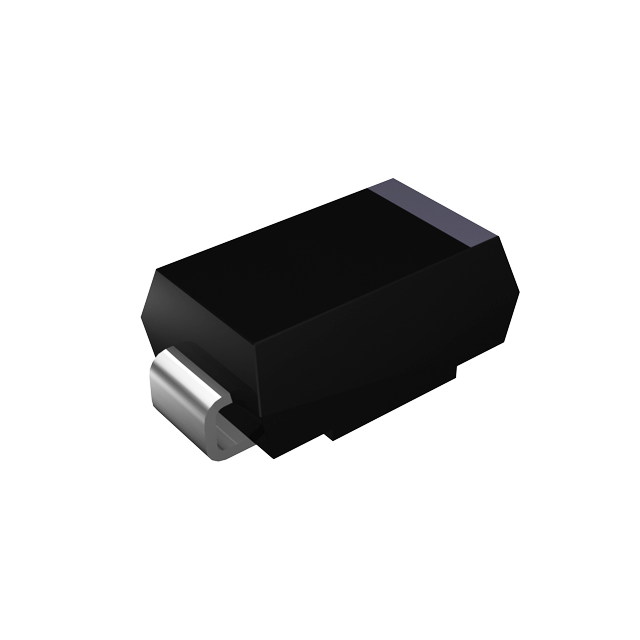

 Surge | Surface Mount | 150 °C | -55 °C | 500 ns | 200 mA | 40 V | 500 mV | 250 pF | 200 µA | DO-214AC SMA | Schottky | DO-214AC (SMA) | 3 A | AEC-Q101 | Automotive |

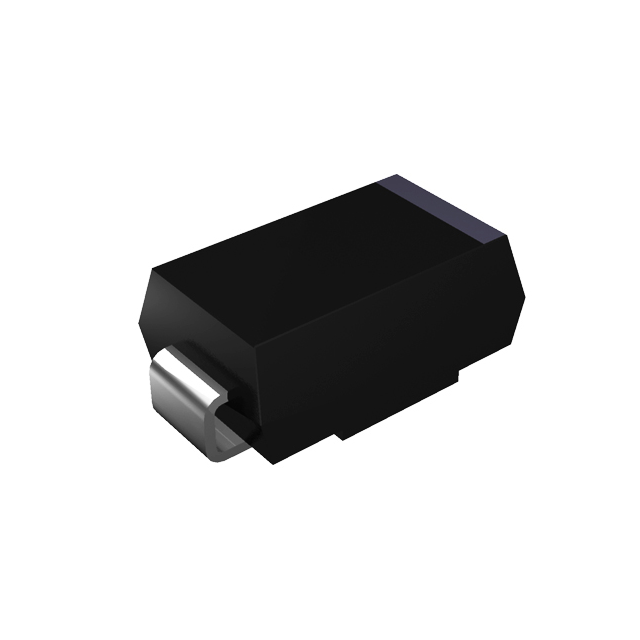

 Surge | Surface Mount | 150 °C | -55 °C | 500 ns | 200 mA | 40 V | 550 mV | 250 pF | 200 µA | DO-214AB SMC | Schottky | DO-214AB (SMC) | 3 A |
