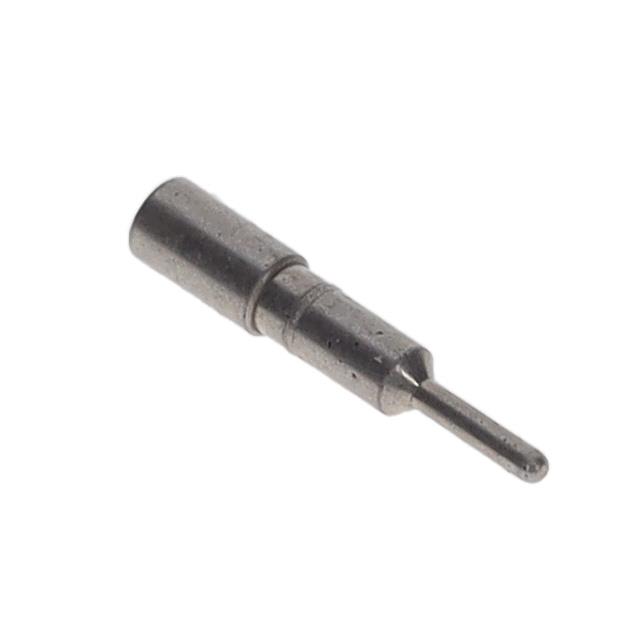

1313-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .037-.043" .118"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Tail Diameter [diameter]	Tail Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Mounting Hole Diameter	Mounting Hole Diameter	Tail Type	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 1313-0-15-01-18-14-04-0	-55 C	125 °C	4.7 mm	0.185 in	0.043 in	1.09 mm	0.94 mm	0.037 in	0.024 in	0.61 mm	1.37 mm	0.054 in	Press-Fit	1.42 mm	0.056 "	Standard Tail	Gold	1.65 mm	0.065 in	0.25 Ám	10 Áin	Beryllium Copper	0.37 in	9.4 mm
Mill-Max Manufacturing Corp. 1313-0-15-15-18-27-04-0	-55 C	125 °C	4.7 mm	0.185 in	0.043 in	1.09 mm	0.94 mm	0.037 in	0.024 in	0.61 mm	1.37 mm	0.054 in	Press-Fit	1.42 mm	0.056 "	Standard Tail	Gold	1.65 mm	0.065 in	0.76 Ám	30 Áin	Beryllium Copper	0.37 in	9.4 mm
Mill-Max Manufacturing Corp. 1313-0-15-15-18-14-04-0	-55 C	125 °C	4.7 mm	0.185 in	0.043 in	1.09 mm	0.94 mm	0.037 in	0.024 in	0.61 mm	1.37 mm	0.054 in	Press-Fit	1.42 mm	0.056 "	Standard Tail	Gold	1.65 mm	0.065 in	0.25 Ám	10 Áin	Beryllium Copper	0.37 in	9.4 mm
Mill-Max Manufacturing Corp. 1313-0-15-01-18-01-04-0	-55 C	125 °C	4.7 mm	0.185 in	0.043 in	1.09 mm	0.94 mm	0.037 in	0.024 in	0.61 mm	1.37 mm	0.054 in	Press-Fit	1.42 mm	0.056 "	Standard Tail	Tin-Lead	1.65 mm	0.065 in	5.08 Ám	200 Áin	Beryllium Copper	0.37 in	9.4 mm
Mill-Max Manufacturing Corp. 1313-0-15-01-18-27-04-0	-55 C	125 °C	4.7 mm	0.185 in	0.043 in	1.09 mm	0.94 mm	0.037 in	0.024 in	0.61 mm	1.37 mm	0.054 in	Press-Fit	1.42 mm	0.056 "	Standard Tail	Gold	1.65 mm	0.065 in	0.76 Ám	30 Áin	Beryllium Copper	0.37 in	9.4 mm
Mill-Max Manufacturing Corp. 1313-0-15-80-18-80-04-0	-55 C	125 °C	4.7 mm	0.185 in	0.043 in	1.09 mm	0.94 mm	0.037 in	0.024 in	0.61 mm	1.37 mm	0.054 in	Press-Fit	1.42 mm	0.056 "	Standard Tail	Tin	1.65 mm	0.065 in	5.08 Ám	200 Áin	Beryllium Copper	0.37 in	9.4 mm
