895-051 Series
Manufacturer: EDAC Inc.
Beta
⌘K

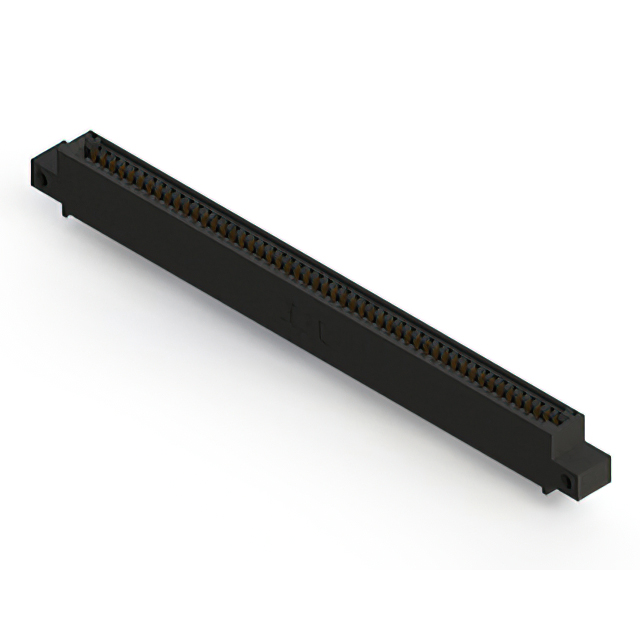

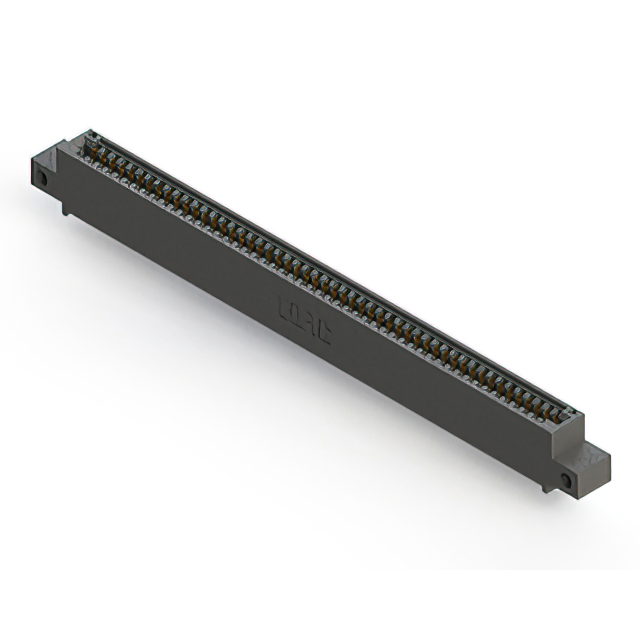

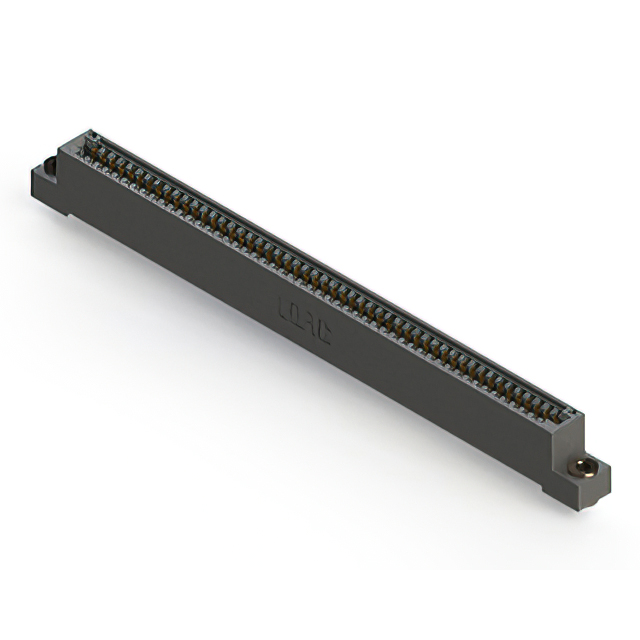

CONN EDGE SINGLE FML 51POS 0.100
| Part | Termination Rows | Material - Insulation | Termination | Contact Finish | Number of Positions/Bay/Row [custom] | Contact Type | Read Out | Card Type | Color | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Contact Material | Gender | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | Gold | 51 | Cantilever | Single | Non Specified - Single Edge | Black | 1 | 0.156 " | 3.96 mm | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Copper Alloy | Female | Through Hole | 125 °C | -40 C | 51 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | Gold | 51 | Cantilever | Single | Non Specified - Single Edge | Black | 1 | 0.116 " | 2.95 mm | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Copper Alloy | Female | Through Hole | 125 °C | -40 C | 51 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | Gold | 51 | Cantilever | Single | Non Specified - Single Edge | Black | 1 | 0.116 " | 2.95 mm | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Copper Alloy | Female | Through Hole | 125 °C | -40 C | 51 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | Gold | 51 | Cantilever | Single | Non Specified - Single Edge | Black | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Copper Alloy | Female | Through Hole | 125 °C | -40 C | 51 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | Gold | 51 | Cantilever | Single | Non Specified - Single Edge | Black | 1 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Copper Alloy | Female | Through Hole | 125 °C | -40 C | 51 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | Gold | 51 | Cantilever | Single | Non Specified - Single Edge | Black | 1 | 0.156 " | 3.96 mm | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Copper Alloy | Female | Through Hole | 125 °C | -40 C | 51 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | Gold | 51 | Cantilever | Single | Non Specified - Single Edge | Black | 1 | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Copper Alloy | Female | Through Hole | 125 °C | -40 C | 51 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Wire Wrap | Gold | 51 | Cantilever | Single | Non Specified - Single Edge | Black | 1 | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Copper Alloy | Female | Through Hole | 125 °C | -40 C | 51 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | Gold | 51 | Cantilever | Single | Non Specified - Single Edge | Black | 1 | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Copper Alloy | Female | Through Hole | 125 °C | -40 C | 51 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Solder | Gold | 51 | Cantilever | Single | Non Specified - Single Edge | Black | 1 | 0.116 " | 2.95 mm | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Copper Alloy | Female | Through Hole | 125 °C | -40 C | 51 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Top Mount Opening |
