G81L0C-P Series
Manufacturer: ODU
Beta
⌘K

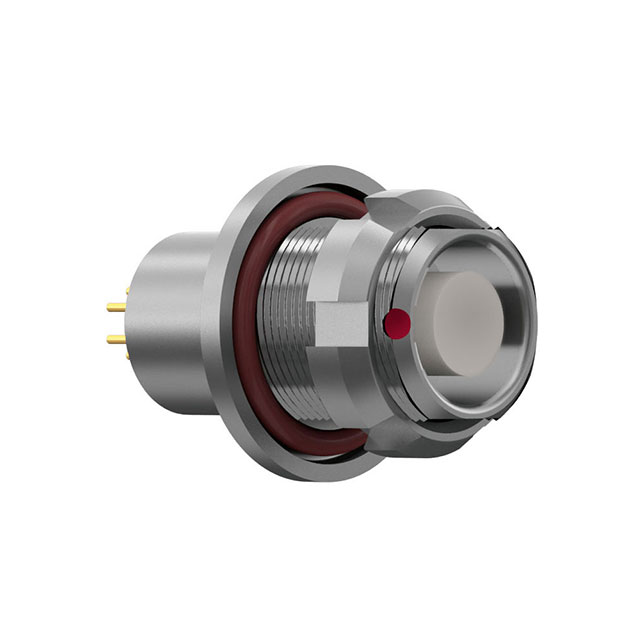

ODU MINI-SNAP RECEPT, STY 8, SZ
| Part | Insert Material | Connector Type | Applications | Fastening Type | Features | Current Rating (Amps) | Color | Mounting Feature | Contact Finish - Mating | Mounting Type | Shell Finish | Shielding | Contact Material | Orientation | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Number of Positions | Shell Material | Voltage Rating | Shell Size - Insert | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Ground | 6 A | Silver | Bulkhead - Front Side Nut | Gold | Panel Mount Through Hole | Chrome over Nickel | Unshielded | Brass | 0 | Solder | 120 °C | -40 C | Metal | 8 | Brass | 333 V | 1 | IP68 - Dust Tight Waterproof | |
Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Ground | 4 A | Silver | Bulkhead - Front Side Nut | Gold | Panel Mount | Chrome over Nickel | Shielded | Brass | 0 | 120 °C | -40 C | Metal | 14 | Brass | 1 | IP68 - Dust Tight Waterproof | |||
Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Ground | 4 A | Silver | Bulkhead - Front Side Nut | Gold | Panel Mount Through Hole | Chrome over Nickel | Unshielded | Brass | 0 | Solder | 120 °C | -40 C | Metal | 10 | Brass | 333 V | 1 | IP68 - Dust Tight Waterproof | |
Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Ground | 7.5 A | Silver | Bulkhead - Front Side Nut | Gold | Panel Mount | Chrome over Nickel | Brass | 0 | 120 °C | -40 C | Metal | 8 | Brass | 1 | IP68 - Dust Tight Waterproof | ||||
Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Ground | 12 Amps | Silver | Bulkhead - Front Side Nut | Gold | Panel Mount | Chrome over Nickel | Shielded | Brass | 0 | 120 °C | -40 C | Metal | 2 | Brass | 1 | IP68 - Dust Tight Waterproof | |||
Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Ground | 7.5 A | Silver | Bulkhead - Front Side Nut | Gold | Panel Mount | Chrome over Nickel | Brass | 0 | 120 °C | -40 C | Metal | 5 | Brass | 1 | IP68 - Dust Tight Waterproof | ||||
Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Ground | 12 Amps | Silver | Bulkhead - Front Side Nut | Gold | Panel Mount | Chrome over Nickel | Brass | 0 | 120 °C | -40 C | Metal | Brass | 1 | IP68 - Dust Tight Waterproof | |||||
Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Ground | 12 Amps | Silver | Bulkhead - Front Side Nut | Gold | Panel Mount Through Hole | Chrome over Nickel | Unshielded | Brass | 0 | Solder | 120 °C | -40 C | Metal | Brass | 500 V | 1 | IP68 - Dust Tight Waterproof | ||
Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Ground | 6 A | Silver | Bulkhead - Front Side Nut | Gold | Panel Mount Through Hole | Chrome over Nickel | Unshielded | Brass | 0 | Solder | 120 °C | -40 C | Metal | 6 | Brass | 400 V | 1 | IP68 - Dust Tight Waterproof | |
Polyetheretherketone (PEEK) | Receptacle Female Sockets | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Ground | 4 A | Silver | Bulkhead - Front Side Nut | Gold | Panel Mount | Chrome over Nickel | Shielded | Brass | 0 | 120 °C | -40 C | Metal | 10 | Brass | 1 | IP68 - Dust Tight Waterproof |
