EZC06 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

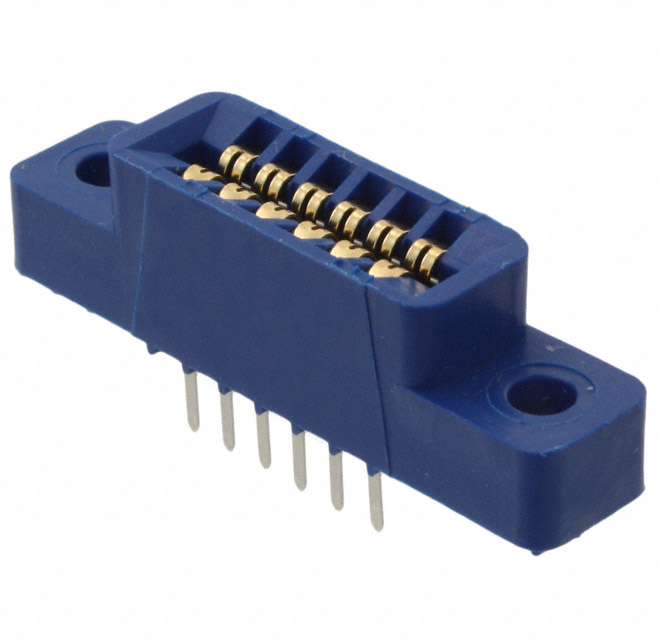

CONN EDGE DUAL FMALE 12POS 0.100
| Part | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row | Number of Positions | Termination | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Rows [custom] | Contact Type | Card Thickness | Card Thickness | Contact Finish Thickness | Contact Finish Thickness | Read Out | Contact Finish | Pitch | Pitch | Mounting Type | Gender | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.125 " | 3.18 mm | 6 | 12 | Solder | Phosphor Bronze | -65 ░C | 125 °C | Blue | 2 | Full Bellows | 1.57 mm | 0.062 in | 0.25 Ám | 10 Áin | Dual | Gold | 0.1 " | 2.54 mm | Through Hole | Female | Non Specified - Dual Edge |
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.125 " | 3.18 mm | 6 | 12 | Solder Eyelet(s) | Phosphor Bronze | -65 ░C | 125 °C | Blue | 2 | Full Bellows | 1.57 mm | 0.062 in | 0.25 Ám | 10 Áin | Dual | Gold | 0.1 " | 2.54 mm | Panel Mount | Female | Non Specified - Dual Edge |
