80111 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

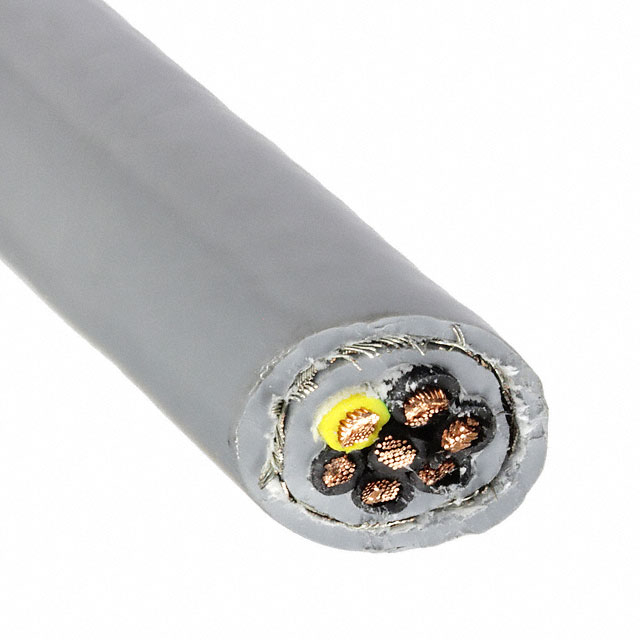

CABLE 7COND 24AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Jacket Color | Length [x] | Length [x] | Conductor Insulation | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Conductor Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | Slate | 100 ft | 30.5 m | Polyphenylene Ether (PPE) | Multi-Conductor | 0.0319 in | 0.81 mm | Polyurethane (PU) | Copper Tinned | 600 V | 5.89 mm | 0.232 in | 7 | 24 AWG | 90 °C | -50 °C | Braid |
