6280-5PG Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

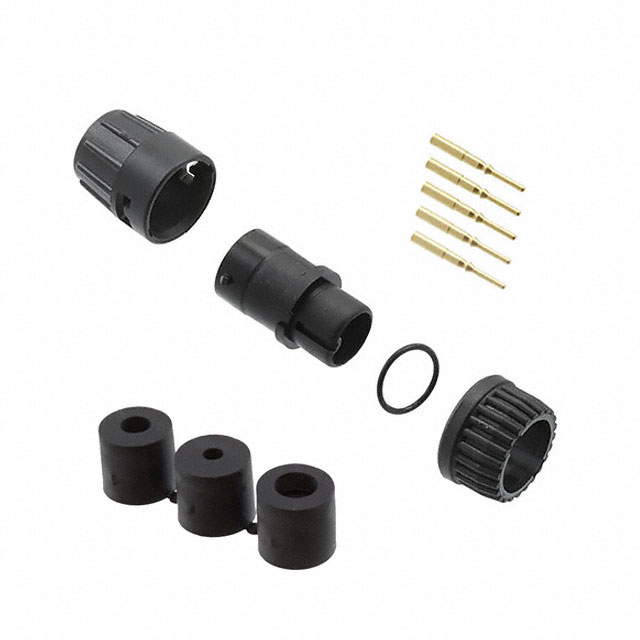

MINI-CON-X CABLE END, 5-PIN #20, MALE, CRIMP, BULK ROHS COMPLIANT: YES
| Part | Termination | Number of Positions | Fastening Type | Mounting Type | Backshell Material, Plating | Features | Contact Material | Orientation | Primary Material | Color | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Connector Type | Shielding | Voltage Rating | Current Rating (Amps) | Contact Finish - Mating | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Crimp | 5 | Bayonet Lock | Free Hanging (In-Line) | Nylon Polyamide (PA) | Backshell | Brass | Keyed | Plastic | Black | 6.35 mm | 0.22 in | 0.25 in | 5.59 mm | Automotive Communication Systems Instrumentation | 115 °C | -40 C | Weathertight | Plug Male Pins | Unshielded | 600 V | Varies by Wire Gauge | Gold | |
 SWITCHCRAFT/CONXALL | Crimp | 5 | Bayonet Lock | Free Hanging (In-Line) | Nylon Polyamide (PA) | Backshell | Brass | Keyed | Plastic | Black | Automotive Communication Systems Instrumentation | 115 °C | -40 C | Weathertight | Plug Male Pins | Unshielded | 600 V | Varies by Wire Gauge | Gold | |||||
SWITCHCRAFT/CONXALL | Crimp | 5 | Bayonet Lock | Free Hanging (In-Line) | Nylon Polyamide (PA) | Backshell | Brass | Keyed | Plastic | Black | 0.09 in | 0.14 in | 2.29 mm | Automotive Communication Systems Instrumentation | 115 °C | -40 C | Weathertight | Plug Male Pins | Unshielded | 600 V | Varies by Wire Gauge | Gold | 3.56 mm | |
SWITCHCRAFT/CONXALL | Crimp | 5 | Bayonet Lock | Free Hanging (In-Line) | Nylon Polyamide (PA) | Backshell | Brass | Keyed | Plastic | Black | 4.57 mm | 0.16 " | 0.18 " | 4.06 mm | Automotive Communication Systems Instrumentation | 115 °C | -40 C | Weathertight | Plug Male Pins | Unshielded | 600 V | Varies by Wire Gauge | Gold |
