M6141 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

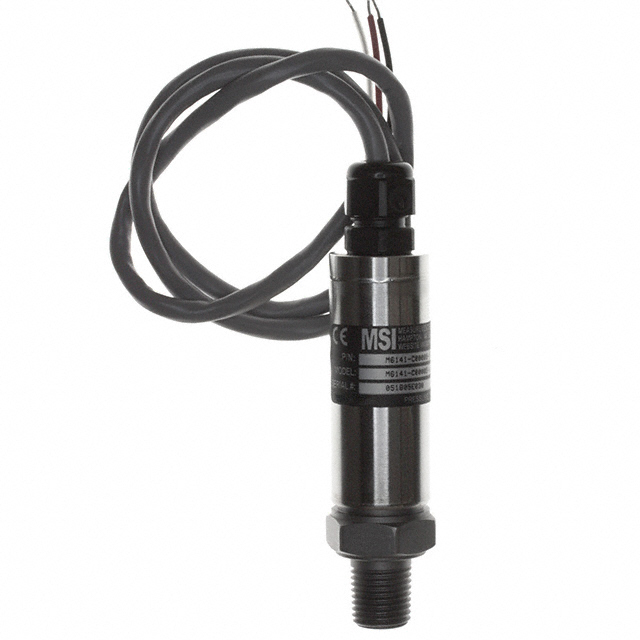

SENSOR 100PSIG 1/4NPT 1-5V 2'
| Part | Package / Case | Port Size | Port Size | Port Size | Operating Temperature [Max] | Operating Temperature [Min] | Features | Port Style | Operating Pressure | Operating Pressure | Output Type | Termination Style | Voltage - Supply [Max] | Voltage - Supply [Min] | Output [Max] | Output [Min] | Pressure Type | Maximum Pressure | Maximum Pressure | Applications | Accuracy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Cylinder | Male NPT | 0.25 " | 0.25 in | 125 °C | -40 C | Amplified Output Temperature Compensated | Threaded | 689.48 kPa | 100 PSI | Analog Voltage | Cable 2' | 30 VDC | 8 V | 5 V | 1 V | Vented Gauge | 200 PSI | 1378.95 kPa | Industrial Automation | 1 % |
