35HDLN Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

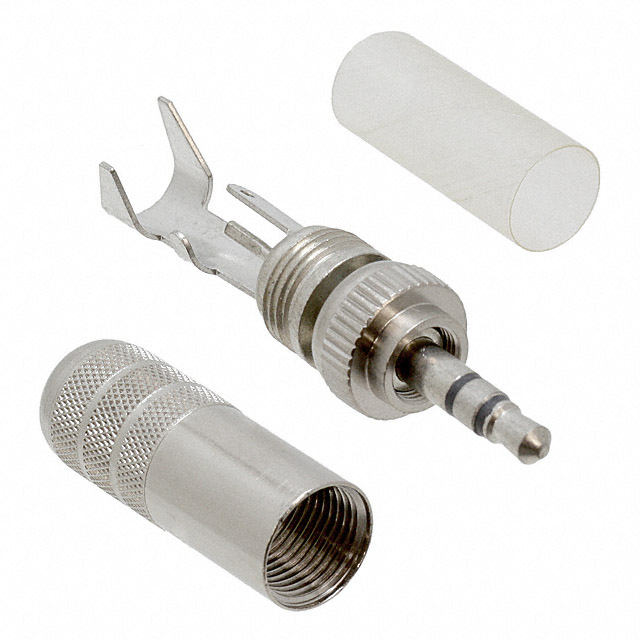

CONN PLUG STEREO 3.5MM 3COND
| Part | Includes | Contact Material | Housing Material | Current Rating (Amps) | Body Color | Voltage - Rated | Cable Opening | Cable Opening | Contact Material - Plating | Mating Length/Depth | Mating Length/Depth | Body Material | Termination | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Connector Type | Gender | Mounting Type | Actual Diameter [diameter] | Actual Diameter [diameter] | Shielding | Signal Lines | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 1 Connector 1 Handle 1 Insulator Tube | Copper Alloy | Copper Alloy | 4 A | Silver | 140 VDC 250 VAC | 7.37 mm | 0.29 in | Silver | 14.2 mm | 0.56 in | Copper Alloy | Solder Eyelet(s) | 3 | 3 | Phone Plug | Male | Free Hanging (In-Line) | 3.53 mm | 0.139 in | Unshielded | Stereo (3 Conductor TRS) | 0.125 in | 3.5 mm | 0.141 in | 85 °C | -20 ░C |
