3020-26 Series

Manufacturer: CNC Tech

Catalog

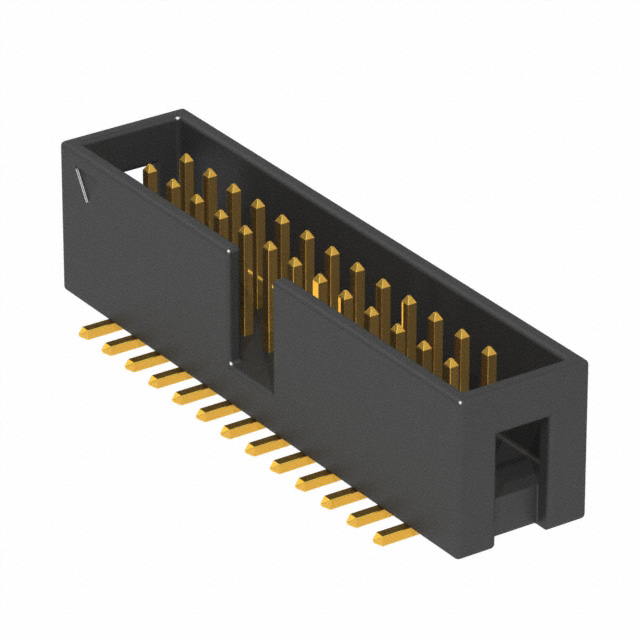

CONN HEADER R/A 26POS 2.54MM

Part	Contact Finish Thickness - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Termination	Contact Finish Thickness - Mating	Contact Shape	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Connector Type	Insulation Material	Material Flammability Rating	Shrouding	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish - Post	Contact Type	Style	Fastening Type	Insulation Color	Mounting Type	Number of Positions Loaded	Number of Rows [custom]	Features	Insulation Height	Insulation Height
CNC Tech 3020-26-0200-00	Flash	26	0.1 "	2.54 mm	8.8 mm	0.346 in	3 A	Solder	Flash	Square	Gold	0.1 in	2.54 mm	Brass	Header	Nylon 9T Polyamide (PA9T)	UL94 V-0	Shrouded - 4 Wall	0.118 in	3 mm	-40 C	105 ░C	250 VAC	Gold	Male Pin	Board to Cable/Wire	Push-Pull	Black	Right Angle Through Hole	All	2	Keying Slot
CNC Tech 3020-26-0300-00	Flash	26	0.1 "	2.54 mm			3 A	Solder	Flash	Square	Gold	0.1 in	2.54 mm	Brass	Header	Nylon 9T Polyamide (PA9T)	UL94 V-0	Shrouded - 4 Wall			-40 C	105 ░C		Gold	Male Pin	Board to Cable/Wire	Push-Pull	Black	Surface Mount	All	2	Keying Slot	0.354 in	9 mm
CNC Tech 3020-26-0300-00-TR	Flash	26	0.1 "	2.54 mm			3 A	Solder	Flash	Square	Gold	0.1 in	2.54 mm	Copper Alloy	Header	Nylon 9T Polyamide (PA9T)	UL94 V-0	Shrouded - 4 Wall			-40 C	105 ░C		Gold	Male Pin	Board to Cable/Wire	Push-Pull	Black	Surface Mount	All	2	Keying Slot Pick and Place	0.354 in	9 mm
CNC Tech 3020-26-0100-00	Flash	26	0.1 "	2.54 mm			3 A	Solder	Flash	Square	Gold	0.1 in	2.54 mm	Brass	Header	Nylon 9T Polyamide (PA9T)	UL94 V-0	Shrouded - 4 Wall	0.118 in	3 mm	-40 C	105 ░C	250 VAC	Gold	Male Pin	Board to Cable/Wire	Push-Pull	Black	Through Hole	All	2	Keying Slot	0.354 in	9 mm
