FKP 1 Series
Manufacturer: WIMA
Beta
⌘K

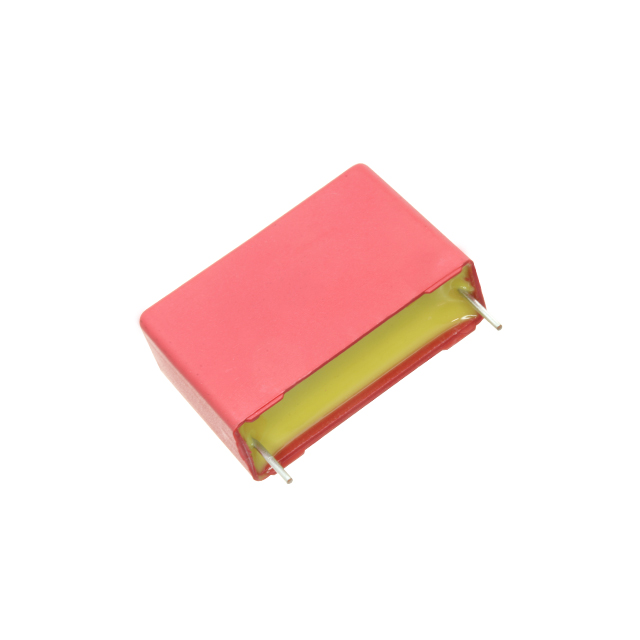

FILM CAPACITORS FKP 1 1000 PF 2000 VDC 7X14X18 PCM 15
| Part | Voltage Rating - AC | Voltage Rating - DC | Voltage Rating - DC | Termination | Package / Case | Dielectric Material | Applications | Ratings | Capacitance | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Lead Spacing | Lead Spacing | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
600 V | 1250 V | 1.25 kV | PC Pins | Radial | Polypropylene (PP) Metallized | Automotive High Frequency Switching High Pulse DV/DT | AEC-Q200 | 2200 pF | 5 % | -55 C | 105 ░C | Through Hole | 11 mm | 0.433 in | 15 mm | 0.591 in | 0.709 in | 5 mm | 18 mm | 0.197 " | ||
250 V | 400 V | PC Pins | Radial | Polypropylene (PP) Metallized | Automotive DV/DT High Frequency High Frequency Switching High Pulse High Pulse DV/DT Switching | AEC-Q200 | 0.15 ÁF | 10 % | -55 C | 100 °C 105 ░C | Through Hole | 0.827 " | 27.5 mm | 1.083 in | 21 mm | |||||||
