MEAS 44000 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

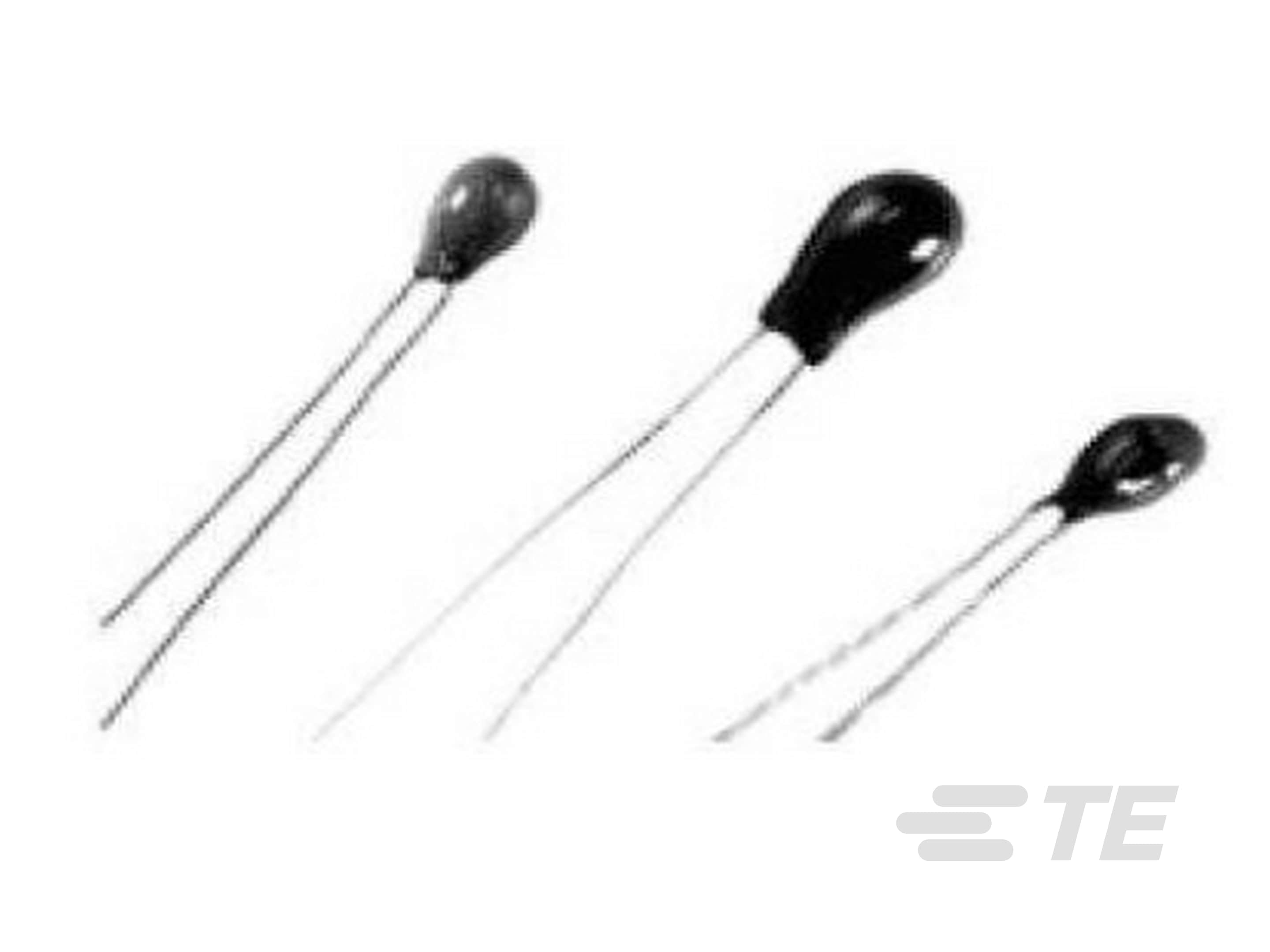

44030RC-BP,THERM,ROHS
| Part | Resistance in Ohms @ 25°C | Length - Lead Wire [x] | Length - Lead Wire [x] | Package / Case | B25/85 | Operating Temperature [Min] | Operating Temperature [Max] | B Value Tolerance | Mounting Type | Resistance Tolerance | Resistance in Ohms @ 25°C | B0/50 | Length - Lead Wire | Length - Lead Wire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3k | 2.99 in | 76 mm | Bead Epoxy | 3976 K | -40 C | 150 °C | 0.4 % | Free Hanging | |||||
 TE Connectivity AMP Connectors | ||||||||||||||
TE Connectivity AMP Connectors | 10k | 2.99 in | 76 mm | Bead Epoxy | 3978 K | -40 C | 150 °C | Free Hanging | 0.4 % | |||||
TE Connectivity AMP Connectors | 300k | 2.99 in | 76 mm | Bead Epoxy | 4462 K | -40 C | 150 °C | 0.8 % | Free Hanging | |||||
TE Connectivity AMP Connectors | 2.99 in | 76 mm | Bead Epoxy | 2873 K | -40 C | 150 °C | 0.8 % | Free Hanging | 100 Ohms | |||||
TE Connectivity AMP Connectors | 5k | 2.99 in | 76 mm | Bead Epoxy | 3976 K | -40 C | 150 °C | 0.4 % | Free Hanging | |||||
 TE Connectivity AMP Connectors | Bead | 3943 K | -40 C | 150 °C | 0.4 % | Free Hanging | 0.1 °C | 30 kOhms | 3810 K | 3 in | 76.2 mm | |||
TE Connectivity AMP Connectors | 10k | 2.99 in | 76 mm | Bead Epoxy | 3694 K | -40 C | 150 °C | 0.8 % | Free Hanging | |||||
TE Connectivity AMP Connectors | ||||||||||||||
 TE Connectivity AMP Connectors | 2.99 in | 76 mm | Bead Epoxy | -40 C | 150 °C | Free Hanging | 100 Ohms |
