052089 Series

Manufacturer: Molex

Catalog

CONN FPC TOP 24POS 1MM R/A

Part	FFC, FCB Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Locking Feature	Number of Positions	Connector/Contact Type	Mounting Type	Height Above Board	Height Above Board	Material Flammability Rating	Contact Finish	Flat Flex Type	Mating Cycles	Current Rating (Amps)	Pitch [x]	Pitch [x]	Contact Material	Cable End Type	Voltage Rating	Actuator Material	Number of Positions
Molex 0520892419	0.3 mm	85 °C	-40 °C	Kinked Pin	Slide Lock	24	Contacts Top	Through Hole Right Angle	0.118 in	3 mm	UL94 V-0	Tin Bismuth	FPC	20	0.5 A	0.039 in	1 mm	Phosphor Bronze	Tapered	50 V	Polyester
Molex 0520890619	0.3 mm	85 °C	-40 °C	Kinked Pin	Slide Lock	6	Contacts Top	Through Hole Right Angle	0.118 in	3 mm	UL94 V-0	Tin Bismuth	FPC	20	0.5 A	0.039 in	1 mm	Phosphor Bronze	Tapered	50 V	Polyester
Molex 0520892719	0.3 mm	85 °C	-40 °C	Kinked Pin	Slide Lock	27	Contacts Top	Through Hole Right Angle	0.118 in	3 mm	UL94 V-0	Tin Bismuth	FPC	20	0.5 A	0.039 in	1 mm	Phosphor Bronze	Tapered	50 V	Polyester
Molex 0520892519	0.3 mm	85 °C	-40 °C	Press-Fit	Slide Lock		Contacts Top	Through Hole Right Angle	0.118 in	3 mm	UL94 V-0	Tin Bismuth	FPC	20	0.5 A	0.039 in	1 mm	Phosphor Bronze	Tapered	50 V	Polyester
Molex 0520890419	0.3 mm	85 °C	-40 °C	Kinked Pin	Slide Lock	4	Contacts Top	Through Hole Right Angle	0.118 in	3 mm	UL94 V-0	Tin Bismuth	FPC	20	0.5 A	0.039 in	1 mm	Phosphor Bronze	Tapered	50 V	Polyester
Molex 0520891619	0.3 mm	85 °C	-40 °C	Kinked Pin	Slide Lock		Contacts Top	Through Hole Right Angle	0.118 in	3 mm	UL94 V-0	Tin Bismuth	FPC	20	0.5 A	0.039 in	1 mm	Phosphor Bronze	Tapered	50 V	Polyester	16
Molex 0520893019	0.3 mm	85 °C	-40 °C	Kinked Pin	Slide Lock	30	Contacts Top	Through Hole Right Angle	0.118 in	3 mm	UL94 V-0	Tin Bismuth	FPC	20	0.5 A	0.039 in	1 mm	Phosphor Bronze	Tapered	50 V	Polyester

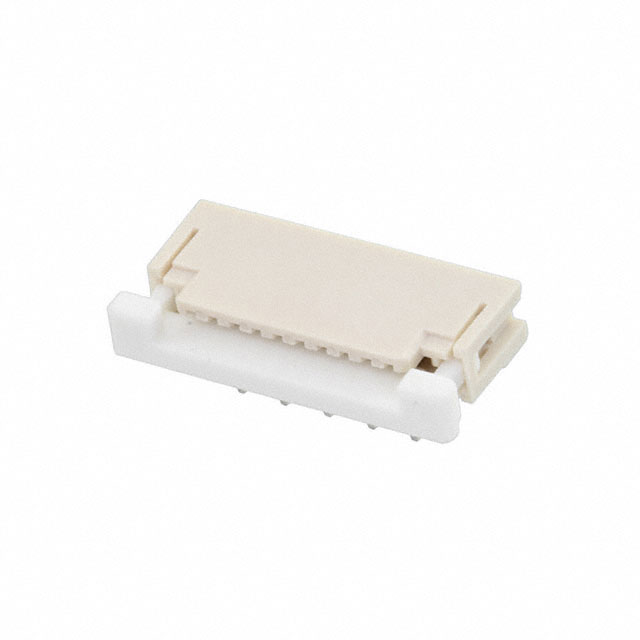

Molex 0520891019	0.3 mm	85 °C	-40 °C	Kinked Pin	Slide Lock	10	Contacts Top	Through Hole Right Angle	0.118 in	3 mm	UL94 V-0	Tin Bismuth	FPC	20	0.5 A	0.039 in	1 mm	Phosphor Bronze	Tapered	50 V	Polyester
Molex 0520892119	0.3 mm	85 °C	-40 °C	Kinked Pin	Slide Lock	21	Contacts Top	Through Hole Right Angle	0.118 in	3 mm	UL94 V-0	Tin Bismuth	FPC	20	0.5 A	0.039 in	1 mm	Phosphor Bronze	Tapered	50 V	Polyester
Molex 0520892819	0.3 mm	85 °C	-40 °C	Kinked Pin	Slide Lock	28	Contacts Top	Through Hole Right Angle	0.118 in	3 mm	UL94 V-0	Tin Bismuth	FPC	20	0.5 A	0.039 in	1 mm	Phosphor Bronze	Tapered	50 V	Polyester
