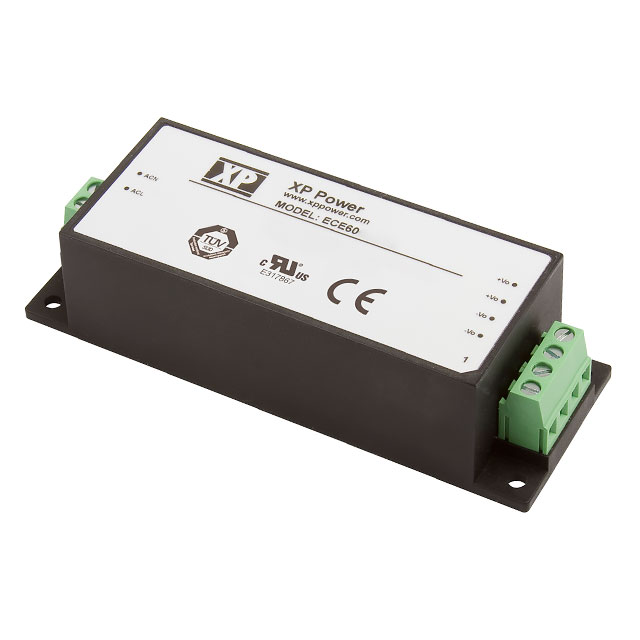

ECE60 Series
Manufacturer: XP Power
Beta
⌘K

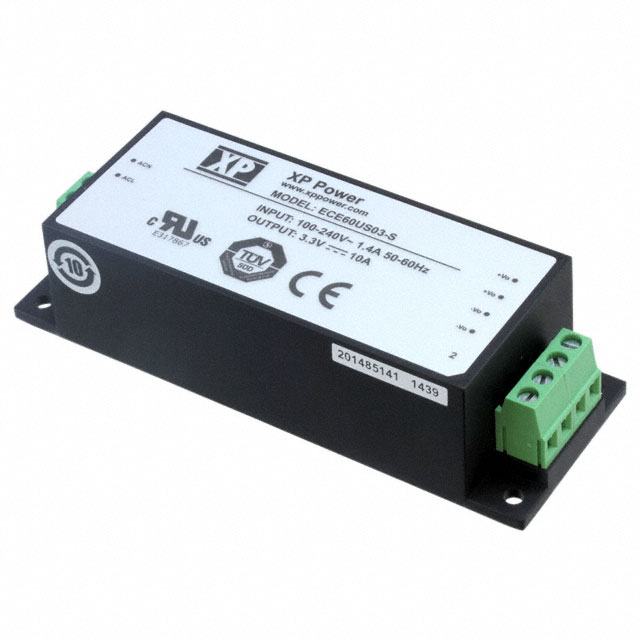

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 33 W, 3.3 VDC, 10 A
| Part | Minimum Load Required | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Input Type | Voltage - Output 1 | Current - Output (Max) [Max] | Number of Outputs | Voltage - Isolation | Applications | Efficiency | Approval Agency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Features | Standard Number | Power (Watts) | Current - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Type | Mounting Type | Voltage - Output 1 [custom] | Load Regulation | Line Regulation | Package / Case | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 264 VAC | 85 VAC | AC | 3.3 V | 10 A | 1 | 3000 V | ITE (Commercial) | 79 % | CB TUV UL | 4.45 in | 113 mm | 1.12 " | 1.57 " | 28.5 mm | 40 mm | Universal Input | 62368-1 | 33 W | |||||||||||||
 XP Power | 24 V | 1 | 3000 V | ITE (Commercial) | 89 % | 4.09 in | 104 mm | 1.12 " | 1.57 " | DC Input Capable Universal Input | 62368-1 | 60 W | 2.5 A | 28.5 mm | 40 mm | Enclosed | Chassis Mount | |||||||||||||||
XP Power | 264 VAC | 85 VAC | AC | 1.67 A | 1 | 3000 V | ITE (Commercial) | 88 % | CB TUV UL | 4.45 in | 113 mm | 1.12 " | 1.57 " | 28.5 mm | 40 mm | Universal Input | 62368-1 | 60 W | 36 V | |||||||||||||

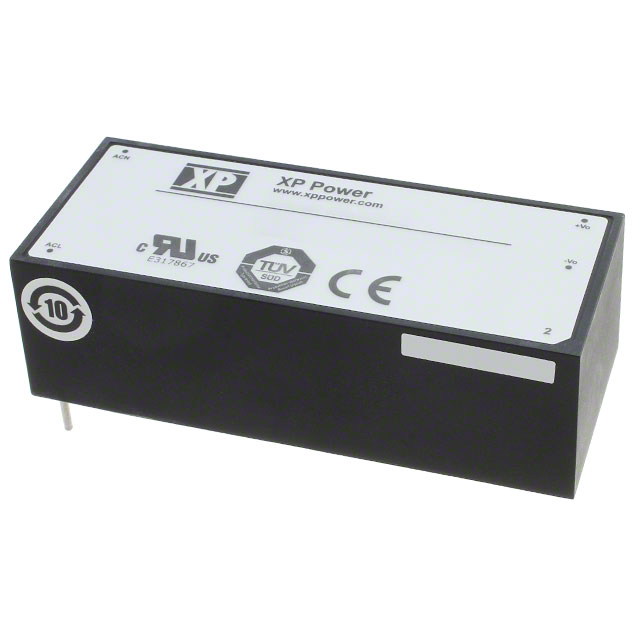

 XP Power | 48 V | 1.25 A | 1 | ITE (Commercial) | 86 % | CSA TUV UL | 3.6 " | 91.4 mm | 1.1 in | 1.5 " | 28 mm | 38.1 mm | Universal Input | 62368-1 | 60 W | Enclosed | Through Hole | ±1% | 0.5 % | 4-DIP Module | 85 VAC 120 VDC | 264 VAC 370 VDC | ||||||||||
 XP Power | 12 V | 1 | 3000 V | ITE (Commercial) | 87 % | 4.09 in | 104 mm | 1.12 " | 1.57 " | DC Input Capable Universal Input | 62368-1 | 60 W | 5 A | 28.5 mm | 40 mm | Enclosed | Chassis Mount | |||||||||||||||
 XP Power | 264 VAC | 85 VAC | AC | 24 V | 2.5 A | 1 | 3000 V | ITE (Commercial) | 89 % | CB TUV UL | 4.45 in | 113 mm | 1.12 " | 1.57 " | 28.5 mm | 40 mm | Universal Input | 62368-1 | 60 W | |||||||||||||

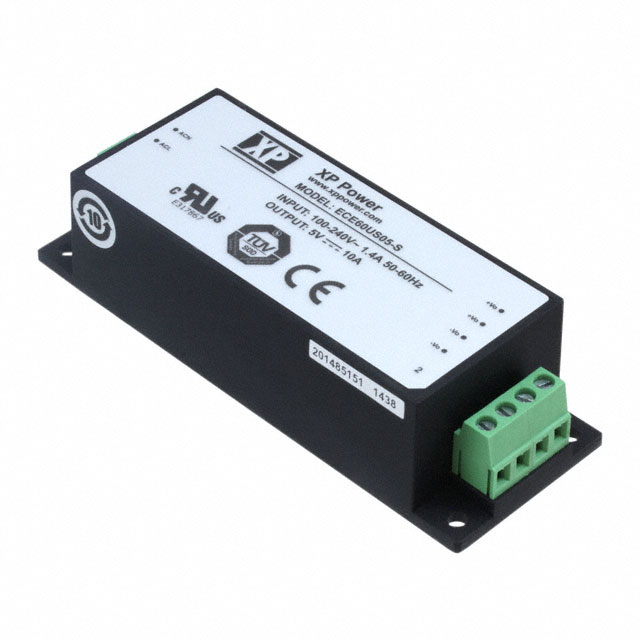

 XP Power | 5 V | 1 | 3000 V | ITE (Commercial) | 83 % | 4.09 in | 104 mm | 1.12 " | 1.57 " | DC Input Capable Universal Input | 62368-1 | 50 W | 10 A | 28.5 mm | 40 mm | Enclosed | Chassis Mount | |||||||||||||||
 XP Power | 3.3 V | 1 | 3000 V | ITE (Commercial) | 79 % | 4.09 in | 104 mm | 1.12 " | 1.57 " | DC Input Capable Universal Input | 62368-1 | 33 W | 10 A | 28.5 mm | 40 mm | Enclosed | Chassis Mount | |||||||||||||||
XP Power | 264 VAC | 85 VAC | AC | 12 V | 1 | 3000 V | ITE (Commercial) | 87 % | CB TUV UL | 4.45 in | 113 mm | 1.12 " | 1.57 " | 28.5 mm | 40 mm | Universal Input | 62368-1 | 60 W | 5 A | |||||||||||||

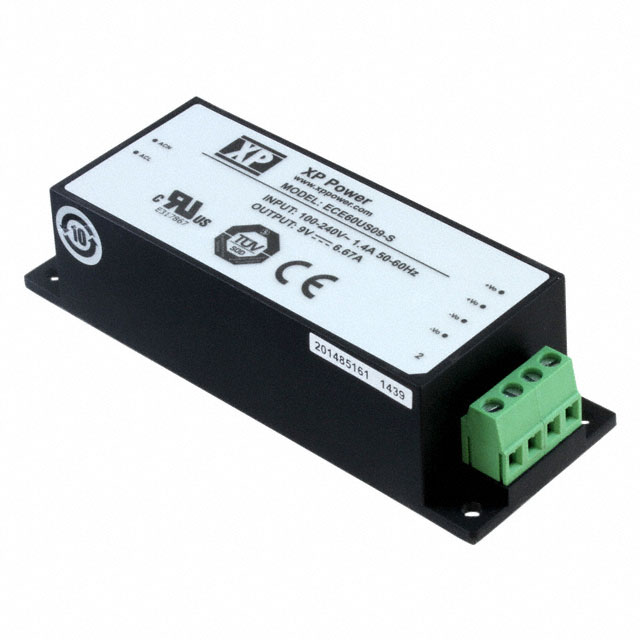

 XP Power | 9 V | 1 | 3000 V | ITE (Commercial) | 87 % | 4.09 in | 104 mm | 1.12 " | 1.57 " | DC Input Capable Universal Input | 62368-1 | 60 W | 6.67 A | 28.5 mm | 40 mm | Enclosed | Chassis Mount |
