FN352Z Series

Catalog

LINE FILTER 250VAC 20A CHASS MNT

Part	Voltage - Rated AC	Frequency - Operating	Current	Mounting Type	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Termination Style	Configuration	Applications
TE Connectivity AMP Connectors FN352Z-20-29	250 V	DC ~ 400Hz	20 A	Chassis Mount	Single Phase	85 °C	-25 °C	3.5 mH	Terminal Block	Three Stage	General Purpose

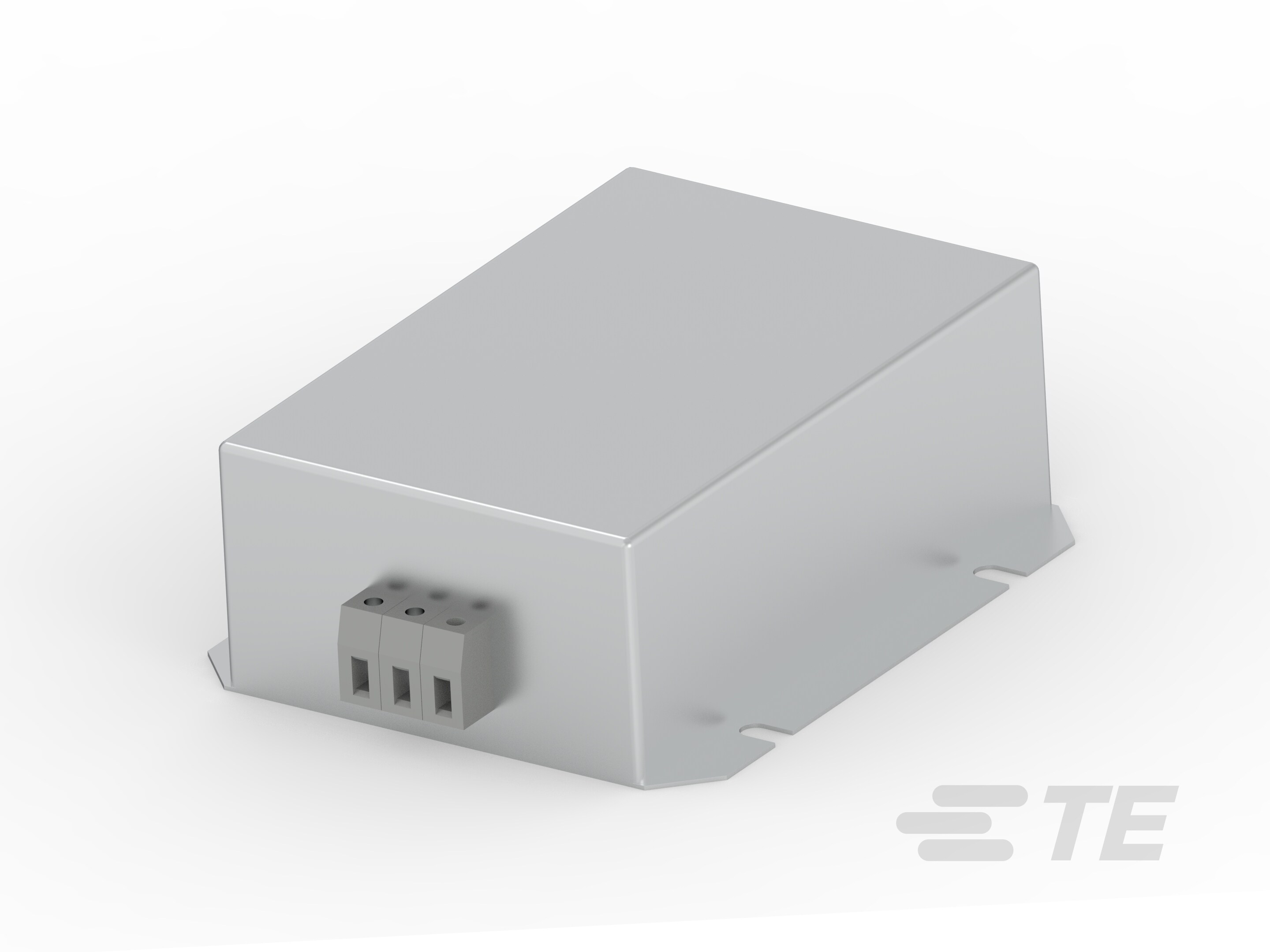

TE Connectivity AMP Connectors FN352Z-10-29	250 V	DC ~ 400Hz	10 A	Chassis Mount	Single Phase	85 °C	-25 °C	5 mH	Terminal Block	Three Stage	General Purpose
TE Connectivity AMP Connectors FN352Z-10-29	250 V	DC ~ 400Hz	10 A	Chassis Mount	Single Phase	85 °C	-25 °C	5 mH	Terminal Block	Three Stage	General Purpose

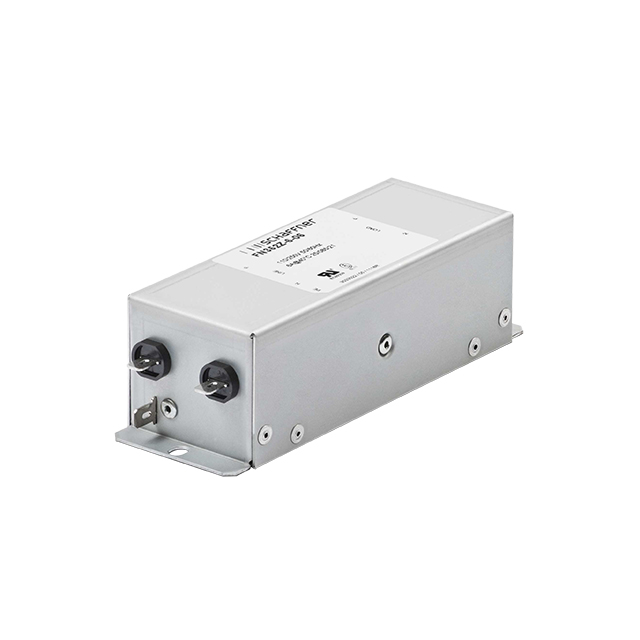

TE Connectivity AMP Connectors FN352Z-6-06	250 V	DC ~ 400Hz	6 A	Chassis Mount	Single Phase	85 °C	-25 °C	3 mH	Quick Connect	Two Stage	General Purpose
TE Connectivity AMP Connectors FN352Z-6-06	250 V	DC ~ 400Hz	6 A	Chassis Mount	Single Phase	85 °C	-25 °C	3 mH	Quick Connect	Two Stage	General Purpose
TE Connectivity AMP Connectors FN352Z-20-29	250 V	DC ~ 400Hz	20 A	Chassis Mount	Single Phase	85 °C	-25 °C	3.5 mH	Terminal Block	Three Stage	General Purpose
