769 Series
Manufacturer: WAGO Corporation
Beta
⌘K

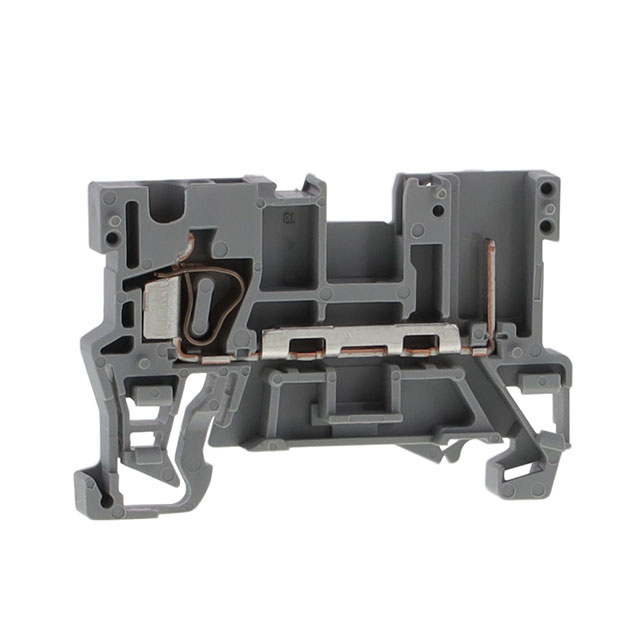

1-CONDUCTOR/1-PIN CARRIER TERMIN
| Part | Stripping Length [Min] | Stripping Length [Max] | Material - Insulation | Number of Positions | Voltage - IEC | Number of Levels | Termination Style | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Current - IEC | Terminal - Width [y] | Color | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WAGO Corporation | 8 mm | 9 mm | Nylon 6/6 Polyamide (PA66) | 1 | 500 V | 1 | Push In Spring | 28 AWG | 12 AWG | 32 A | 5 mm | Gray | 0.08 mm² | 4 mm² | Feed Through |
