957226 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

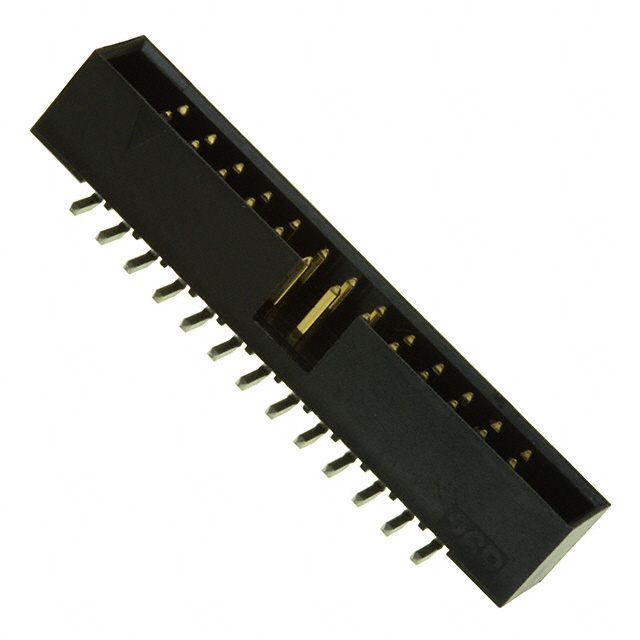

CONN HEADER SMD 26POS 2MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Number of Positions Loaded | Connector Type | Shrouding | Contact Type | Contact Finish - Mating | Insulation Color | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Contact Shape | Number of Rows [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Pitch - Mating | Pitch - Mating | Features | Fastening Type | Mounting Type | Material Flammability Rating | Contact Finish - Post | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 39.4 çin | 1 çm | 5.6 mm | 0.22 in | All | Header | Shrouded - 4 Wall | Male Pin | Gold | Black | Flash | 2 mm | 0.079 in | 26 | Square | 2 | Solder | -40 C | 105 ░C | Thermoplastic | 0.079 " | 2 mm | Keying Slot | Push-Pull | Surface Mount | UL94 V-0 | Tin | Copper Alloy |
