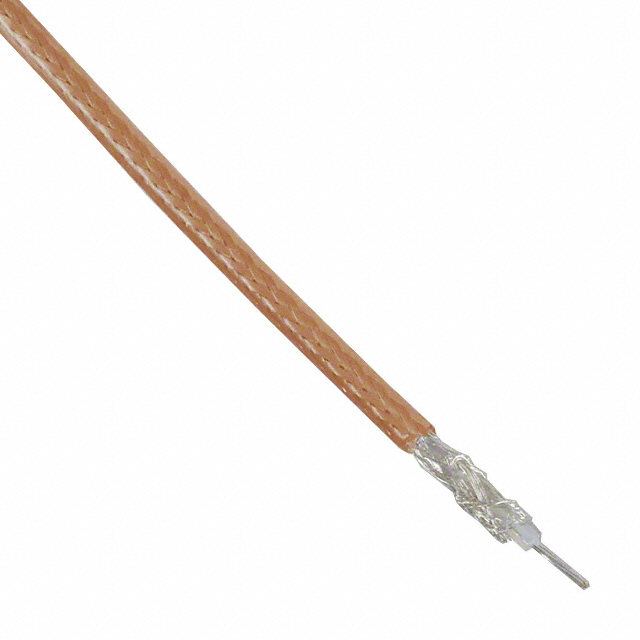

9316 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

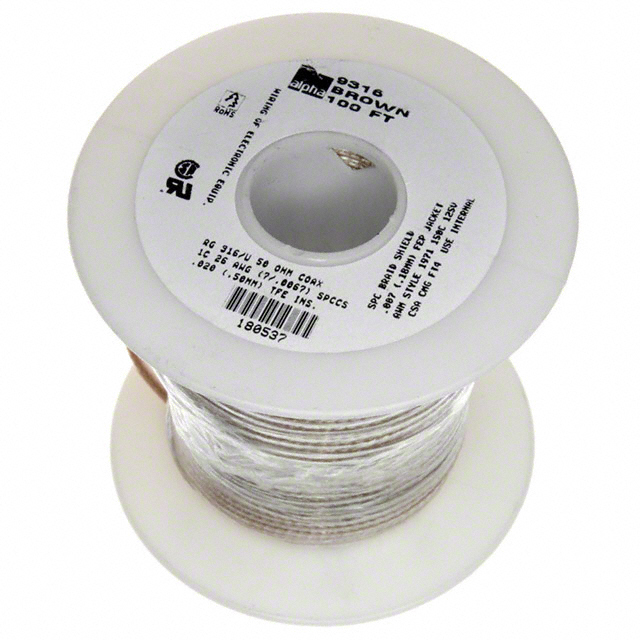

CABLE COAXIAL RG316 25AWG 100'
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Conductor Strand [diameter] | Conductor Strand [custom] | Jacket (Insulation) Material | Shield Coverage [custom] | Shield Material | Cable Type | Length [x] | Length [x] | Wire Gauge | Impedance | Shield Type | VoP, Velocity of Propagation | Jacket Color | Cable Group | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 2.48 mm | 0.098 in | 1.52 mm | 0.06 in | Copper Covered Silver Coated Steel | 0.0067 in | 7 | Fluorinated Ethylene-Propylene (FEP) | 93 % | Copper Silver Coated | Coaxial | 100 ft | 30.48 m | 25 AWG | 50 Ohms | Braid | 70 | Brown | RG-316 | Tetrafluoroethylene (TFE) |
